Duplex Single Model Optic Fiber Adapter With FLANGE PC Magenta Color
Product Description
Product Description
Duplex Singlemodel with FLANGE PC Magenta Color Duplex fiber fiber optic adapter Up-down Coupler
Low insertion loss, high return loss Good compatibility High precision of mechanical dimensions High reliability & stability Ceramic or Bronze Sleeve APC,UPC optional
Type
TF Fiber Adaptor LC
Insertion Loss(dB)
SM<0.2dB MM<0.1dB
Repeatability(dB)
≤ 0.1dB
Durability
1000times
Certification
UL, CE
Mechanical Durability
≤ 0.2dB (500cycles,dB)
Temperature Range
-40~+85℃
Feature:
- No special tools needed when installed
- Without any gluing and polishing process
- Can be made on-site without splicing connectors
- Only 30 seconds needed to learn the process of installation
- Good high temperature performance and good sealing
- Easy installation, quick and fast in the assembly field
- High return loss and low insertion loss
Application:
- Distribution Frames & Patch Panels
- Fiber Optic Patch Cord & Pigtail
- Telecommunication Networks
- Data Processing Networks
- FTTH (Fiber To The Home)
- Local Area Network (LAN)
- Test Equipment.
- CATV & CCTV

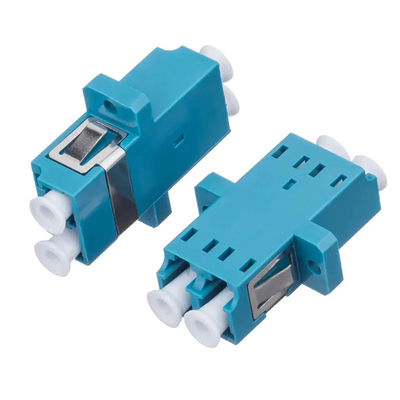

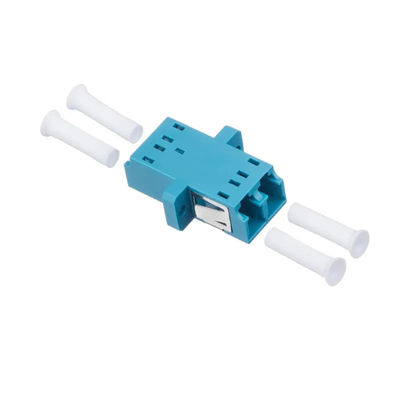

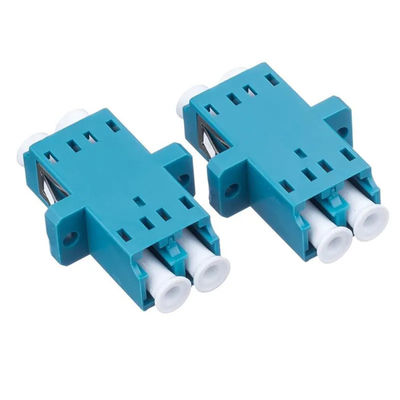

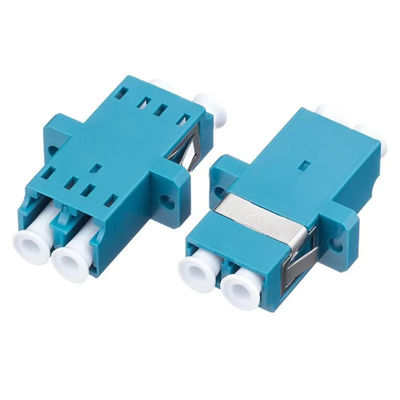

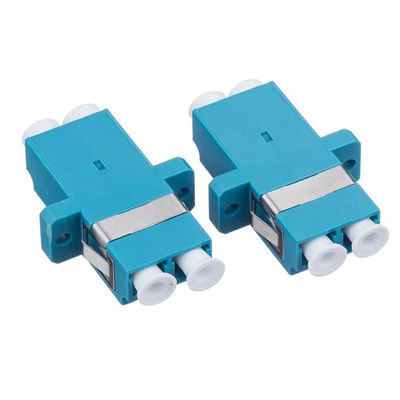

Product Pictures
