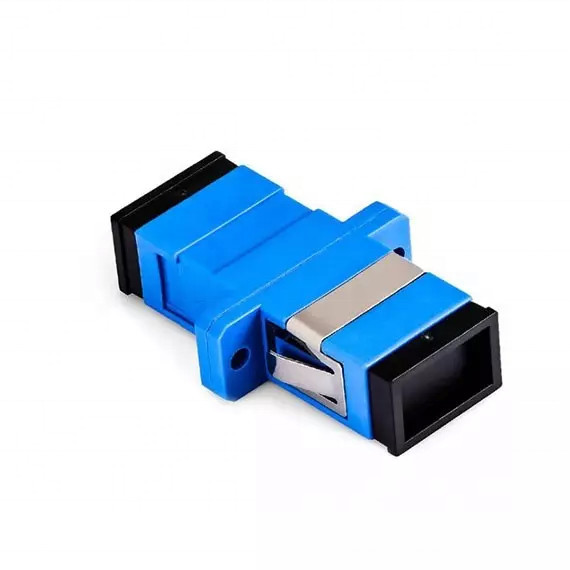

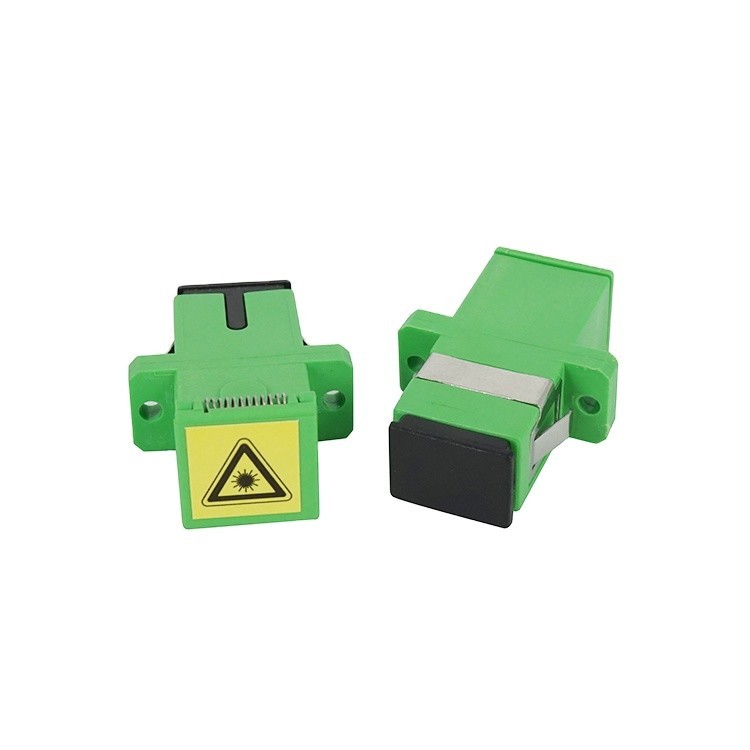

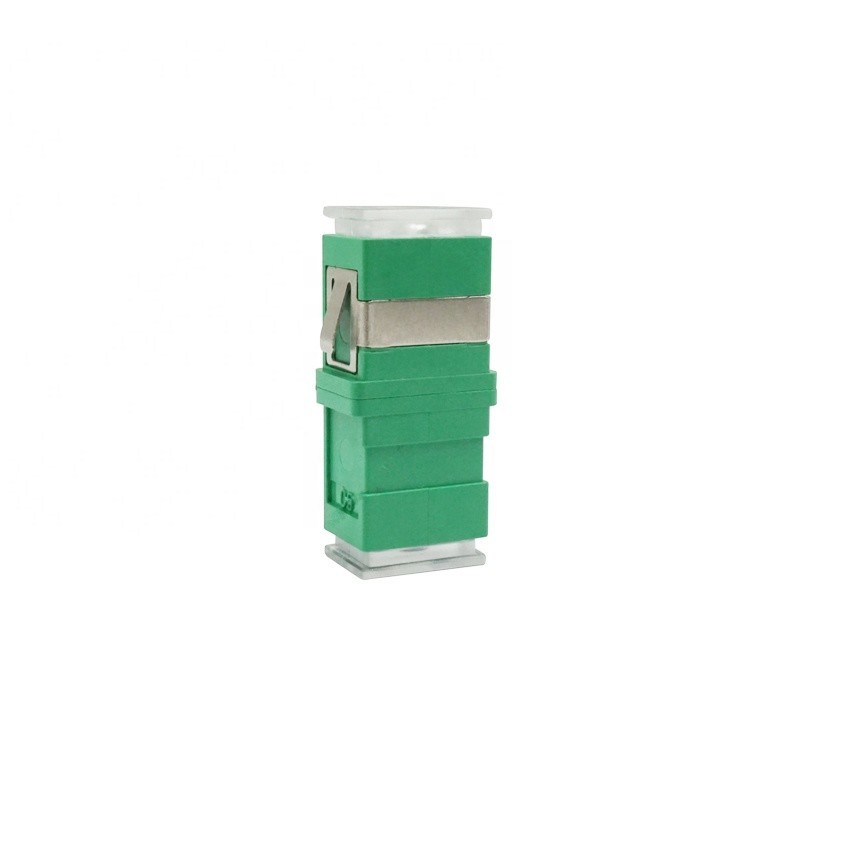

Name: SC APC UPC Fiber Optic Adapter Single Mode Simplex With Dust Cap
Brand: ODM/OEM
SKU: SC apc adapter
Price: 0.08 USD
Availability: InStock
Rating: 4.7 (147 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: SC Apc, SC

Product Name: Fiber Optic Cable Adapter

Fiber Type: Singlemode

Feature: Simplex

Color: Green

Material: PC

Operating Temperature: - 40 To + 75

Storage Temperature: - 40 To + 75

Insertion Loss: ≤0.3dB

Durability: ≥1000 Times

High Light:

UPC Fiber Optic Adapter

Fiber Optic Adapter Single Mode

Simplex single mode fiber adapter

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: SC apc adapter

Payment & Shipping Terms

Packaging Details: Carton box

Payment Terms: T/T, Western Union

Gallery

SC APC UPC Fiber Optic Adapter Single Mode Simplex With Dust Cap

Product Description

Special dust cap SC APC UPC fiber optic adapter fiber optic coupler from China factory

SC-APC fiber adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
SC-APC fiber optic adapters are flange type in plastic housing; Single mode adapters are with Ceramic sleeve while multimode fiber adapters are with bronze sleeve.

Feature

1. Low insertion loss, high return loss
2. Good compatibility
3. High precision of mechanical dimensions
4. High reliability & stability
5. Ceramic or Bronze Sleeve
6. PCAPCUPC optional
7. Simplex / Duplex

Application

1. Local Area Network
2. CATV System
3. Telecommunication Networks
4. Equipment Test

Technical data

Parameter for the adapter
Parameter	unity	description
Parameter	unity			SM / PC	SM / APC	MM
Mango		Zirconia	Zirconia	Phosphor bronze
Operation Wavelength	Nm	1310 or 1550			850
Insertion loss	DB	0.2	0.2	0.2
Durability Connection	Times	1000 coupling
Operating Temperature	(° C)	-40 ~ + 80
Storage temperature	(° C)	-40 ~ + 85
Relative humidity	%	95

Detailed performance
