SC UPC Fiber Optic Adapter Single Mode Duplex Blue Color PC Material

1000 pieces
MOQ
$0.16/pieces
Price
SC UPC Fiber Optic Adapter Single Mode Duplex Blue Color PC Material
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Adapter, Sc/apc SM DX
Number Of Conductors: 2
Color: Green/blue
Operating Temperature: - 40 To + 75 Degrees
Material: PC
Highlight:

SC UPC Fiber Optic Adapter

,

Blue Fiber Optic Adapter

,

Duplex sc upc adapter
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: SC UPC
Payment & Shipping Terms
Packaging Details: 50 PCS/small plastic bags
Payment Terms: T/T, Western Union
Product Description
SC UPC fiber optic adapter single mode duplex optical adaptors
Product Description

SC-UPC fiber adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

SC-UPC fiber optic adapters are flange type in plastic housing; Single mode adapters are with Ceramic sleeve while multimode fiber adapters are with bronze sleeve.



Parameter Unit LC, SC, FC, ST
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating Temperature °C -40~75
Storage Temperature °C -45~85

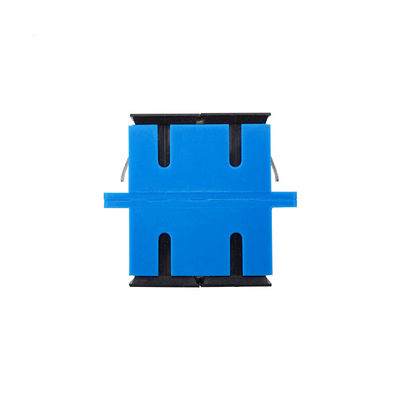

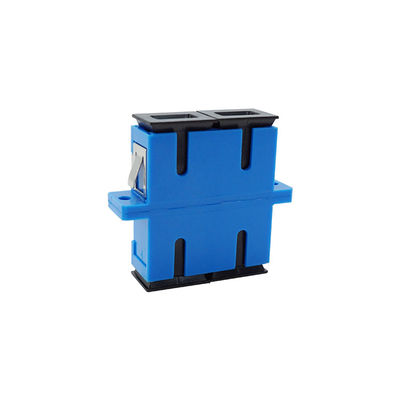

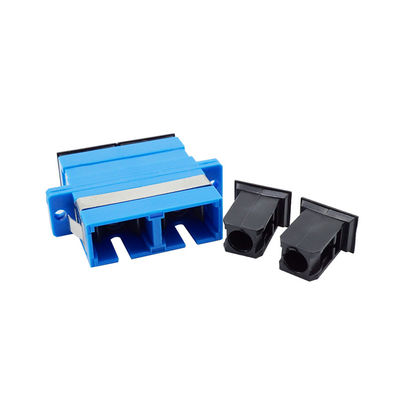

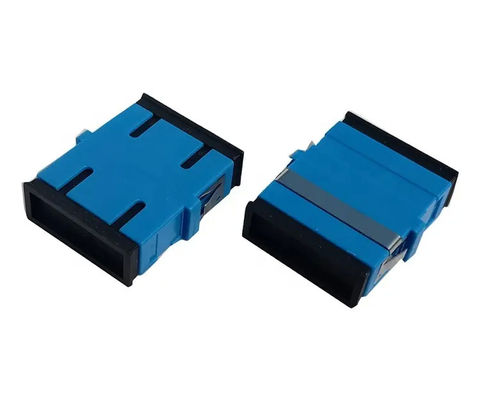

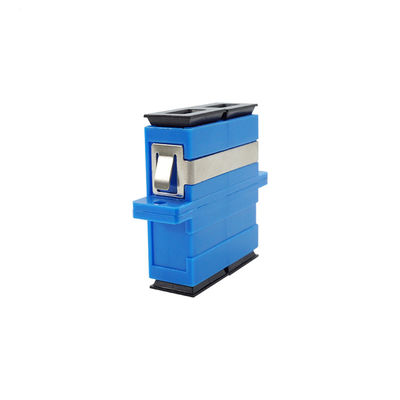

Detailed Images
SC UPC Fiber Optic Adapter Single Mode Duplex Blue Color PC Material 0
SC UPC Fiber Optic Adapter Single Mode Duplex Blue Color PC Material 1
Features

1. Low insertion loss, high return loss

2. Good compatibility

3. High precision of mechanical dimensions

4. High reliability & stability

5. Ceramic or Bronze Sleeve

6. PCAPCUPC optional

7. Simplex / Duplex

Application

1. Local Area Network

2. CATV System

3. Telecommunication Networks

4. Equipment Test
