Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout

10 pieces
MOQ
$1.25 - $15.00/pieces
Price
Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTT,Testing Equipment
Warranty Time: 3
Network: Wired LAN, ONVIF, 4g, 3G, Fiber
Product Name: 12 Core 0.9mm Fanout MPO - LC
Cores: 12 Cores
Jacket Color: 12 Color
Fiber Type: OS2, OM1, OM2, OM3, OM4
Length: 0.3meter Or Customized
Inserion Loss: <0.5db
Return Loss: >50dB
Standards: IEC-61754-7& EIA/TIA-604-5
Certifaction: ISO9001, ROHS
Application: Telecommunication/Networking
High Light:

Fiber Cable Assembly 12Core

,

Fiber Cable Assembly 0.9mm

,

MPO fiber cable 12 core

Basic Infomation
Place of Origin: China
Brand Name: OEM
Model Number: MPO-LC
Payment & Shipping Terms
Packaging Details: Individual box or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Day
Product Description
Product Description
12 Core MPO Male - LC Fiber 0.9mm Fanout Patch cord 0.3mm MPO patch cable assemblies

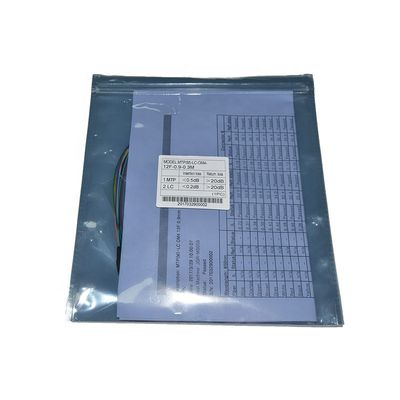

Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout 0



APPLICATION

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures



FEATURES

Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

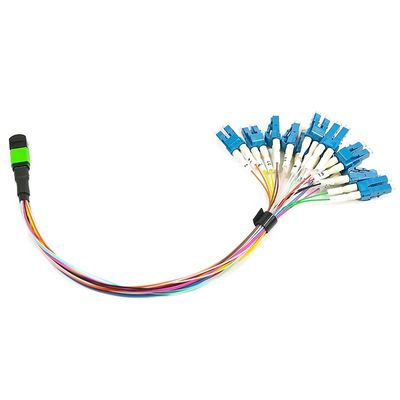

Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout 1

MPO/MTP-LC

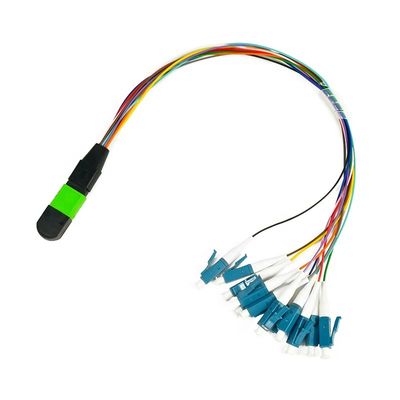

Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout 2

MPO/MTP-SC

Product Parameters
Performance Level


Standard

Elite

Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60


24F/APC
≤0.75
≥60
≤0.35
≥60


48F/APC
≤0.75
≥60



MM
12F/PC
≤0.50
≥20
≤0.35
≥20


24F/PC
≤0.50
≥20
≤0.35
≥20


48F/PC
≤0.50
≥20


LC/SC/FC/ST
SM

≤0.30
≥60
≤0.10
≥60


UPC
≤0.20
≥50
≤0.10
≥50

MM
PC
≤0.20
≥30
≤0.10
≥30

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.

Mechanical Properties



Item

Criteria
Conformance
△IL After 50 Matings
MPO/MTP
≤0.3dB
GR-1435
△IL After 500 Matings
LC/SC/FC/ST
≤0.2dB
IEC 61300-2-2
Min Bend Radius (Dynamic)

20*OD (Cable Diameter)

Min Bend Radius (Static )

15*OD (Cable Diameter)

Environment Conditions



Item
Criteria
Conformance

Operation Temperature
-40~60°C
IEC 61753-1

Storage Temperature
-45~85°C

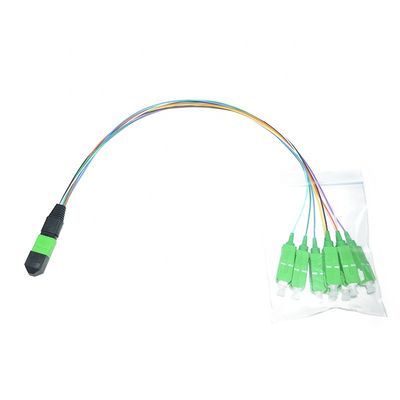

Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout 3
Company Profile

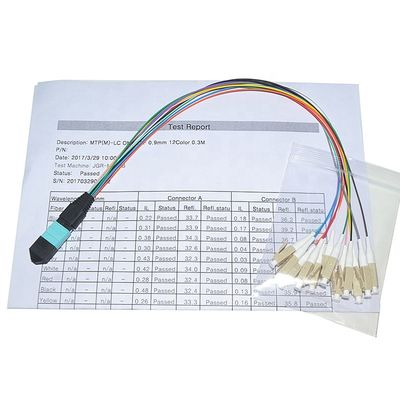

Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout 4
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
Customized Fiber Cable Assembly 12 Core MPO Male LC Fiber 0.9mm Fanout 5
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
