Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC

100 pieces
MOQ
$0.55 - $2.80/pieces
Price
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Use: FTTH
Connecter: LC,SC,ST,FC
Ferrule End Face: PC/UPC/APC
Mode: Single Mode Or Multi Mode
Nominal Outer Diameter: 0.9mm/2.0mm/3.0mm
Core: Simplex Or Duplex
Materal: PVC
Operating Temperature(0C): -40℃ To +80℃
Repeatability: >1000 Times
Certification 1: ROHS
Certification 2: ISO9001-2000
Multi-Mode Fiber: OM1,OM2,OM3,OM4
Single-Mode Fiber: G652D,G655,G657A1,G657A2
No. Of Fiber: 1.
High Light:

Custom Fiber Cable Assembly

,

Fiber Cable Assembly Duplex

,

APC 9 125 Single Mode Fiber

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: SC/APC
Payment & Shipping Terms
Packaging Details: 1piece 1 bag, suitable quantity in 1 carton, or as your demand
Payment Terms: T/T, Western Union
Supply Ability: 30000 Case/Cases per Day
Product Description

High quality Single Mode 9/125 Duplex SC/APC-SC/APC Fiber Optic Patch Cord

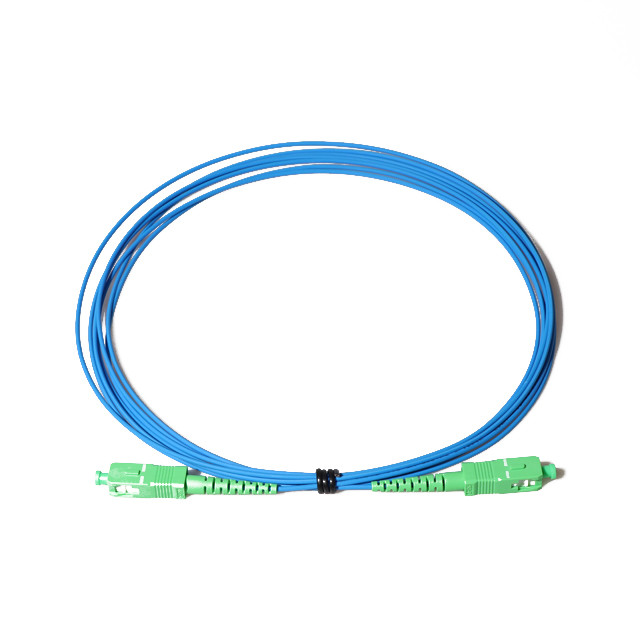

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 0
Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
High quality Single Mode 9/125 Duplex SC/APC-SC/APC Fiber Optic Patch Cord

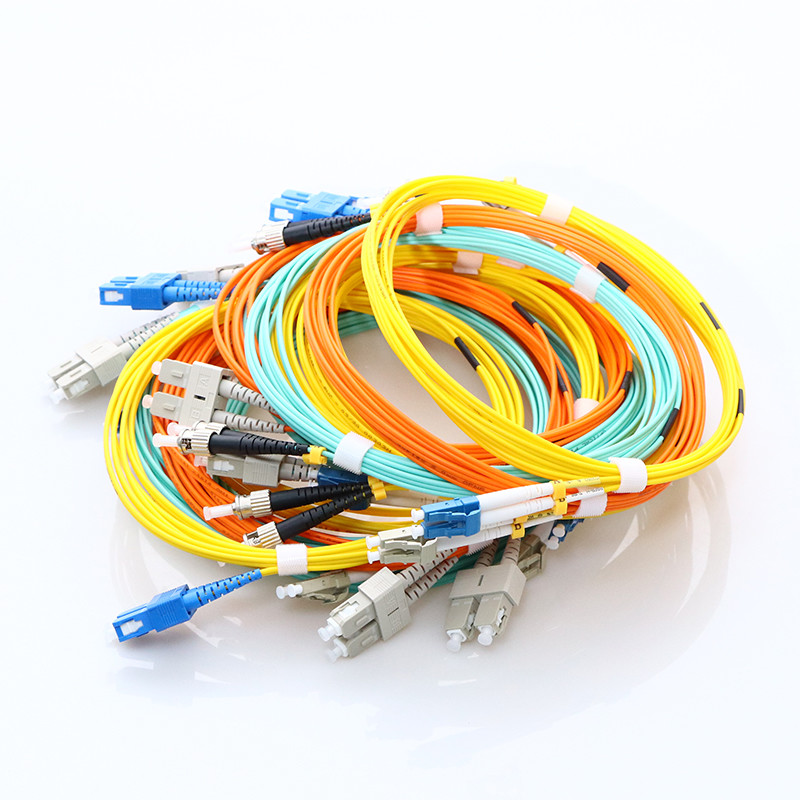

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 1

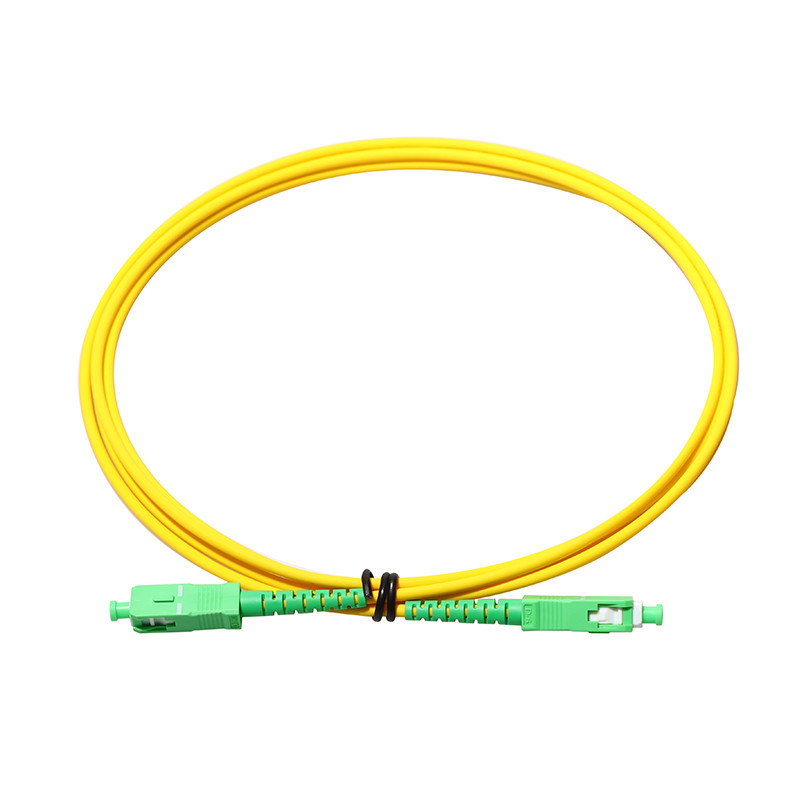

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 2

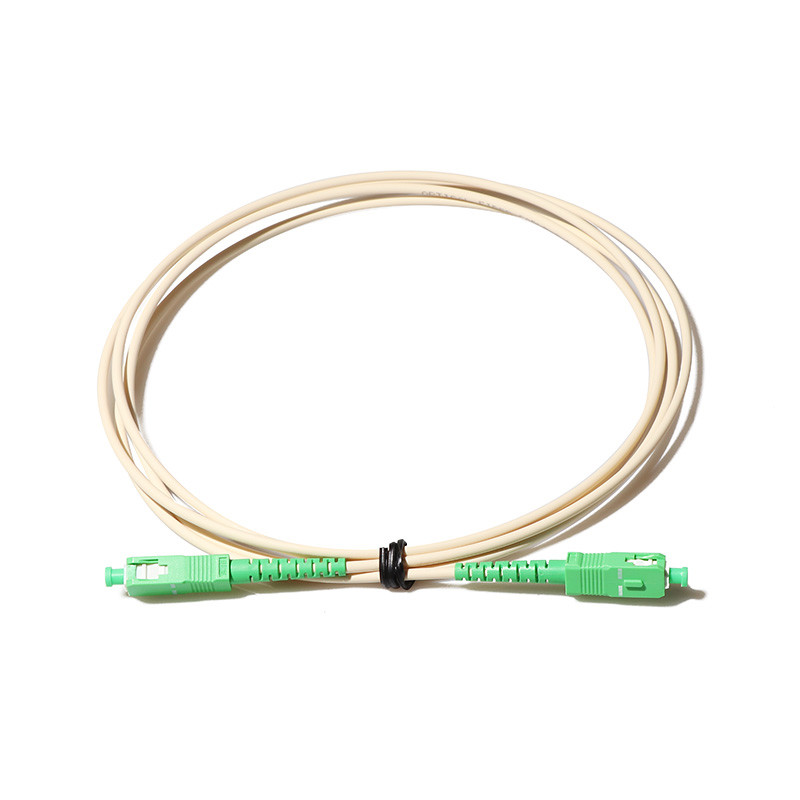

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 3



APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical



FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

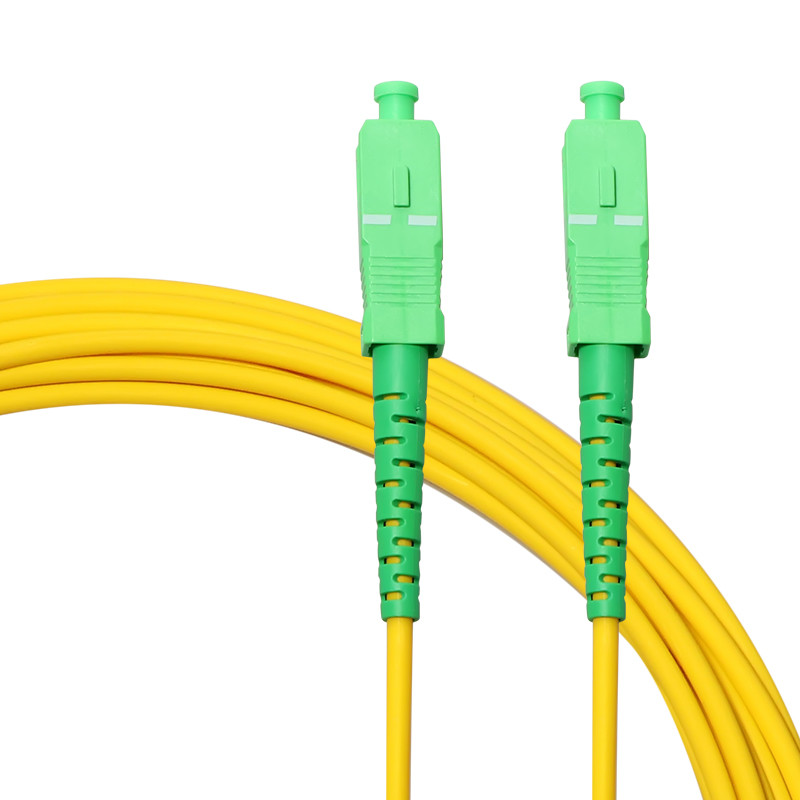

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 4
Mode
Single mode

Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm

850/1310nm
Durability(500 Matings)
≤0.2dB


Operating Temperature
-40℃~+60℃


Storage Temperature
-45℃~+85℃


Fire Resistant
IEC 60794-2-30


Standards-Compliant
ROHS,IEC and GR-326


Fiber type
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2
(4)9/125-G657B3


Multimode:
(5)50/125-OM2
(6)62.5/125-OM1
(7)50/125-OM3
(8)50/125-OM4
(9)50/125-OM5
Fiber Brand
YOFC, Corning, Sumitomo, Fujikura





Connector
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC





Cord type
Simplex ,Duplex





Cable diameter
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm





Cable jacket
PVC, OFNR, LSZH, OFNP





length(M)
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized





Main Products

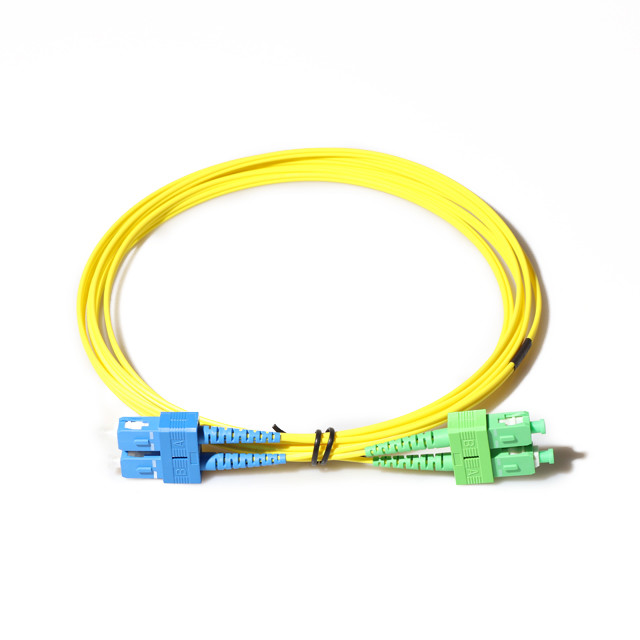

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 5
Fiber Optic Cable
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 7
Patch Cord&Pigtail
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 9
MPO/MTP
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 11
FTTX Cable Assembly
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 13
PLC Splitter
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 15
Fast Connector
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 17
Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 18

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery



Sample

Within 1-2 working days



Wholesale orders

3-7 working days according various quantities

Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 19
Custom 9 125 Single Mode Fiber Cable Assembly Duplex SC APC - SC APC 20
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
