0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White

100 pieces
MOQ
$0.10 - $0.50/pieces
Price
0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Pigtails
Use: FTTH
Warranty Time: 2
Network: Wireless Lan, Wired LAN, 4g, 3G, FIBER
Product Name: SC/UPC Pigtail
Model: SM(Single Mode)
Fiber Type: G652D/G657A
Pigtail Color: White
Connector Type: SC
Ferrule Endface: UPC
Fan-out Tubing Diameter: 0.9mm
Certifaction: ISO9001, ROHS
Sheath Material: PVC Or LSZH
High Light:

0.9mm Fiber Cable Assembly

,

Fiber Cable Assembly Polished White

,

Simplex g657a1 fiber cable

Basic Infomation
Place of Origin: China
Brand Name: OEM
Model Number: SC/UPC Pigtail, Fiber Optic Pigtail
Payment & Shipping Terms
Packaging Details: 0.9mm diameter 9/125 G657A1 SC/UPC simplex polished White Cable Fiber Optic Pigtail,<br>Individual bag or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 200000 Piece/Pieces per Quarter
Product Description
Product Description



0.9mm diameter 9/125 G657A1 SC/UPC simplex polished White Cable Fiber Optic Pigtail

Description / Fiber Pigtail

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

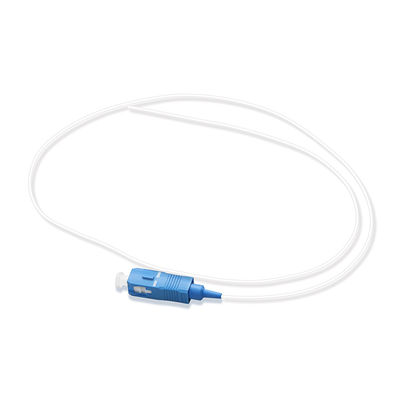

0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 0

Features / Fiber Pigtail

1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available; 2. Superior qualified standard PC, APC, UPC, SPC polishing; 3. φ0.9mm, φ2.0mm, φ3.0mm cable optional; 4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available; 5. Available in fiber bunch, ribbon fan-out, pigtail available; 6. Simplex and duplex connector available; 7. Low IL and High RL; 8. Good exchange ability and good durability; 8. Customized specifications are welcomed.

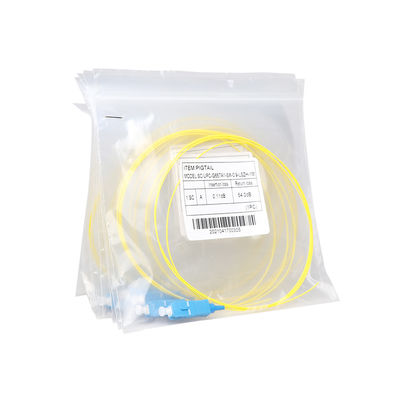

0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 1

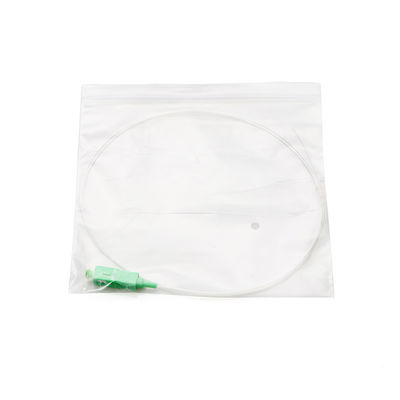

0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 2
Item
SM(Single Mode)


MM(Multimode)

Fiber Cable Type
G652D/G655/G657A1/G657A2


OM1
OM2/OM3/OM4
Fiber Diameter (um)
9/125


62.5/125
50/125
Cable OD (mm)
0.9/1.6/1.8/2.0/2.4/3.0




Endface Type
PC
UPC
APC
UPC
UPC
Typical Insertion Loss (dB)
<0.2
<0.15
<0.2
<0.1
<0.1
Return Loss (dB)
>45
>50
>60
/

Insert-pull Test (dB)
<0.2

<0.3
<0.15

Interchangeability (dB)
<0.1

<0.15
<0.1

Anti-tensile Force (N)
>70




Temperature Range (℃)
-40~+80

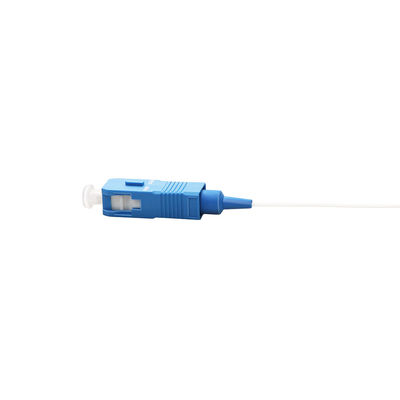

0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 3

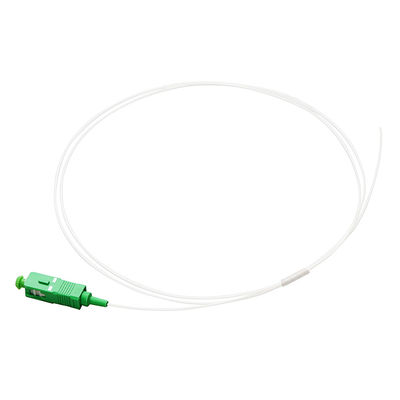

0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 4
Company Profile
0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 5
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 6
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

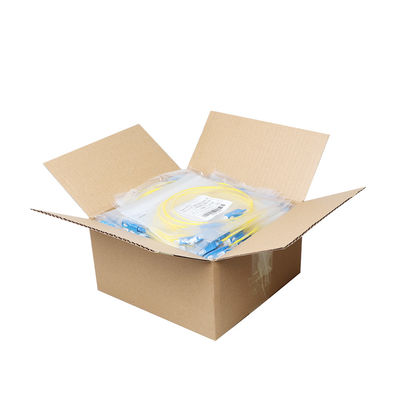

0.9mm Diameter Fiber Cable Assembly 9 / 125 G657A1 SC / UPC Simplex Polished White 7
