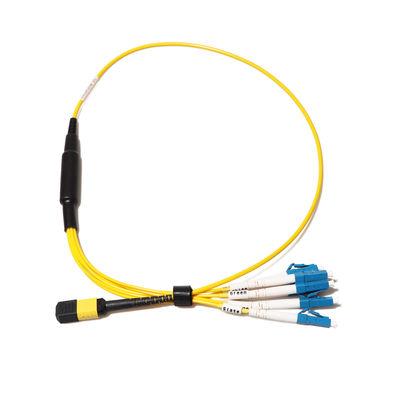

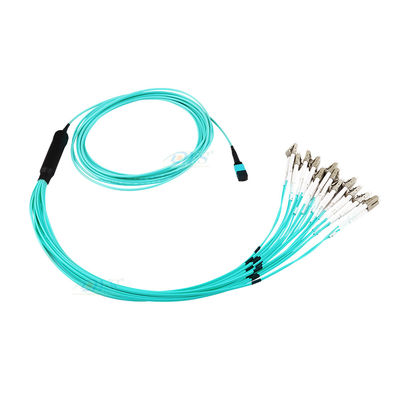

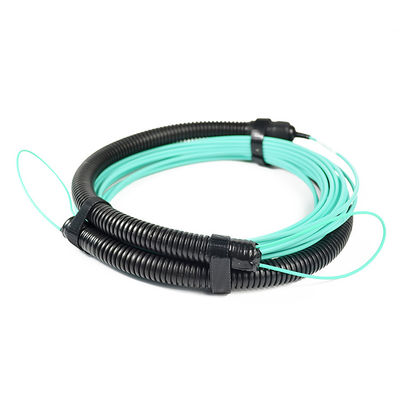

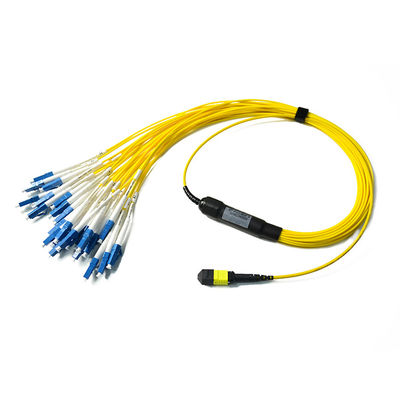

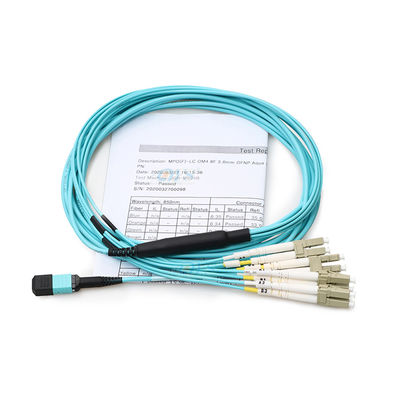

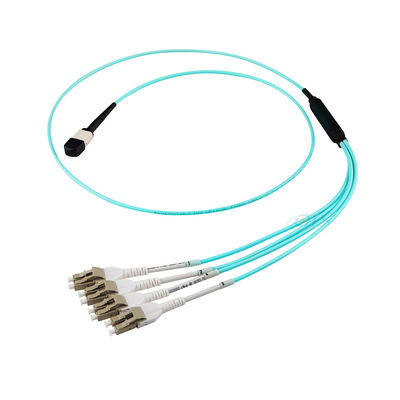

Data communication network Optical System Access network Storage area networking fiber channel High density architectures
100% pre-terminated and tested in factory to ensure transfer performance Rapid configuration and networking, reduce installation time Supports 40G and 100G network applications Jacket material: LSZH, OFNR, OFNP available Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
|
Performance Level
|
|
|
Standard
|
|
Elite
|
|
||||
|
Connector
|
Mode
|
Endface
|
IL(max) (dB)
|
RL(min) (dB)
|
IL(max) (dB)
|
RL(min) (dB)
|
||||
|
MPO/MTP
|
SM
|
12F/APC
|
≤0.70
|
≥60
|
≤0.35
|
≥60
|
||||
|
|
|
24F/APC
|
≤0.75
|
≥60
|
≤0.35
|
≥60
|
||||
|
|
|
48F/APC
|
≤0.75
|
≥60
|
|
|
||||
|
|
MM
|
12F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
||||
|
|
|
24F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
||||
|
|
|
48F/PC
|
≤0.50
|
≥20
|
|
|
||||
|
LC/SC/FC/ST
|
SM
|
|
≤0.30
|
≥60
|
≤0.10
|
≥60
|
||||
|
|
|
UPC
|
≤0.20
|
≥50
|
≤0.10
|
≥50
|
||||
|
|
MM
|
PC
|
≤0.20
|
≥30
|
≤0.10
|
≥30
|
||||
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
Mechanical Properties
|
|
|
|
|||
|
Item
|
|
Criteria
|
Conformance
|
|||
|
△IL After 50 Matings
|
MPO/MTP
|
≤0.3dB
|
GR-1435
|
|||
|
△IL After 500 Matings
|
LC/SC/FC/ST
|
≤0.2dB
|
IEC 61300-2-2
|
|||
|
Min Bend Radius (Dynamic)
|
|
20*OD (Cable Diameter)
|
|
|||
|
Min Bend Radius (Static )
|
|
15*OD (Cable Diameter)
|
|
|||
|
Environment Conditions
|
|
|
|
|||
|
Item
|
Criteria
|
Conformance
|
|
|||
|
Operation Temperature
|
-40~60°C
|
IEC 61753-1
|
|
|||
|
Storage Temperature
|
-45~85°C
|
|
|
|||
