Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

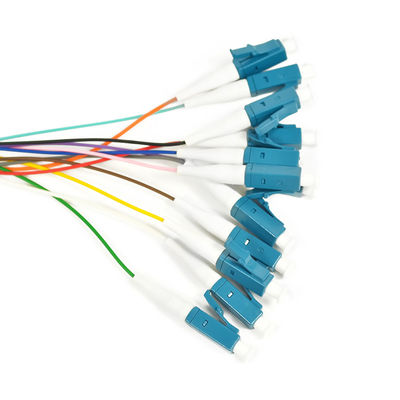

MPO/MTP-LC
MPO/MTP-SC
|
Performance Level
|
|
|
Standard
|
|
Elite
|
|
||||
|
Connector
|
Mode
|
Endface
|
IL(max) (dB)
|
RL(min) (dB)
|
IL(max) (dB)
|
RL(min) (dB)
|
||||
|
MPO/MTP
|
SM
|
12F/APC
|
≤0.70
|
≥60
|
≤0.35
|
≥60
|
||||
|
|
|
24F/APC
|
≤0.75
|
≥60
|
≤0.35
|
≥60
|
||||
|
|
|
48F/APC
|
≤0.75
|
≥60
|
|
|
||||
|
|
MM
|
12F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
||||
|
|
|
24F/PC
|
≤0.50
|
≥20
|
≤0.35
|
≥20
|
||||
|
|
|
48F/PC
|
≤0.50
|
≥20
|
|
|
||||
|
LC/SC/FC/ST
|
SM
|
|
≤0.30
|
≥60
|
≤0.10
|
≥60
|
||||
|
|
|
UPC
|
≤0.20
|
≥50
|
≤0.10
|
≥50
|
||||
|
|
MM
|
PC
|
≤0.20
|
≥30
|
≤0.10
|
≥30
|
||||
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
Mechanical Properties
|
|
|
|
|||
|
Item
|
|
Criteria
|
Conformance
|
|||
|
△IL After 50 Matings
|
MPO/MTP
|
≤0.3dB
|
GR-1435
|
|||
|
△IL After 500 Matings
|
LC/SC/FC/ST
|
≤0.2dB
|
IEC 61300-2-2
|
|||
|
Min Bend Radius (Dynamic)
|
|
20*OD (Cable Diameter)
|
|
|||
|
Min Bend Radius (Static )
|
|
15*OD (Cable Diameter)
|
|
|||
|
Environment Conditions
|
|
|
|
|||
|
Item
|
Criteria
|
Conformance
|
|
|||
|
Operation Temperature
|
-40~60°C
|
IEC 61753-1
|
|
|||
|
Storage Temperature
|
-45~85°C
|
|
|
|||
