Black Fiber Cable Assembly , SC APC Patch Cord 1 Core One End With Pulling Eye

2 pieces
MOQ
$0.50 - $5.20/pieces
Price
Black Fiber Cable Assembly , SC APC Patch Cord 1 Core One End With Pulling Eye
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Number Of Conductors: 1
Fiber Type: G657A,G652D,single Mode /multi Mode
Cable Length: 20m.30m,50m Or Customized
Fiber Count: 1-12 Cores
Application: Indoor /outdoor Used
Cable Type: FTTH FLAT DROP CABLE
Jacket Color: Black,white
Outer Jacket: PVC, LSZH,OFNP,PE
Strength Member: FRP Strength Member
OM Type: 9/125UM,50/125UM,62.5/125UM9/125UM,50/125UM,62.5/125UM
Certifaction: ISO9001, ROHS
High Light:

Pulling Eye Fiber Cable Assembly

,

Fiber Cable Assembly SC APC

,

SC APC Patch Cord 1 Core
Basic Infomation
Place of Origin: China
Brand Name: OEM
Model Number: SC
Payment & Shipping Terms
Packaging Details: Individual box or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 50000 Set/Sets per Day
Product Description
Product Description
SC/APC-SC/APC Patchcord, FTTH optical Jumper nonself-support drop cable,1 core One end with pulling eye
(1) FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building.
(2) FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.
(3) FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12.
(4) FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.

FEATURES

1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

APPLICATION

1.Access Network
2.Telecom/CATV Systems
3.FTTx
FTTH drop cable fiber optic patch cord Performance Parameter



Name
FTTH drop cable fiber optic patch cord


Ferrule type
zirconia ceramics ferrule


IL
≤0.3dB
RL
≥55dB
Fiber core
1,2,4 to 12
Durability
≥1000 times
Jacket
3.1*2.0 or 5.0*2.0mm PVC or LSZH
Wavelength
1310 1550nm
Length
1~1000 meter
Working temperature
-40℃~+80℃

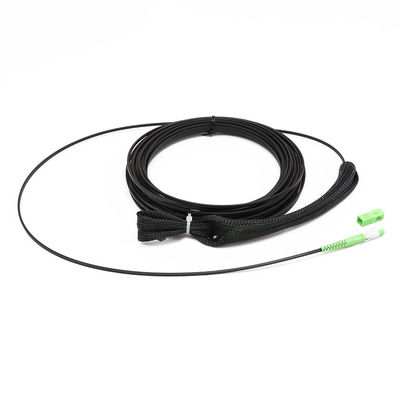

Black Fiber Cable Assembly , SC APC Patch Cord 1 Core One End With Pulling Eye 0

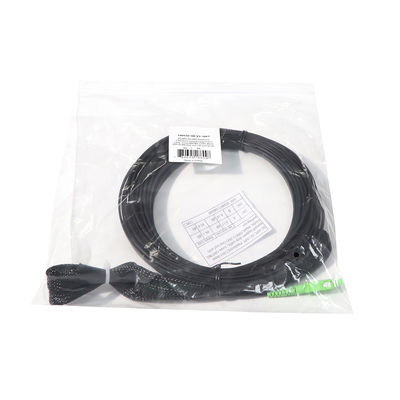

Black Fiber Cable Assembly , SC APC Patch Cord 1 Core One End With Pulling Eye 1

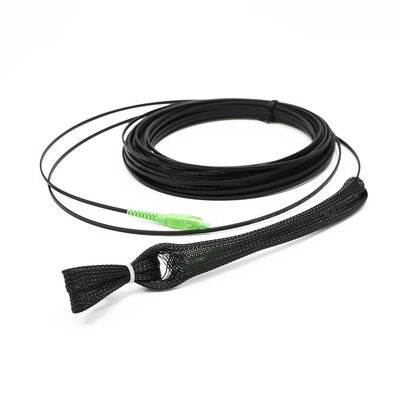

Black Fiber Cable Assembly , SC APC Patch Cord 1 Core One End With Pulling Eye 2

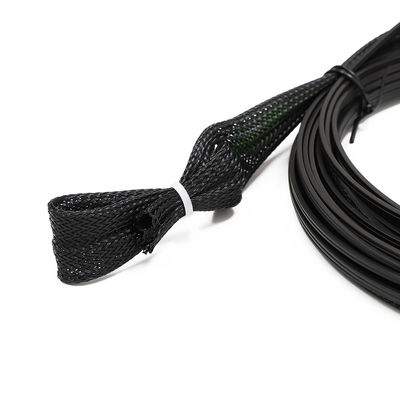

Black Fiber Cable Assembly , SC APC Patch Cord 1 Core One End With Pulling Eye 3
