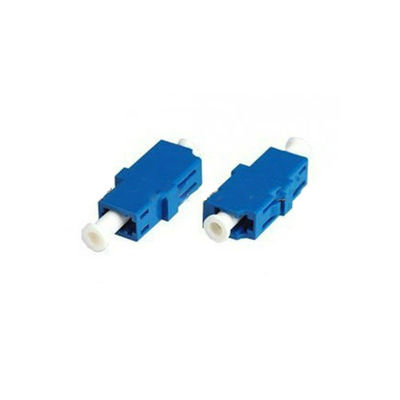

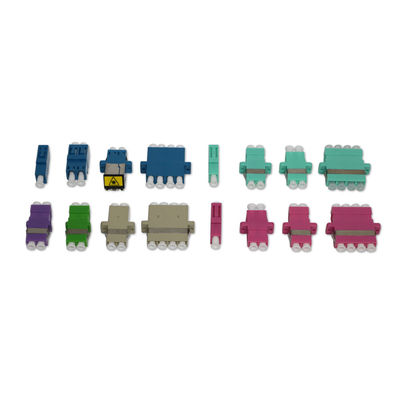

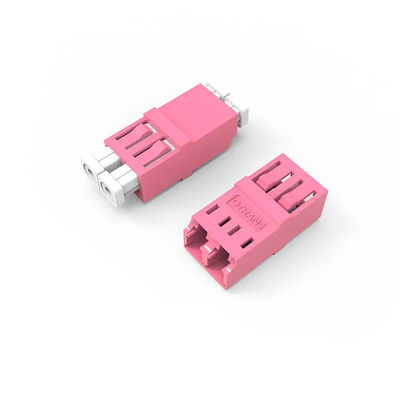

LC UPC PC SM SX Fiber Optical Adapter single mode For Outdoor Indoor

100 pieces
$0.10 - $1.00/pieces
LC UPC PC SM SX Fiber Optical Adapter single mode For Outdoor Indoor
Features Gallery Product Description Request A Quote
Type: Fiber Opitc Adapter
Use: Outdoor/Indoor
Working Wavelength: 1200~1600nm
Insertion Loss (IL): 0.2
Return Loss: ≥50
Mode: SM&MM
Material: Pc
Sleeve Material: Zirconia Or Phosphor Bronze Sleeve
Working Condition: -40°C To +75°C
Storage Temperature: - 55 To + 85 Degrees
Operating Temperature: - 40 To + 75 Degrees
Single-Mode Fiber: Yes
No. Of Fiber: 1
Application: FTTH
High Light:

SX Fiber Optical Adapter


SM Fiber Optical Adapter


Outdoor lc upc adapter

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: LC/UPC SX SM
Payment & Shipping Terms
Packaging Details: plastic bags
Payment Terms: T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Week
Product Description
Wholesales Like High Quality LC/UPC/PC SM SX Fiber Optic Adapter From China Factory
LC fiber optic adapter are single mode adapters are with zirconia sleeve while multimode fiber adapters are with bronze sleeve.


1.LC fiber optic adapter
2.Low insertion loss
3.high return loss
4.Good compatibility
5.High precision of mechanical dimensions
6. High reliability & stability
7.Ceramic or Bronze Sleeve
8.PC, APC, UPC optional
9.Simplex / Duplex


1.LC fiber optic adapter
2.Local Area Network
3.CATV System
4.Telecommunication Networks
5. Equipment Test
LC UPC PC SM SX Fiber Optical Adapter single mode For Outdoor Indoor 0
Sleeve Material: Ceramic or beryllium bronze;
Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility;
Working Wavelength: 1200~1600nm;
Working Condition: -40°C to +75°C;
Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB;
Repeatability: No more than 0.2dB ;
The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA.
Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green
