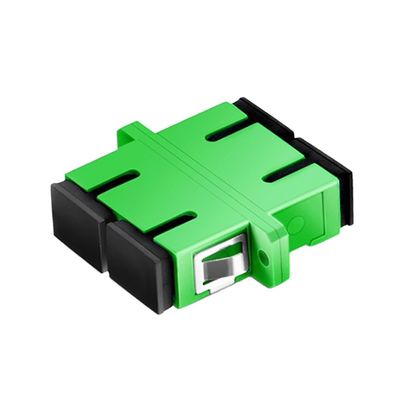

Supply SC UPC APC fiber optic adapter single mode duplex optical adaptors shutter sc adapter
SC-APC fiber adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
SC-APC fiber optic adapters are flange type in plastic housing; Single mode adapters are with Ceramic sleeve while multimode fiber adapters are with bronze sleeve.
1. Low insertion loss, high return loss
2. Good compatibility
3. High precision of mechanical dimensions
4. High reliability & stability
5. Ceramic or Bronze Sleeve
6. PCAPCUPC optional
7. Simplex / Duplex
1. Local Area Network
2. CATV System
3. Telecommunication Networks
4. Equipment Test
Hot Selling SC UPC SM Simplex Blue Fiber Optic Adapter
Sc/upc sm fiber adapter
| Parameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
