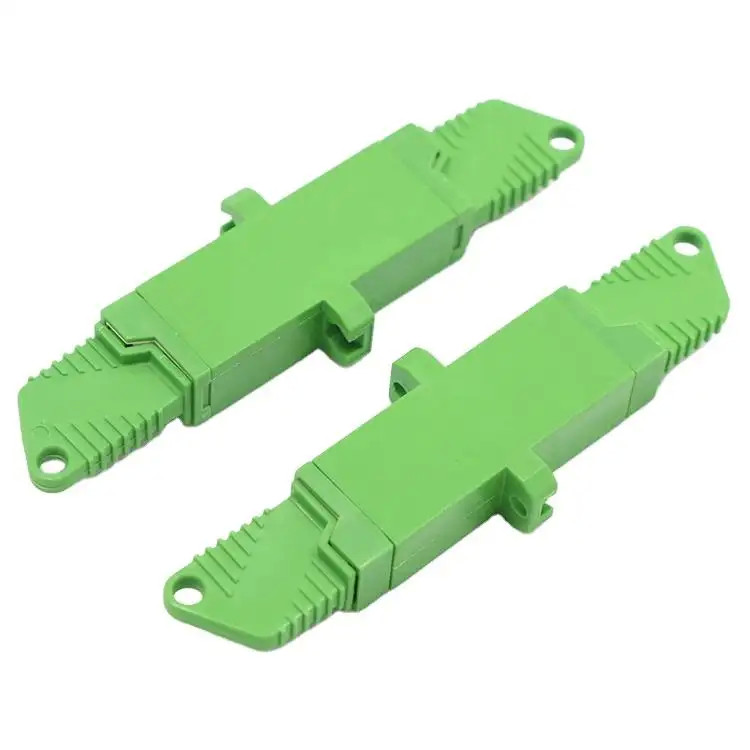

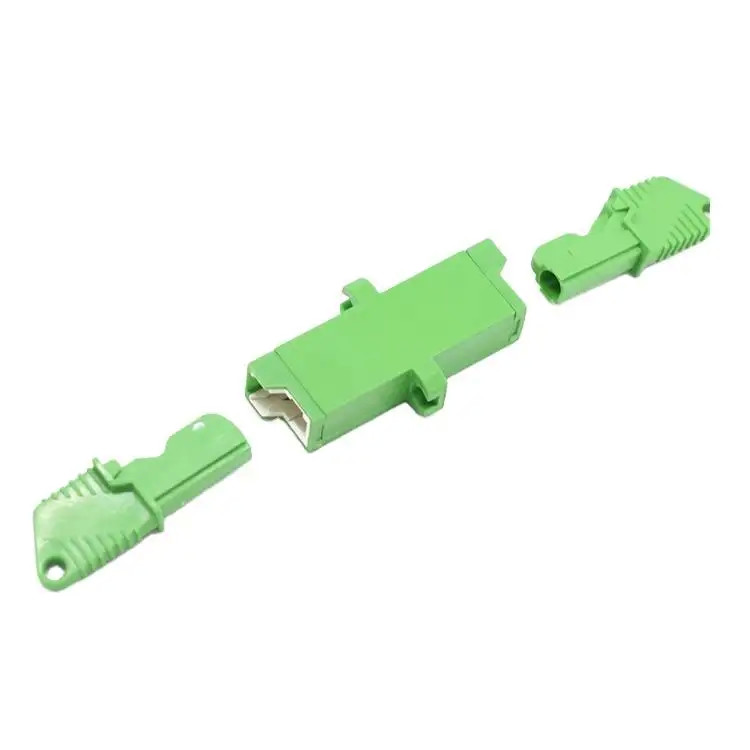

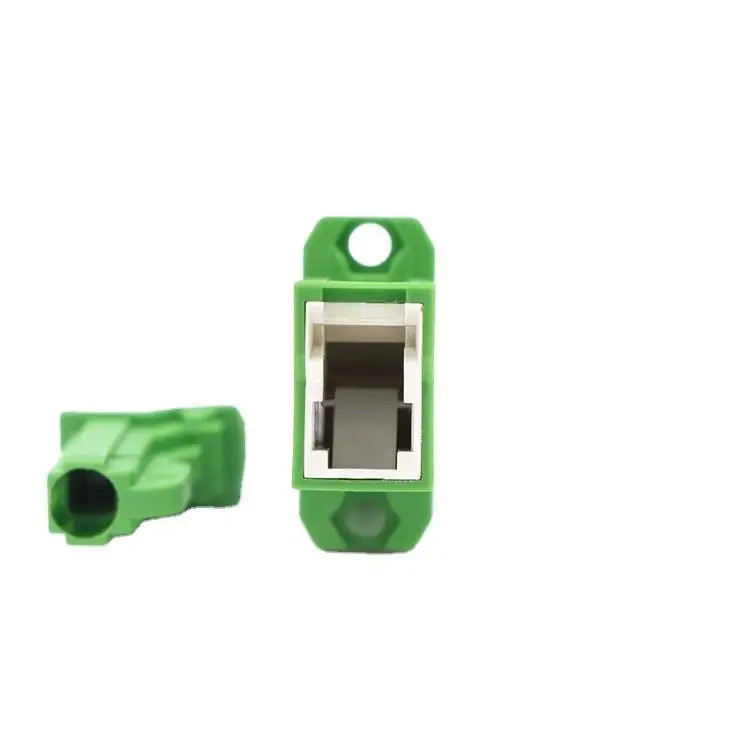

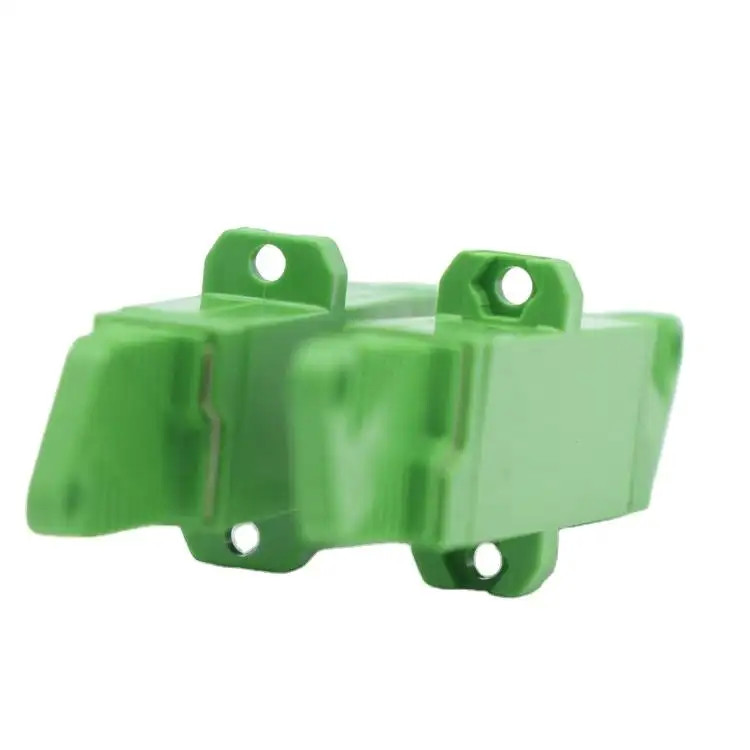

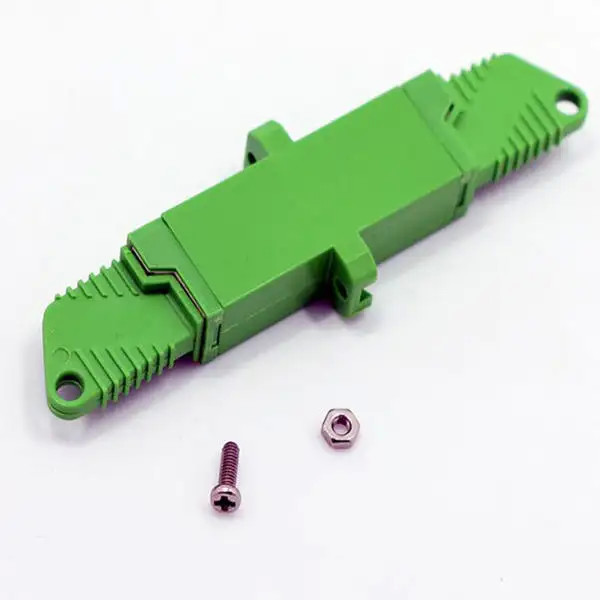

E2000 Adapter are developed to couple and mate two E2000 connector plugs. The E2000 fiber optic adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.
|
Test item
|
(SM-9/125) UPC
|
(SM-9/125) APC
|
MM PC
|
||
|
Insertion Loss
|
≤0.2dB
|
≤0.2dB
|
≤0.2dB
|
||
|
Return Loss
|
≥50 dB
|
≥60 dB
|
≥35 dB
|
||
|
Durability (500 Mating)
|
0.1dB Max.
|
|
|
||
|
Withdrawal force(g/f)
|
2.0N ~ 5.9N (200gf ~ 600gf)
|
|
|
||
|
Storage Temp(℃)
|
-40~+85
|
|
|
||
1.Low back reflection and Low PDL 2.High precision attenuation value 3.Precision control of attenuation range 4.Wide attenuation range 5.Precision ceramic ferrule 6.FC, SC, ST, LC … optional 7.Plastic or metal housing material
1.telcommunication 2.CATV network
