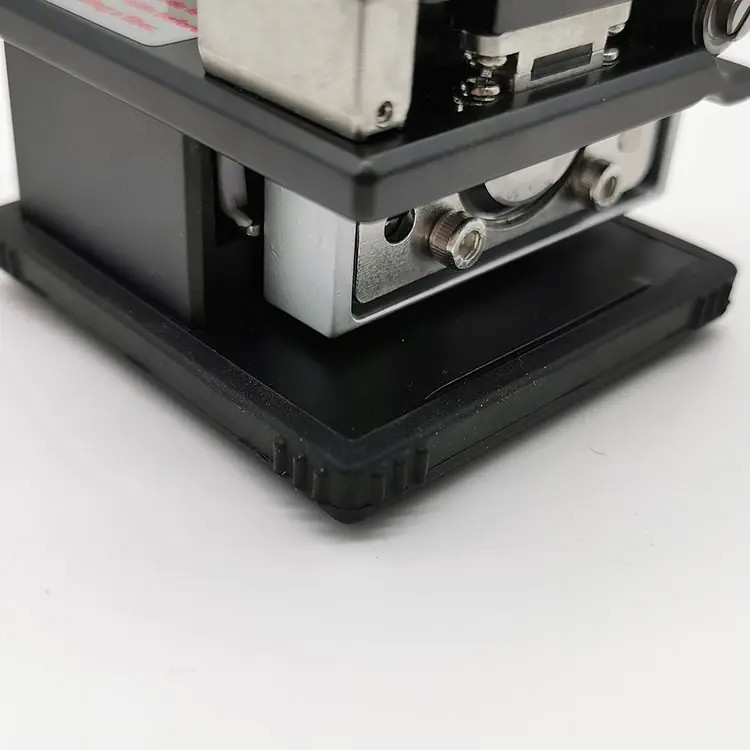

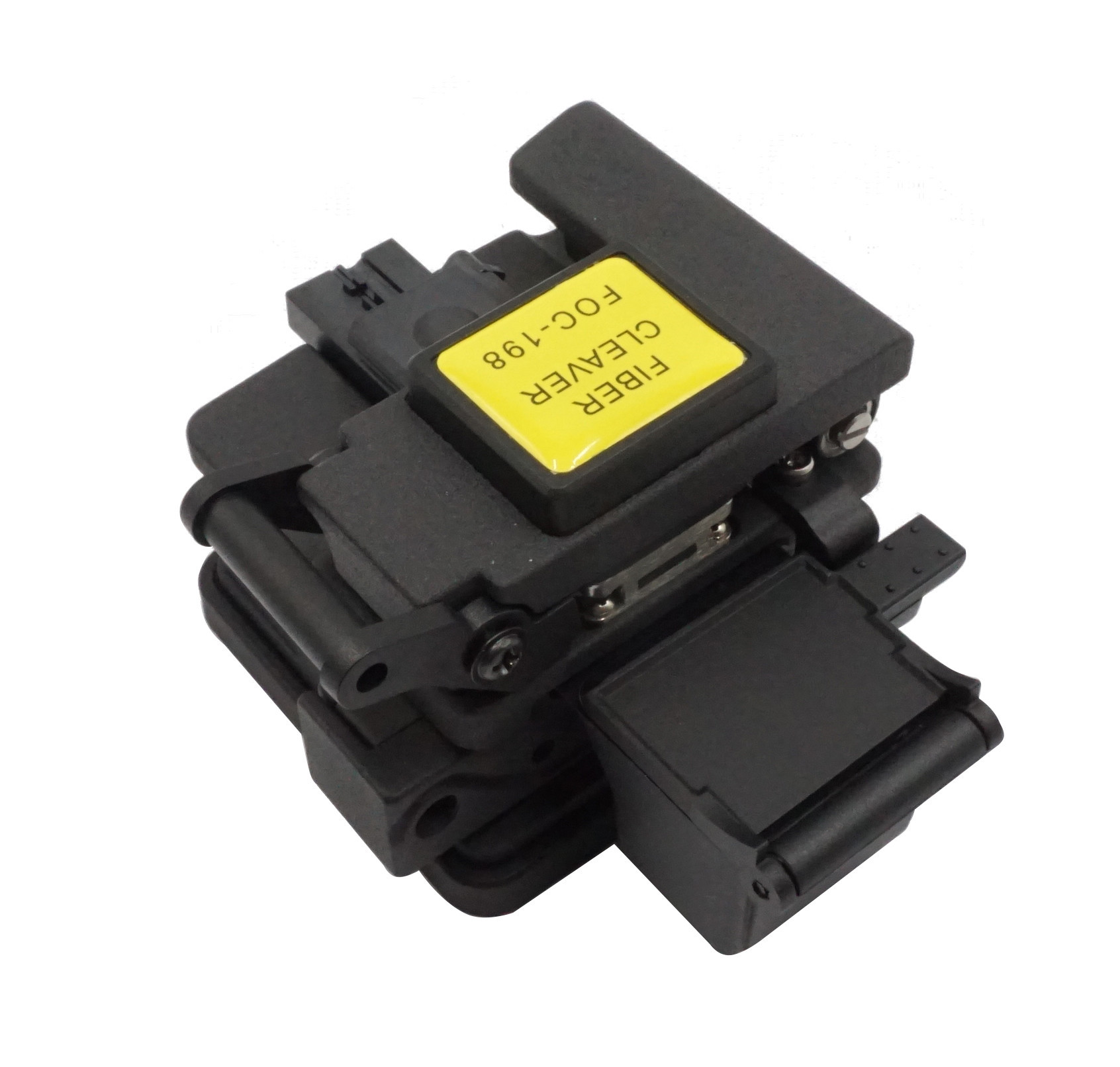

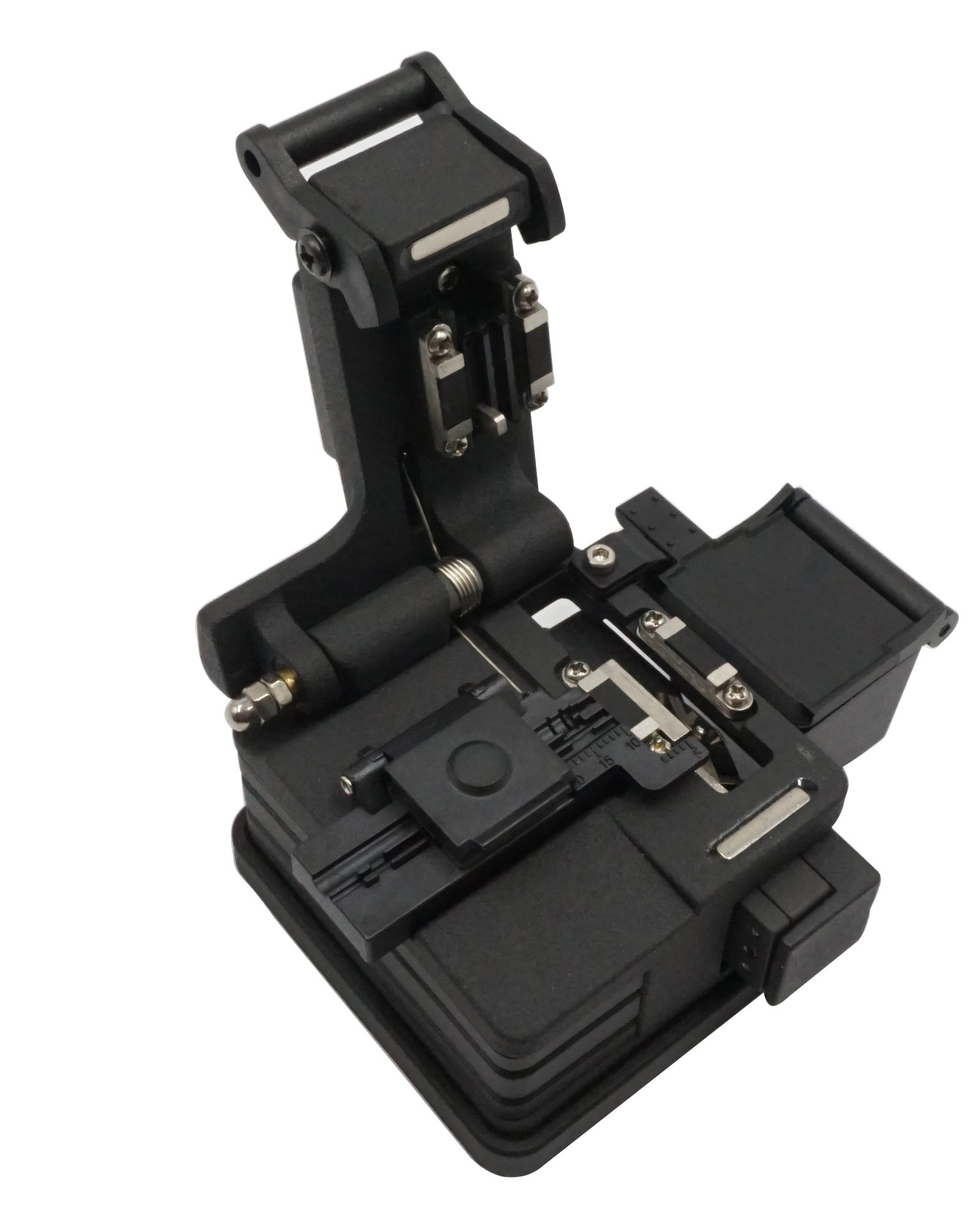

FOC-198 high precision optical fiber cleaver is used for precision cutting single core fiber.
It not only apply to 250μm coated fiber, also apply to 900μm coated fiber, cutting angle is smaller and more precise, do not
special skills.
|
Product model
|
Fiber cleaver
|
|
Optical fiber cladding diameter
|
125um
|
|
Fiber coating diameter
|
0.25-0.9mm
|
|
Coated outer diameter
|
Single core
|
|
The length required to be removed before optical fiber cutting
|
Fiber cutting length ≥18mm
|
|
Fiber cutting length
|
5-20mm
|
|
Fiber cutting angle
|
≤0.8°
|
|
Blade life
|
48000 (1000 times x16 position x 3 high)
|
|
Size
|
63*65*60mm
|
|
Weight
|
180g
|
|
The jip
|
Four in one multifunction jip
|
