FTTH Fiber Optic Pen Type Visual Fault Locator 10mw For 650nm

20 pieces
$13.00/pieces 20-99 pieces
FTTH Fiber Optic Pen Type Visual Fault Locator 10mw For 650nm
Features Gallery Product Description Request A Quote
Type: Testers &Tools
Warranty Time: 1 Year
Product Name: Fiber Optic Visual Fault Locator

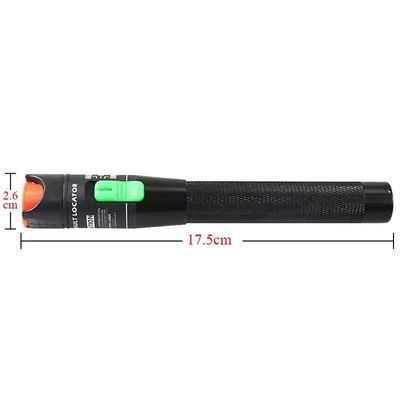

Size: 175mm*26mm*26mm
Weight: 170g
Wave Output: 650nm
Battery Style: LR6(AA) 1.5V*2
Storage Temperature(°C): -20~+70
Operating Temperature(°C): 0~+60
Battery Life: ≥40H(1mW)
MOQ: 100pcs
High Light:

FTTH Pen Type Visual Fault Locator


Pen Type Visual Fault Locator 10mw


Optic visual fault locator 10mw

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: BML-VFL650-10MW
Payment & Shipping Terms
Packaging Details: Carton Box
Payment Terms: T/T, Western Union
Product Description

Supply FTTH fiber optic tool light source 10mw pen-type visual fault locator for 650nm

Optical Fiber Pen-type Red Light Source

Pen-based red light source, which use 650nm semiconductor laser as a light emitting device, through the constant current drive, transmit the red light which power is stable. After connecting with optical interface, the red light can enter into the multimode and single mode fiber, achieve detecting function of optical fiber fault. It is an indispensable tool for fiber-optic construction, fiber-optic network maintenance, optical device production and research.

1.Fiber fracture and bending fault location;

2.OTDR shadow of the failed inspection;

3.End to end fiber identification;

4.Maintenance in telecom, CATV;

5.Test Lab of optical fibers;

6.Fiber routing and continuity checking in optical networks.

FTTH Fiber Optic Pen Type Visual Fault Locator 10mw For 650nm 0
Wave output
Fiber connectot
Operating Temperature(°C)
Storage Temperature(°C)
Battery life
Battery stype
LR6(AA) 1.5V*2

1. 2.5mm universal connector, for 1.25mm connectors;

2. FC (Male)-LC (Female) convertor can be provided on requests;

3. Operates either in CW or Pulsed;

4. Constant output power;

5. Lower Battery warning;

6. Long battery life (up to 60 hours);

7. Crash-proof and dust-proof design for laser head;

8. Laser case ground design prevents ESD damage;

9. Burning testing to ensure the reliability;

10. Portable and rugged, easy to use;

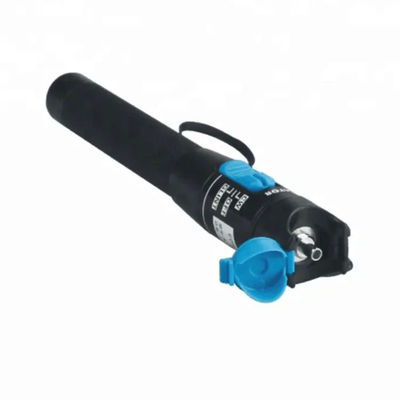

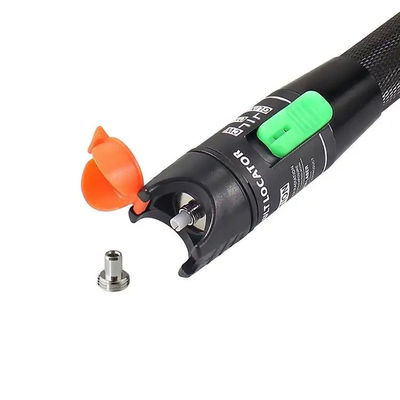

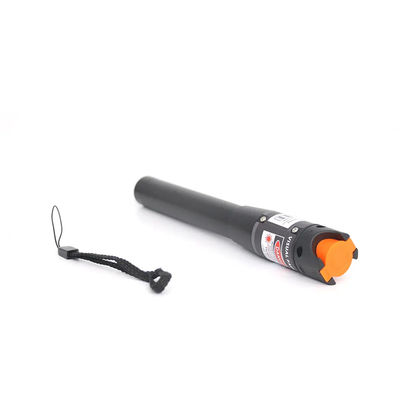

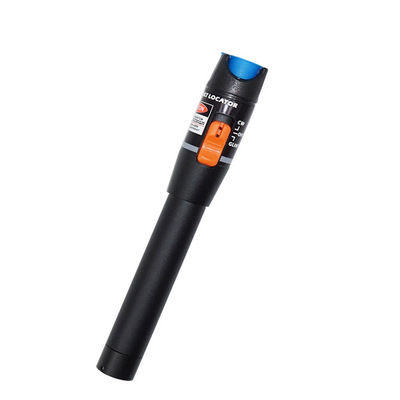

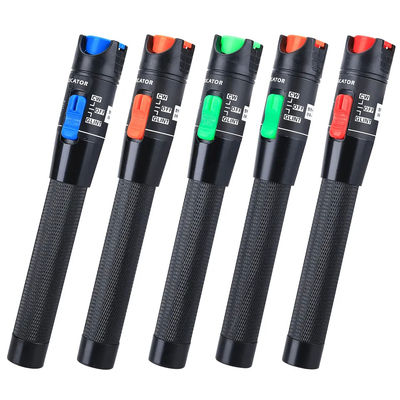

Detailed Image
FTTH Fiber Optic Pen Type Visual Fault Locator 10mw For 650nm 1
