Key Features
> 5 inches high resolution colorful LCD display
> Average splice time: 10 seconds
> Average tube-heat time: 25 seconds
> Lithium battery: up to 200 times of continuous splice and heat
> Simultaneous X and Y views with 220 times magnification
> X or Y can be viewed with 400 times magnification separately
> New developed technology providing wind and dust resistance
> Splicing mode: Auto & Manual & Full Automation
> USB Port
> Storing 6,000 groups of splice results
> Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, cable, fiber optic patch cord, bare fiber)
|
Applicable Fiber
|
SM, MM, NZ-DS, EDF , Pigtail, Cable, Rubber-insulated wire Series
|
|
Average Splicing Loss
|
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
|
|
Return Loss
|
≥60dB
|
|
Tension Test
|
2.0N(200gf)(Standard)
|
|
Typical splicing time
|
10 seconds
|
|
Typical heating time
|
25 seconds
|
|
Splicing Program
|
50 groups
|
|
Protection Sleeve Length
|
20mm, 40mm, 60mm
|
|
Language
|
Multi-language
|
|
Environmental Conditions
|
-10~+50°C(operation temperature),0~95% RH(humidity),0~5000m(altitude)
|
|
Power Supply
|
AC adaptor: 100~240V input voltage, 50/60Hz; 11.1V, 5A output voltage(DC)
Inner lithium battery: 11.1V, 6AH |
|
Monitor
|
5 inches high resolution colorful LCD display
|
|
Fiber Image Magnification
|
Simultaneous X and Y views with 220 times magnification
|
|
Storage of Splice Result
|
6,000 groups of latest splice results
|
|
Splicing Model
|
Auto & Manual & Full Auto
|
|
Dimensions
|
130(W)*130(D)*130(H)mm; Package size: 53*32*30cm
|
|
Weight
|
2.5kg
|
|
Item
|
Quantity
|
Item
|
Quantity
|
|

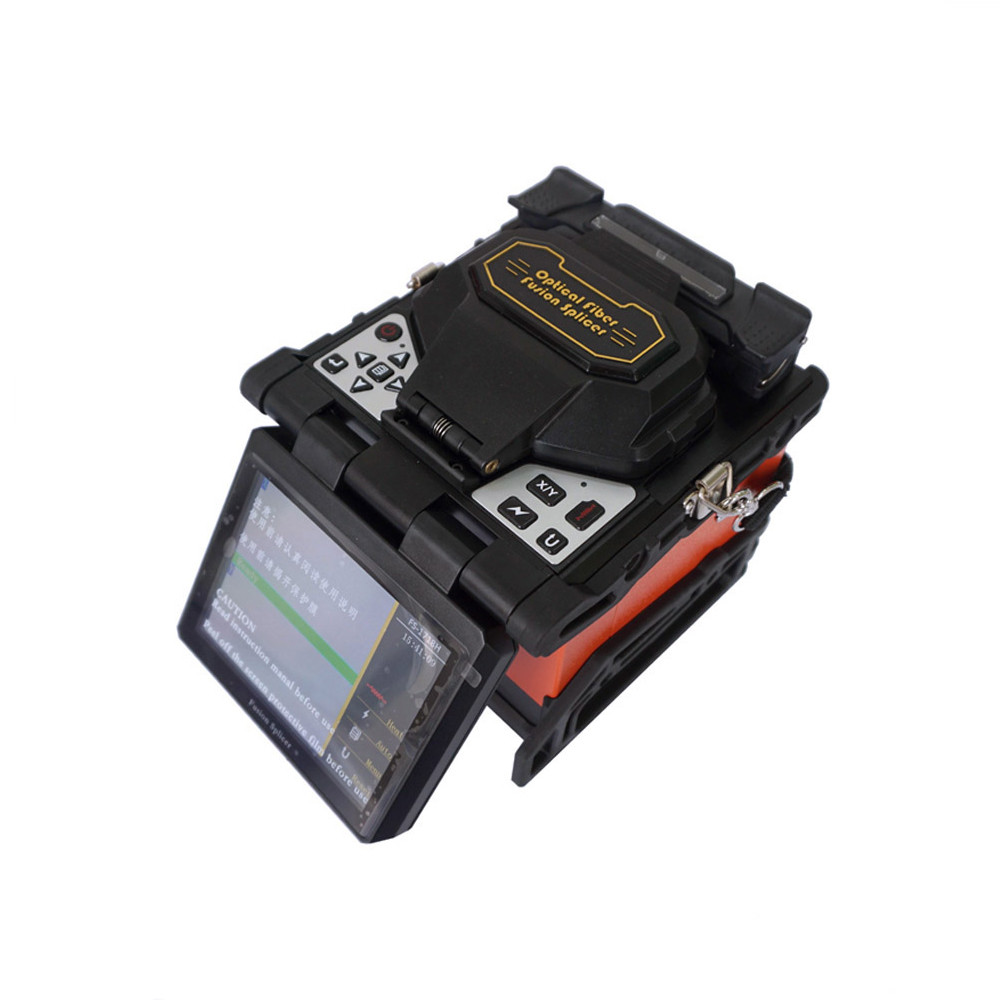

1, Machine FS-1688H
|
1
|
7, Spare Electrodes
|
1
|
|
2, Fiber Cleaver
|
1
|
8, Cooling Tray
|
1
|
|
3, Fiber Stripper
|
1
|
9, Instruction CD
|
1
|
|
4, AC Adaptor
|
1
|
10, Quick Reference Guide
|
1
|
|
5, Battery
|
1
|
11, Rubber-insulated wire strippers
|
1
|
|
6, Battery Charge
|
1
|
12,Carrying case with Carrying strap
|
1
|
