Home /Products/FTTH Solution/IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM

IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM

2 pieces
MOQ
$1.00 - $4.50/pieces
Price
IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTTH, FTTX
Warranty Time: 2
Network: Ip, 4g, 3G
Application: Huawei,Furukawa Slim And Optitap Adapter
Connector A Type: SC/APC
Connector Type: STW SC/APC Connector
Waterproof Level: IP68
Insertion Loss: 0.2dB
Return Loss: >65dB
Length: Customized
No. Of Fiber: 1.
High Light:

Waterproof FTTH Solution Cable

,

Optitap FTTH Solution Cable
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: STW connector, Compatible with Huawei,Furukawa Slim and Optitap SC Connector
Payment & Shipping Terms
Packaging Details: 1set/bag or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 20000 Piece/Pieces per Day
Product Description
Product Description
IP68 Waterproof TWS Connector Patch Cord for Optitap OPTI/FAST/SLM Slim Universal SC Connector

Product Description

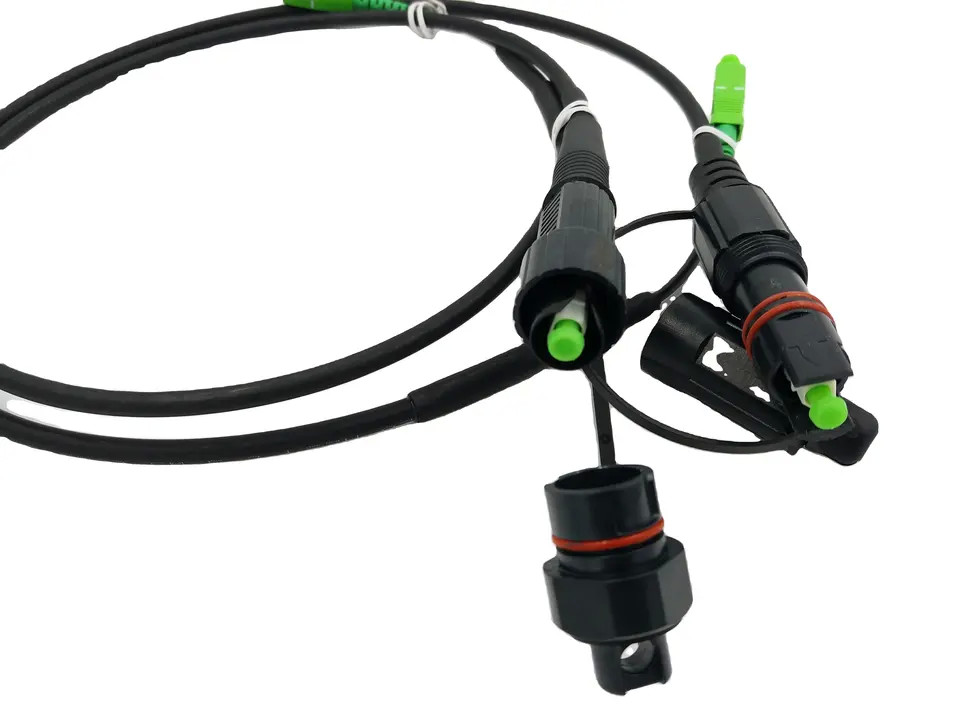

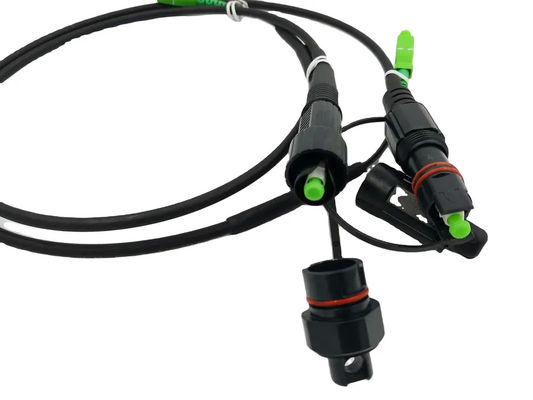

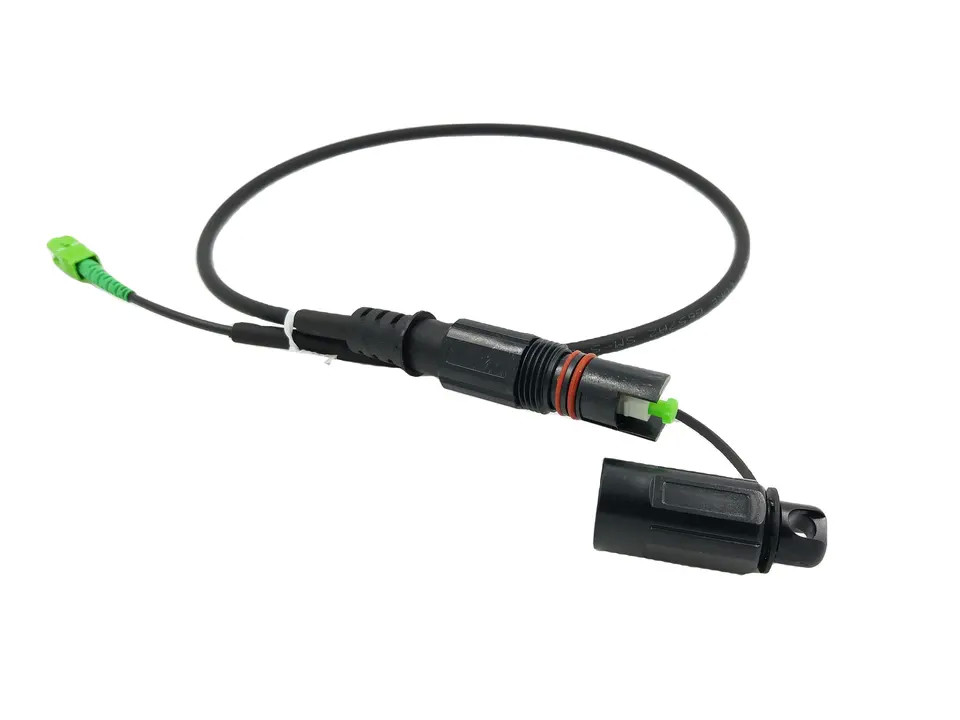

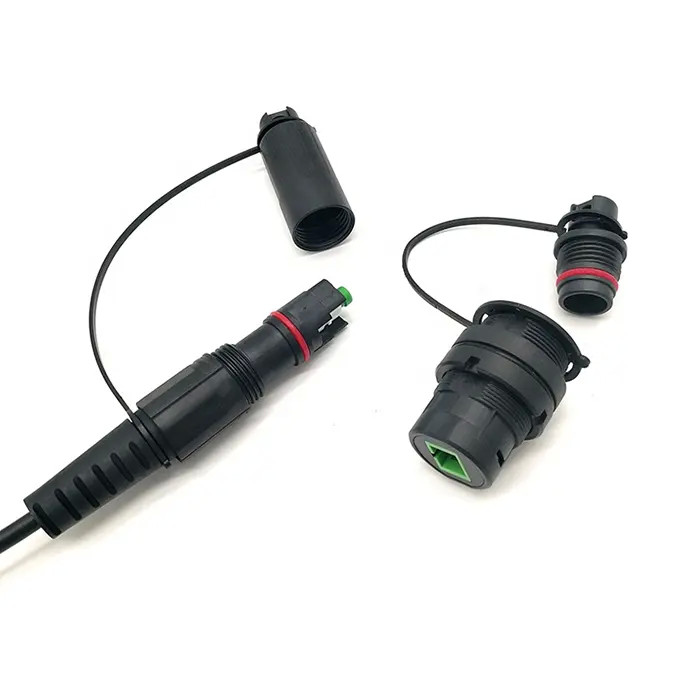

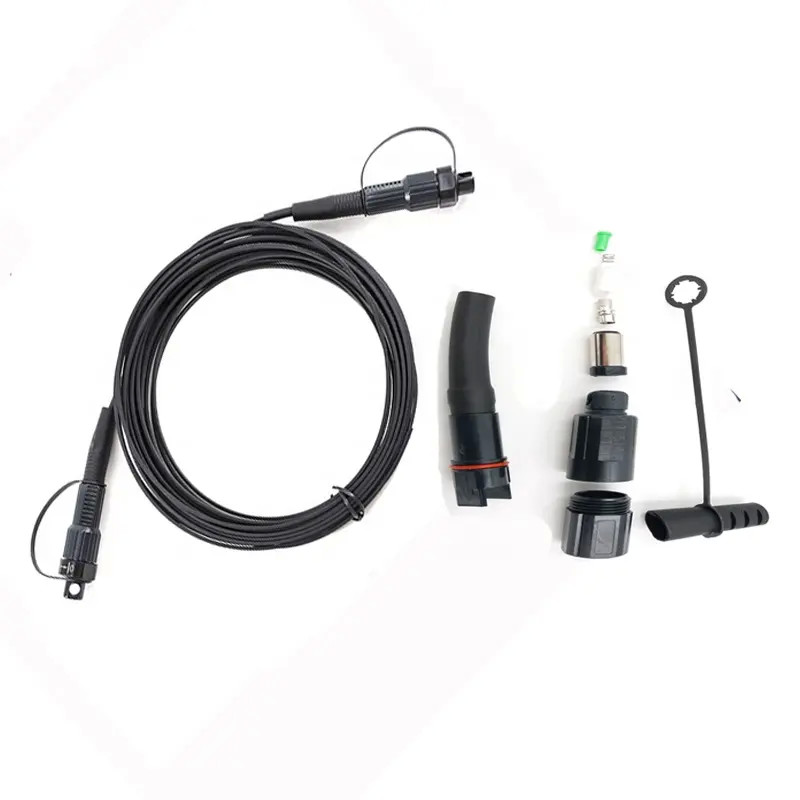

STW cable assemblies provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations.The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. STW cable assembly provides quick installation solutions and has good performance on mating with Optitap and Mini(SC/APC) adapter.Cable can be amored or non-amored. STW connector Applications include connection to Remote Radio Units (RRU/RRH), FTTA,FTTH equipment and other outdoor systems.The Unique design of the housing allows it to be provided on a factory terminated and tested cable assembly or retrofitted to existing outdoor cable assemblies.
IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM 0
Item
Parameter
Insertion loss
≤0.3dB
Return loss
Min. 60 dB
Repeatably
≤0.2dB
Interchangeability
≤0.2dB
Durability
1000 cycles
Operating Temperature
-40 ℃ ~ +85 ℃
Storage Temperature
-40 ℃ ~ +85 ℃
Installation Temperature
-40 ℃ ~ +85 ℃
Waterproofing grade
IP68 (1M,1hour)
Cable diameter range
∅2.0mm - ∅5.0 mm;2x3mm Butterfly; 2x5mm Butterfly;4x7mm flat
Housing material
PC
Boot material
TPV
IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM 1
IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM 2
IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM 3
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
IP68 Waterproof FTTH Solution , Fiber Optic Cable For Optitap OPTI FAST SLM 4
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

Tag:

Waterproof FTTH Solution Cord

Solution Connector FTTA Cord

OptiTap FTTA Patch Cord
