Name: IP68 Waterproof FTTH Solution , Fiber Optic SC APC Patch Cord With Optitap Connector
Brand: ODM/OEM
SKU: Hoptic Connector patch cord
Price: 6.00 USD
Availability: InStock
Rating: 4.7 (108 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Fiber Optic Cable

Use: FTTX

Warranty Time: 5

Network: 4g, 3G

Product Name: SC/APC Patch Cable Compatible With Corning Optitap

Connector A: OptiTap Connector

Connector B: SC/APC Connnector

Fiber: SM G657A

Cable Size: 3.0mm/4.6mm/ 4*7mm

Length: 10M, 20M, 50M Or Customized

Fiber Count: 1 Core

Waterproof Grade: IP68

Application: FTTH

Certifaction: ISO9001, ROHS

High Light:

IP68 FTTH Solution Cord

Optitap FTTH Solution Cord

Fiber Optic SC APC Patch Cord

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: Hoptic Connector patch cord

Payment & Shipping Terms

Packaging Details: Individual box or according to customer's request

Payment Terms: T/T, Western Union

Supply Ability: 20000 Piece/Pieces per Day

Gallery

IP68 Waterproof FTTH Solution , Fiber Optic SC APC Patch Cord With Optitap Connector

Product Description

Compatible with Corning Optitap connector Waterproof SC/APC Fiber Optic patch cable

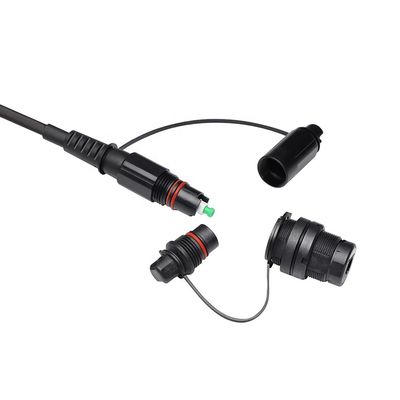

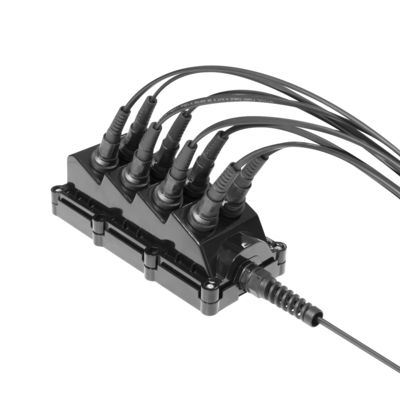

H opticassemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H optic connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H optic connector provides an ideal solution for direct burial, conduit, or aerial installations.

Benefits

Allows flexibility to use factory terminated assemblies Provides superior weather resistance for FTTH and other outdoor applications Ensures functionality in harsh weather environments Can be used with industry standard cable designs Easily installs without special tooling Threaded style coupling Provides bend protection for installation and long term use

Features

Single fiber, SC-based connector Bird proof and rodent resistant IP68 water and dust protection Low profile in-line receptacle available No installation tools required 100 minimum mating cycles In-line connection available Operating temperature: -40° to 85°C Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm 33 lb. axial cable retention (150N)

Applications

FTTH Outdoor Areas Harsh Environment

Type	SM-UPC			SM-APC			MM-UPC
Type		Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB			≥30dB			≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

Main Products

Our Company

1. Compatible with Corning-OptiTap and H-Connector;

2. Factory terminated for high performance;

3. Available with one or both ends connectorized;

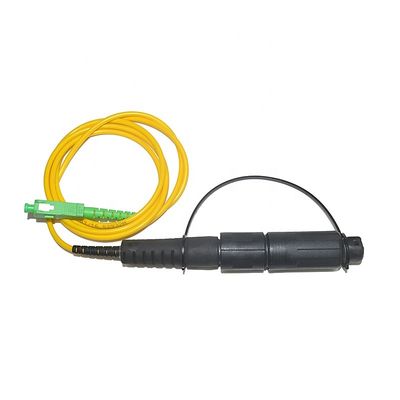

4. Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;

5. Available in dielectric or toneable;

6. Designed for aerial, direct-buried or duct installation;

7. IP-68 water and dust protection ;

8. -40℃~85℃ operating temperature;
