Name: Customized FTTH Solution , Fiber Drop Cable for Aerial Direct Buried
Brand: ODM/OEM
SKU: stap Waterproof patch cord
Price: 1.00 USD
Availability: InStock
Rating: 5 (179 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: FTTA Patch Cord

Use: FTTA

Warranty Time: 5

Network: Fiber Optic

Waterproof: IP68

Cable Structure: Outdoor FTTH Drop Cable/Round Cable/Flat Drop Cable

Fiber Type: G657A, G652D, Om1, Om2, Om3

Diameter Size: 4.8mm, 7.0mm

Inserion Loss: <0.2db

Return Loss: >55db

Jacket Color: Black

Factory: Yes

Application: Aerial, Direct Buried, Duct

Feature: Easy To Install

High Light:

Customized FTTH Solution

Aerial FTTH Solution Cable

Direct Buried Fiber Drop Cable

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: stap Waterproof patch cord

Payment & Shipping Terms

Packaging Details: Customized compatible drop Cable Fiber patch cord Optitap Connector,Individual bag or according to customer's request

Payment Terms: T/T, Western Union

Supply Ability: 200000 Piece/Pieces per Week

Gallery

Customized FTTH Solution , Fiber Drop Cable for Aerial Direct Buried

Product Description

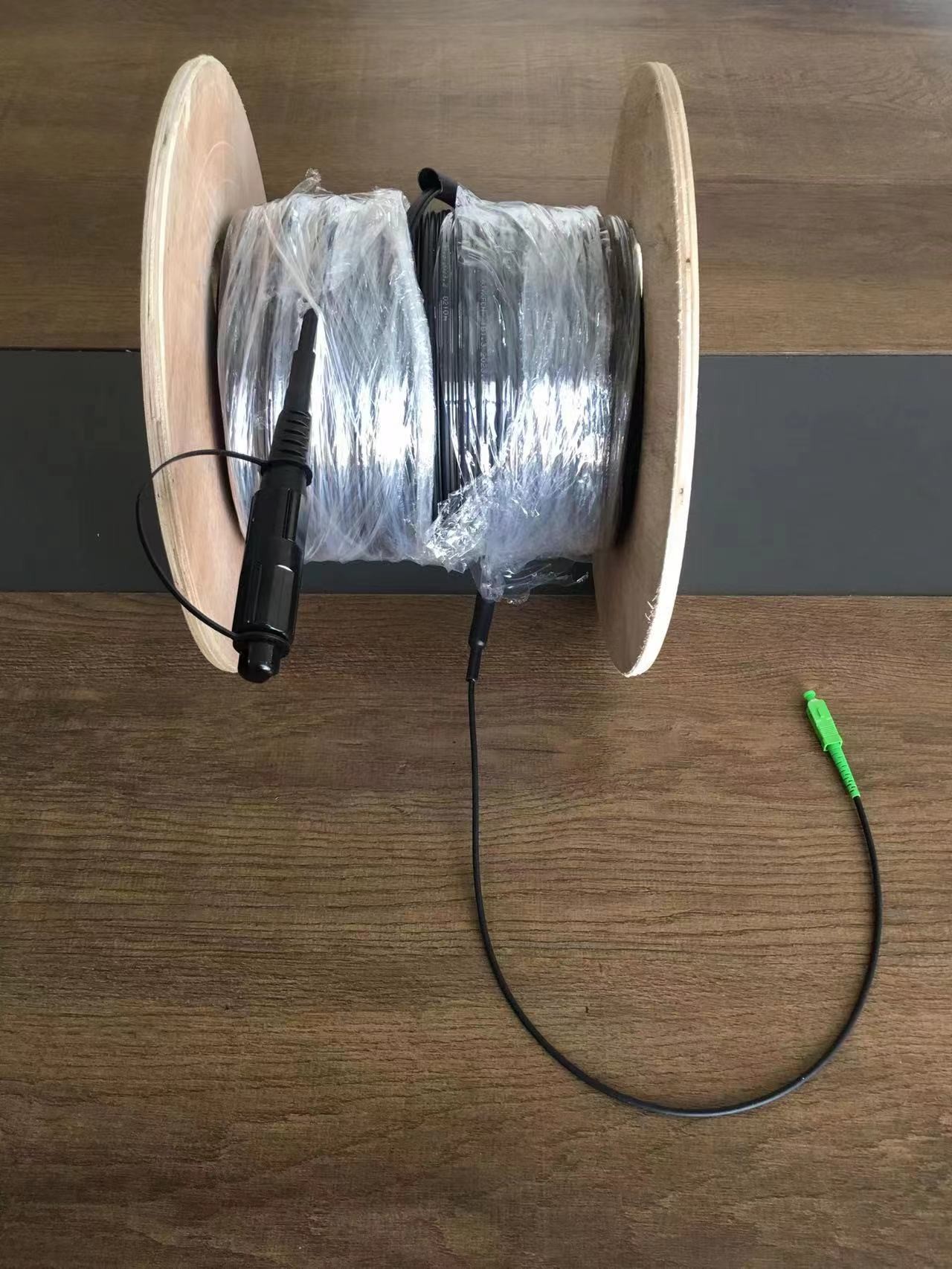

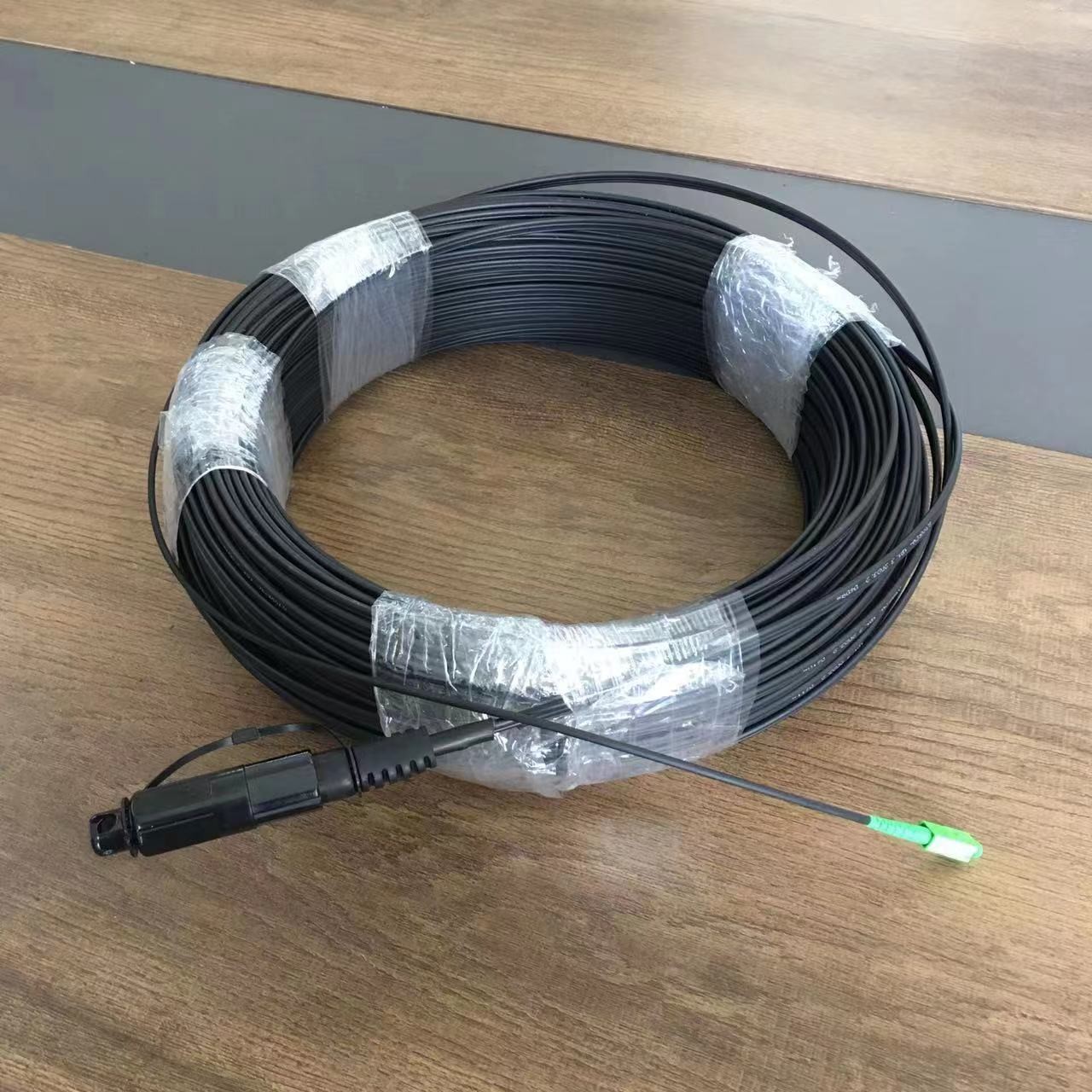

Customized compatible drop Cable Fiber patch cord Optitap Connector

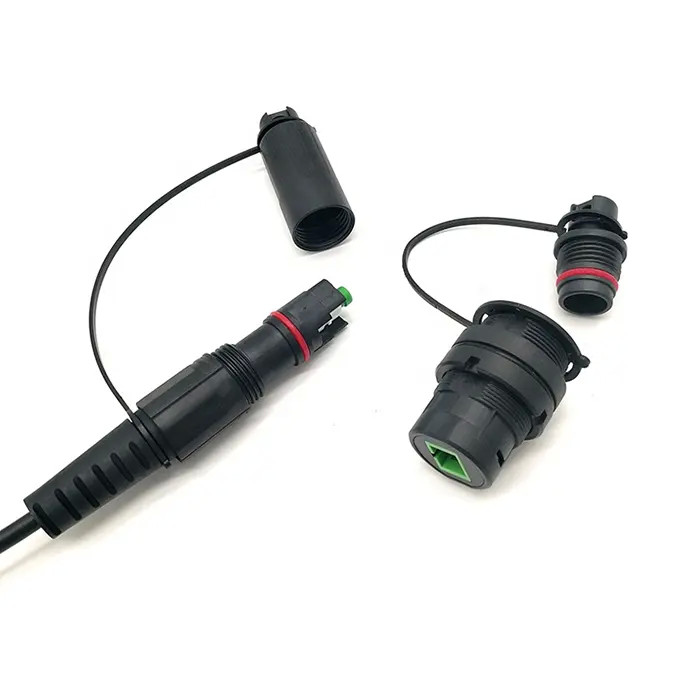

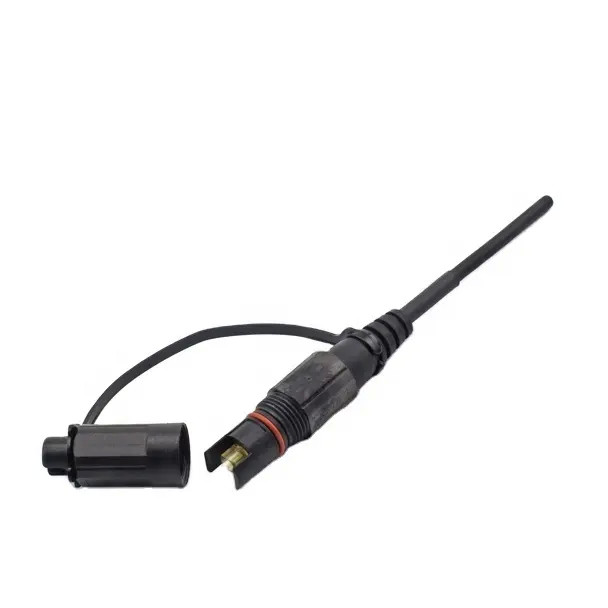

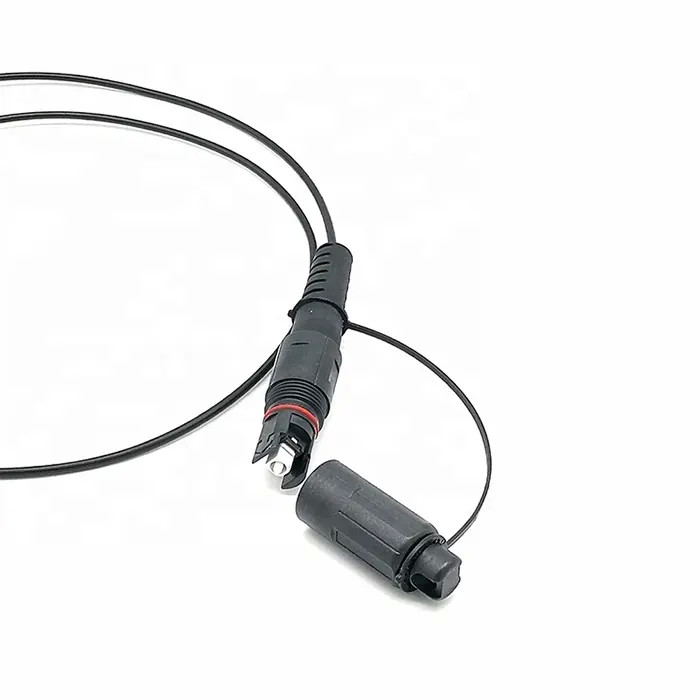

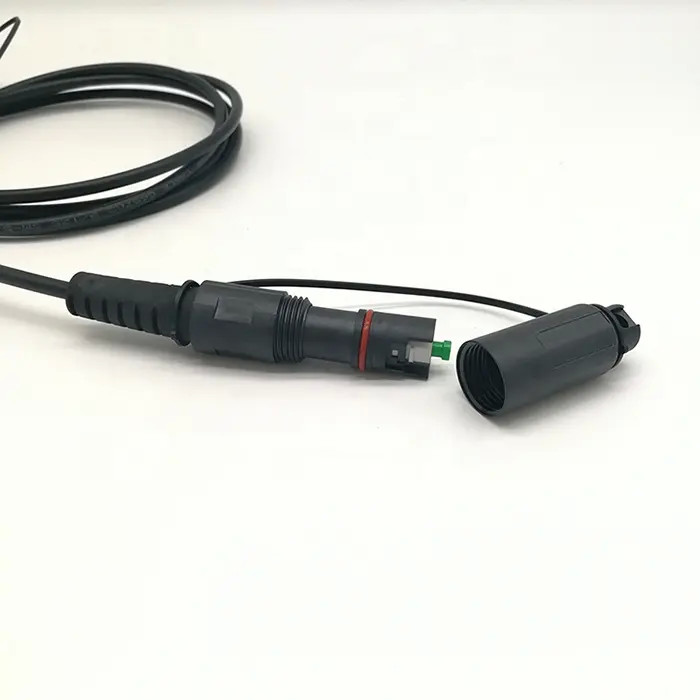

Compatible Optitap Connector

MINI IP cable assemblies provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. MINI IP cable assembly provides quick installation solutions and has good performance on mating with MINI IP adapter. Cable can be amored or non-amored. MINI IP connector utilizes optical fiber cables upon which network access points are pre-installed at customer-specified locations along the length of the cable.

Features/ Compatible Optitap Connector

1.Provides moisture and dust protection for use in harsh industrial environments. 2.IP68 protection, salt-mist proof, humidity proof, dust proof. 3.Drastically reduces field splicing with a predetermined loss at each waterproof tether access point. 4.Utilize traditional field installation techniques for aerial, below ground and duct applications. 5.Reduce installation time by as much as 50 percent per network access point. 6.100% optically tested to ensure quality performance assemblies. 7.Available in single mode and multimode styles to work with any common fiber type. 8.Broad temperature range (-40 to+ 85°C) is ideal for indoor or outdoor applications. 9.Mark on dust cap can help people who cannot distinguish between colors to operate.

Standards	Comply to GR-3120, GR-3152, IEC 61753-1,
Insertion Loss(MINI IP /SC&LC)	Max.0.5dB, Mean 0.15dB(8° angled)
Insertion Loss(MINI IP /MPO)	Max.0.6dB, Mean 0.35dB(8° angled)
Insertion Loss	Min 60dB(8° angled)
Return Loss	Min 60dB(8° angled)
Operation Temperature	-40to 85°C
Storage Temperature	-40 to 85°C
Cable Dimension	5.0mm, 7.0mm or 4.5*7.0mm flat
Dust Cap Max. Pulling Force	100Ib
Water Resistance	IP68

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
