Name: Customized 1 Fiber FTTH Solution Drop Cable MINI IP OptiTap To SC APC
Brand: ODM/OEM
SKU: MINI IP SC APC, Waterproof patch cord
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (195 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: FTTx Solutions

Use: FTTH, FTTH

Warranty Time: 5

Network: Fiber Optic

Cable Structure: Outdoor FTTH Drop Cable/Round Cable/Flat Drop Cable

Connector Type: MINI IP SC APC

Service Life: >1000times

Application: FTTH FTTB FTTX Network

Jacket Color: Black Or Grey

Operating Temperature: -40℃- +70℃

No. Of Fiber: Customized

Certificate: ISO,CE,ROHS

High Light:

FTTH Solution Drop Cable

1 Fiber FTTH Solution Cable

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: MINI IP SC APC, Waterproof patch cord

Payment & Shipping Terms

Packaging Details: 1pcs in 1packing

Payment Terms: T/T, Western Union

Supply Ability: 5000 Unit/Units per Day

Gallery

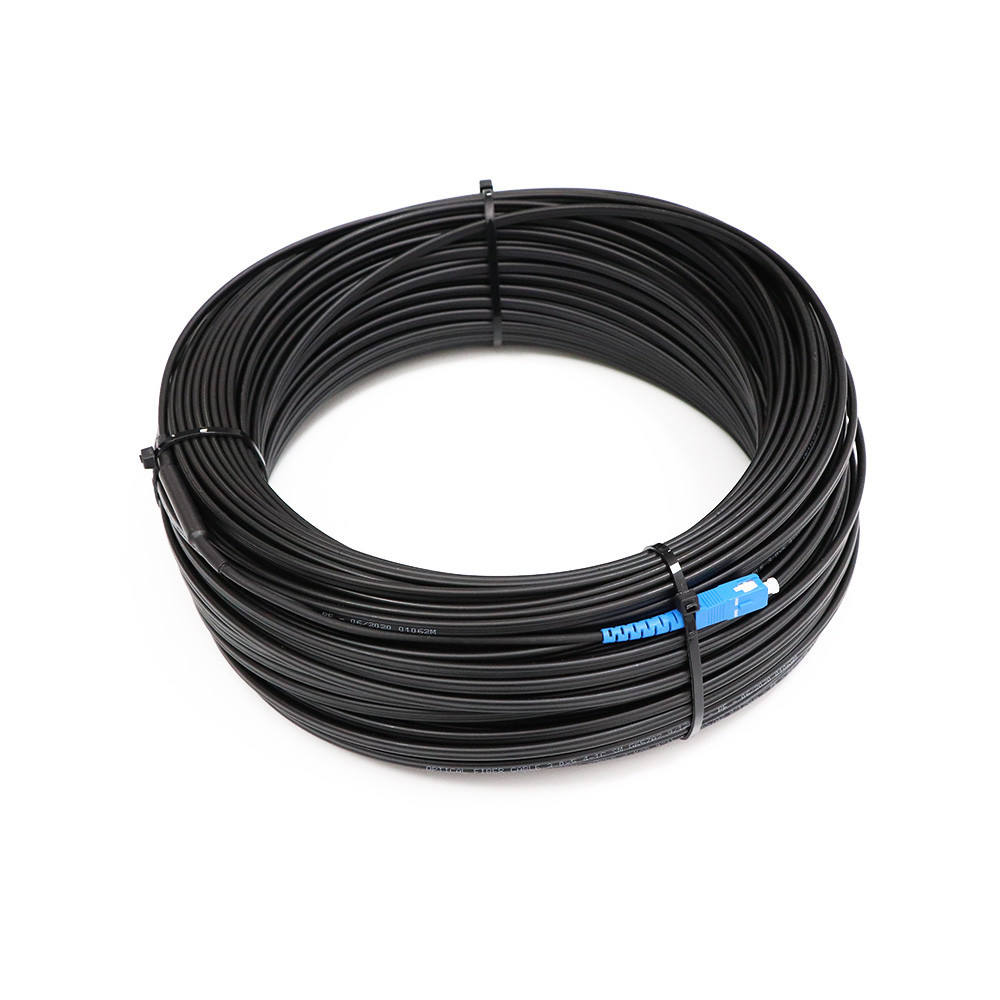

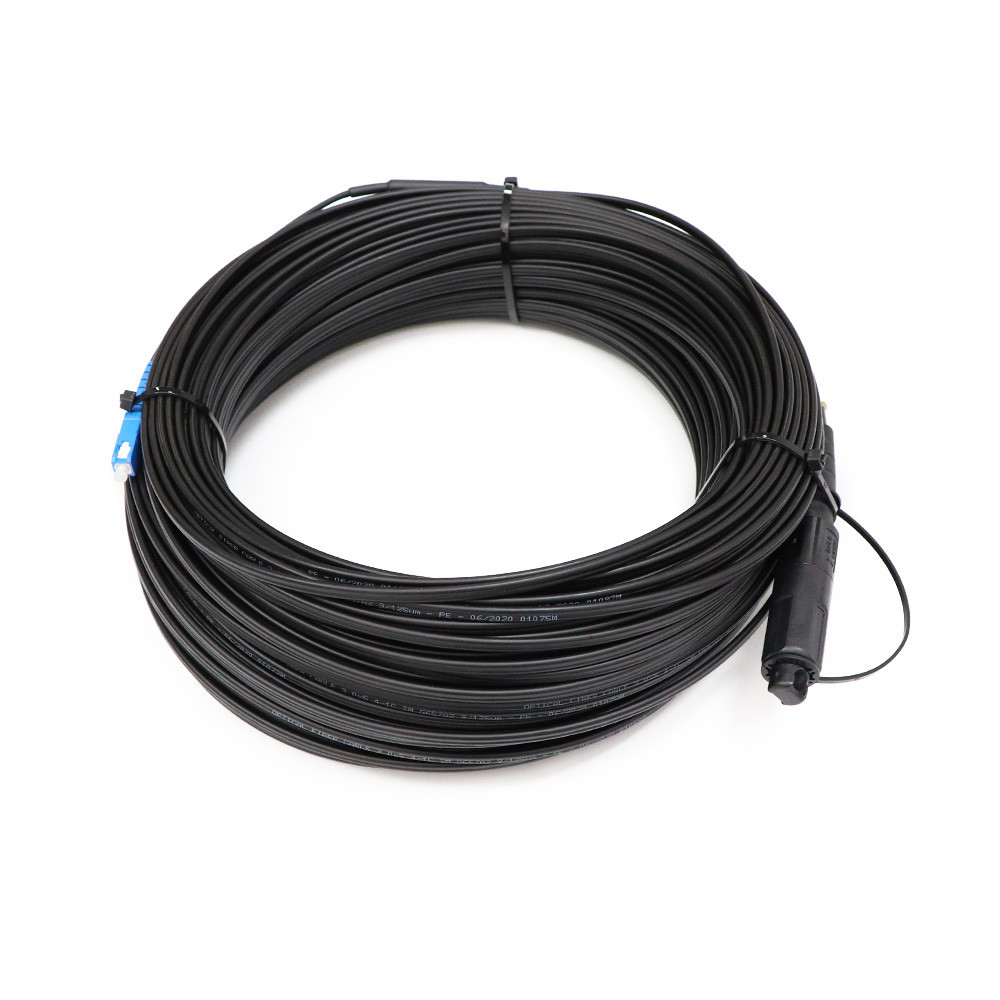

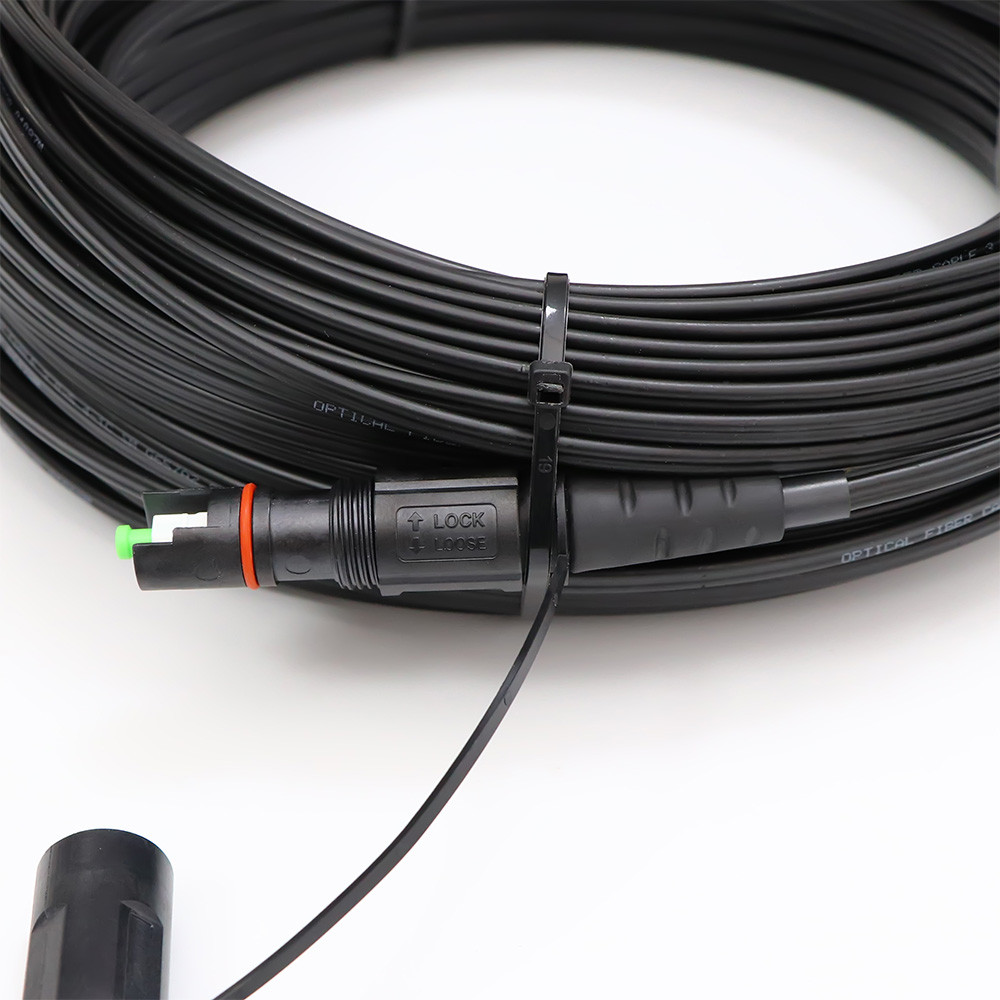

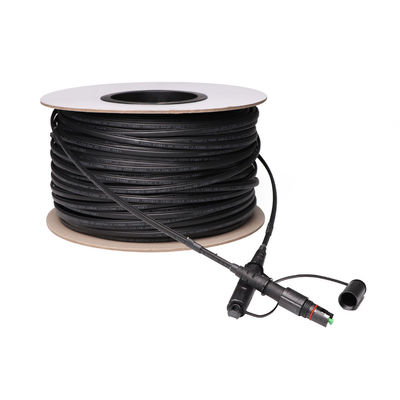

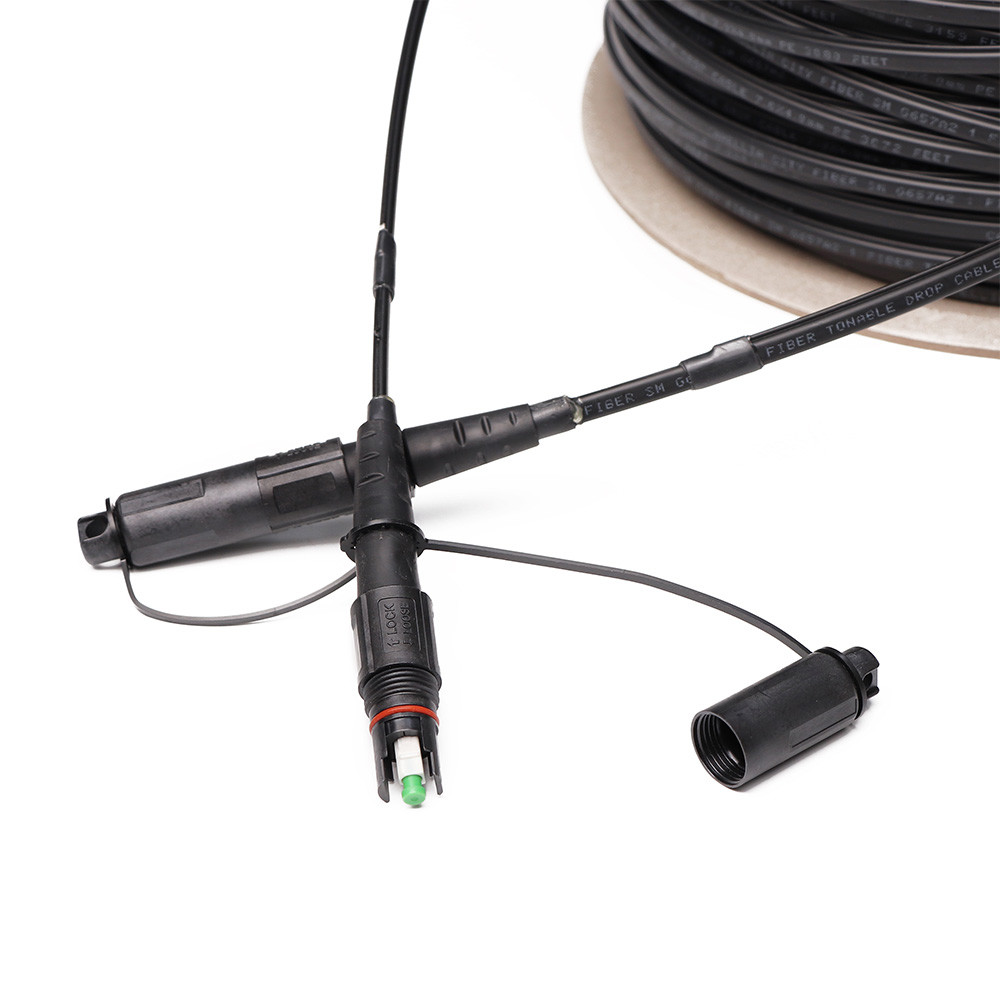

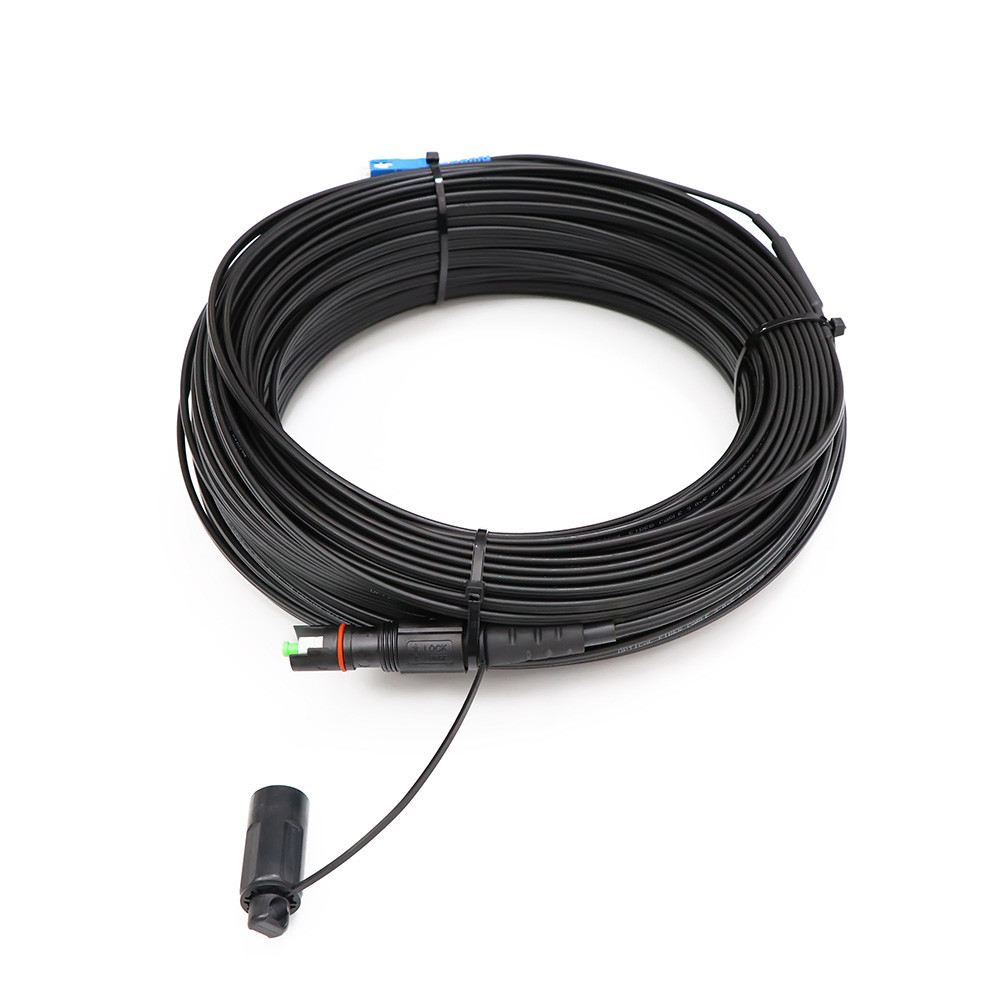

Customized 1 Fiber FTTH Solution Drop Cable MINI IP OptiTap To SC APC

Product Description

Chinese Factory 1 Fiber Fiber Optic H connector MINI IP SC APC OptiTap to SC/APC FTTH drop Cable Assembly

DYS Mini IP SC APC Cable Assembly

DYS Mini IP SC APC Connector Compatible with Corning Optitap Adapter. IP68 Outdoor waterproof field assembly fast connector is factory -terminated, it provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity and Suitable for flat drop cable,3.0mm round cable, 5.0mm round cable. the environmentally sealed and hardened connector to reduce the cost and the time of drop cable deployment in optical access networks.

Features

1. Available in multiple fiber lengths to meet all your FTTX design drop deployment. 2. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments. 3. Designed to reduce the cost and time of drop fiber deployment in the network. 4. Provides superior weather resistance for FTTA and other outdoor applications. 5. Can be installs without special tooling. 6. 100% tested assemblies built in a controlled environment. 7. Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber. 8. Flexibility and reliability provides fast and simple deployments within a network. 9. Provides bend protection for installation and long term use. 10. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.

Applications

FTTH Outdoor Areas Harsh Environment

Type	SM-UPC			SM-APC			MM-UPC
Type		Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB			≥30dB			≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.

Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.

Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
