Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector

$1.00 - $6.50/pieces
Price
Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Adapter & Connectors
Use: FTTA
Model Name: SC/APC Waterproof Connector
Cable Type: Flat Drop Cable 2.*3.0mm,3.0mm ,5.0mm
Waterproof: IP68
No. Of Fiber: 1
Mechaincal Durability: 500matings
Fiber Type: Singlemode
Application: FTTA
Inserion Loss: <0.2db
Return Loss: >55db
Material: PEI
High Light:

Reinforced FTTH Solution Connector

,

Waterproof FTTH Solution Connector

,

Singlemode SC APC Fast Connector

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, ce
Model Number: Waterproof Fast Connector for Huawei
Payment & Shipping Terms
Packaging Details: Individual bag or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 200000 Piece/Pieces per Quarter
Product Description
Product Description
SC/APC Waterproof Fast Connector Reinforced Fiber Optic Connector For Huawei

Applications

1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station. 5
. FTTX wiring projiect.

Features

1. Compact size,easy to operate,durable.
2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. IP68 water and dust protection.(1M,1 hour)
5. Spiral clamping mechanism ensures long-term reliable connection.
6. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
7. Low operating temperature: - 10 ℃ ~ + 70 ℃
8. Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
9. Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

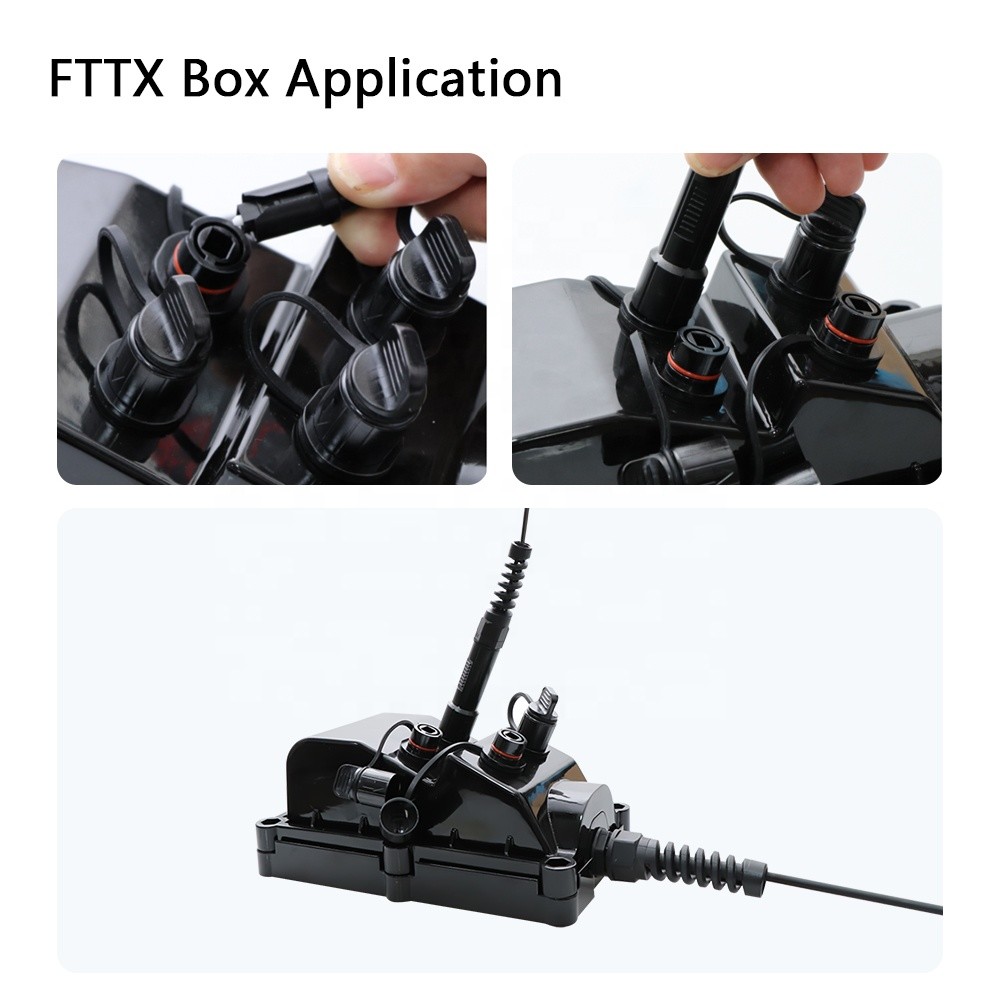

Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector 0

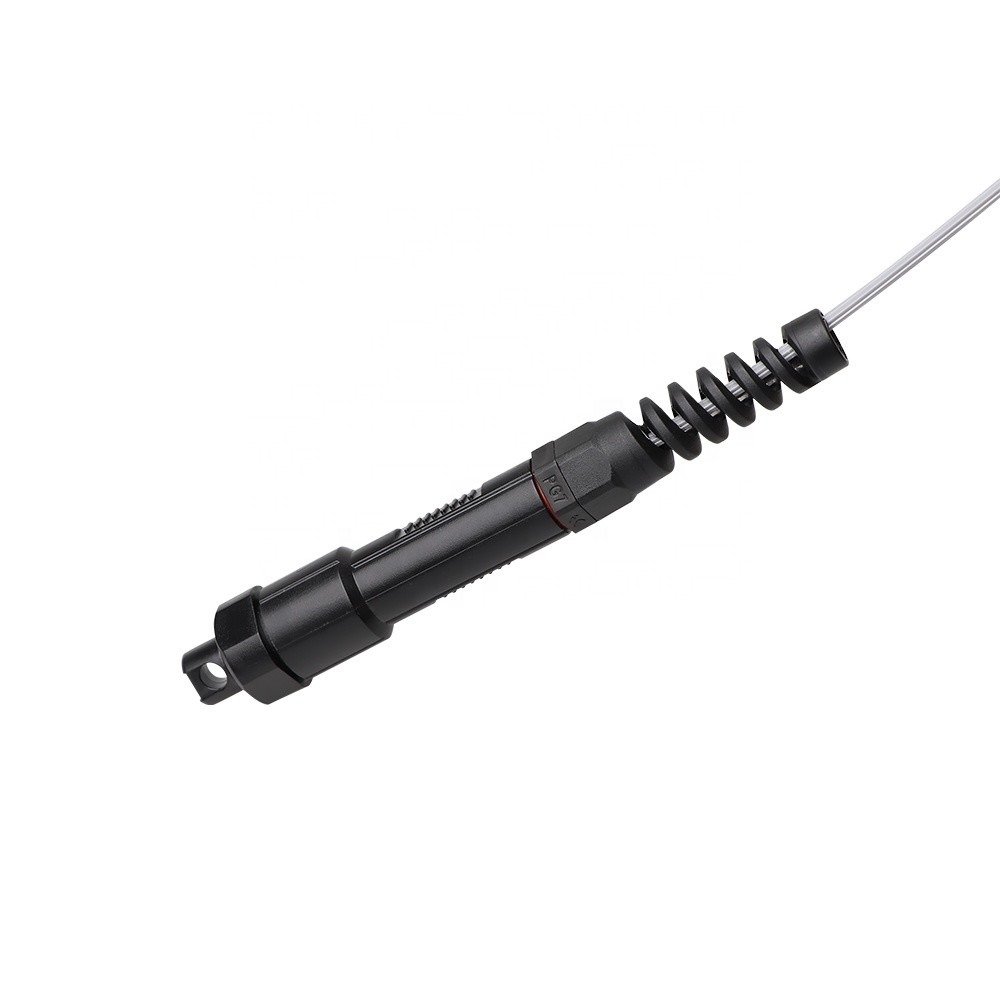

Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector 1
Item
Parameter
Cable Scope
Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
Size
51*9*7.55mm
Coating Diameter
250μm
Mode
SM
Operation Time
about 15s(exclude fiber presetting)
Insertion Loss
≤ 0.3dB(1310nm & 1550nm)
Return Loss
≤ -50dB for UPC, ≤ 55dB for APC
Success Rate
>98%
Reusable Times
>5 times
Tighten Strength of Naked Fiber
>5 N
Tensile Strength
>30 N
Temperature
-40 ~ +85 C
Drop Test
IL ≤ 0.3dB

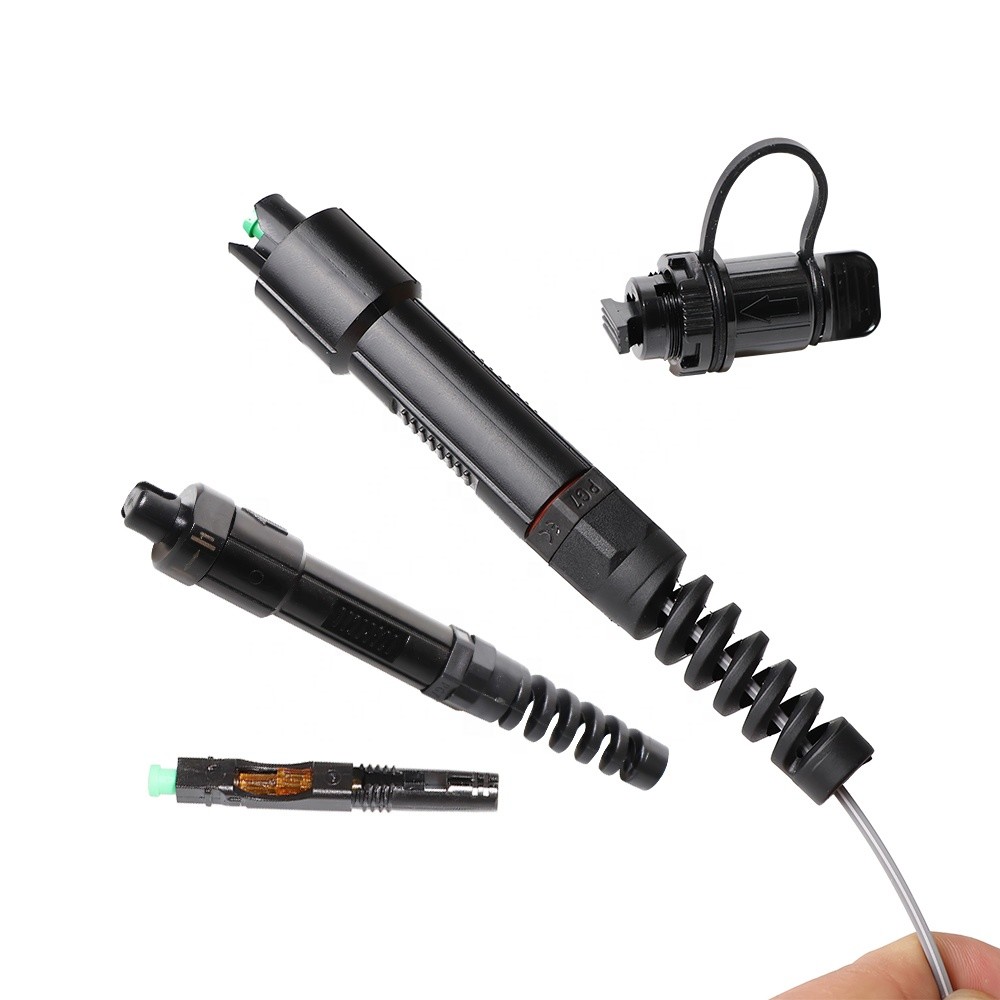

Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector 2

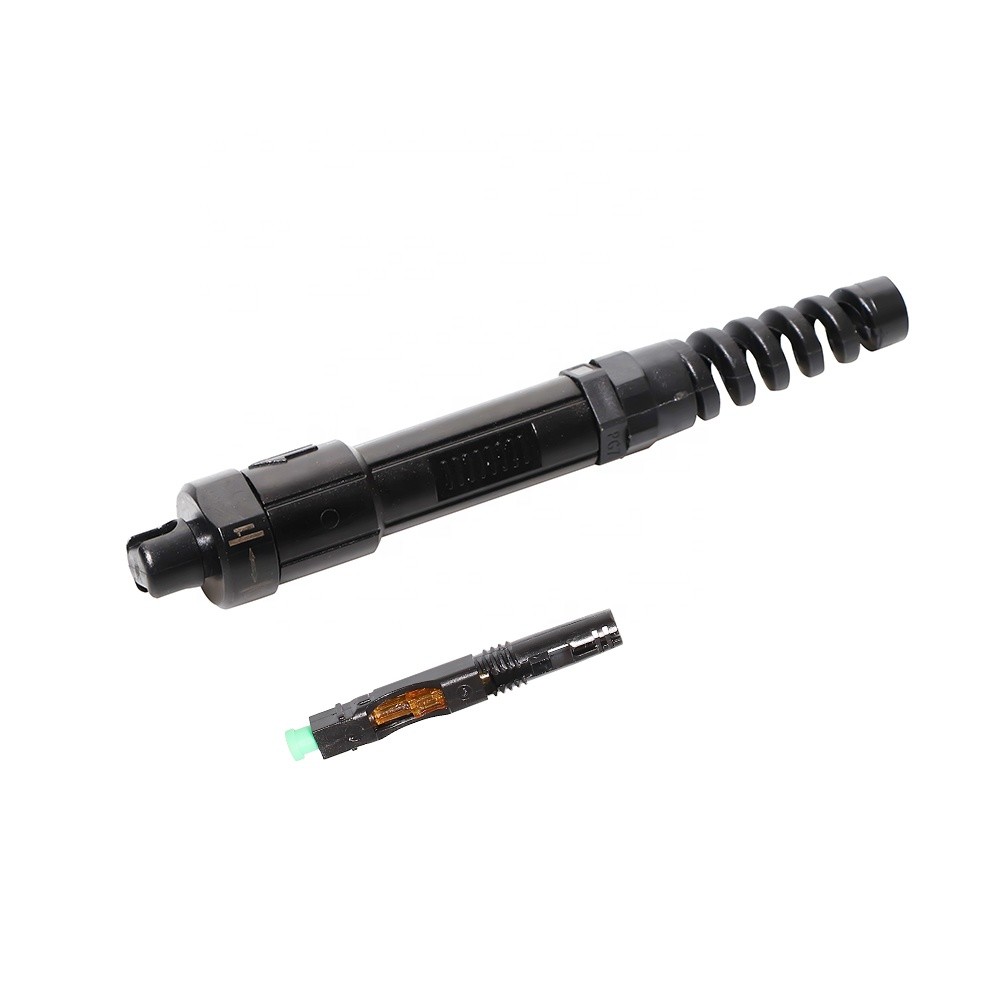

Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector 3

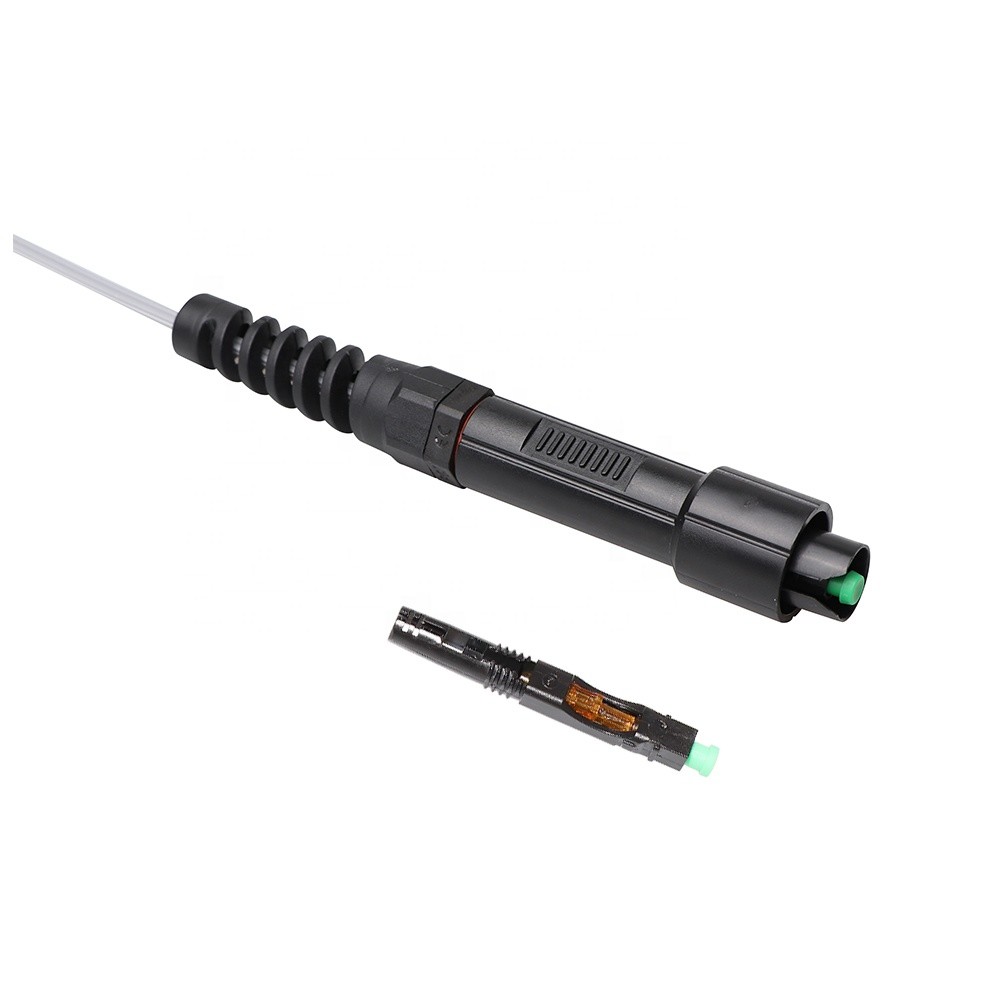

Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector 4
Main Products

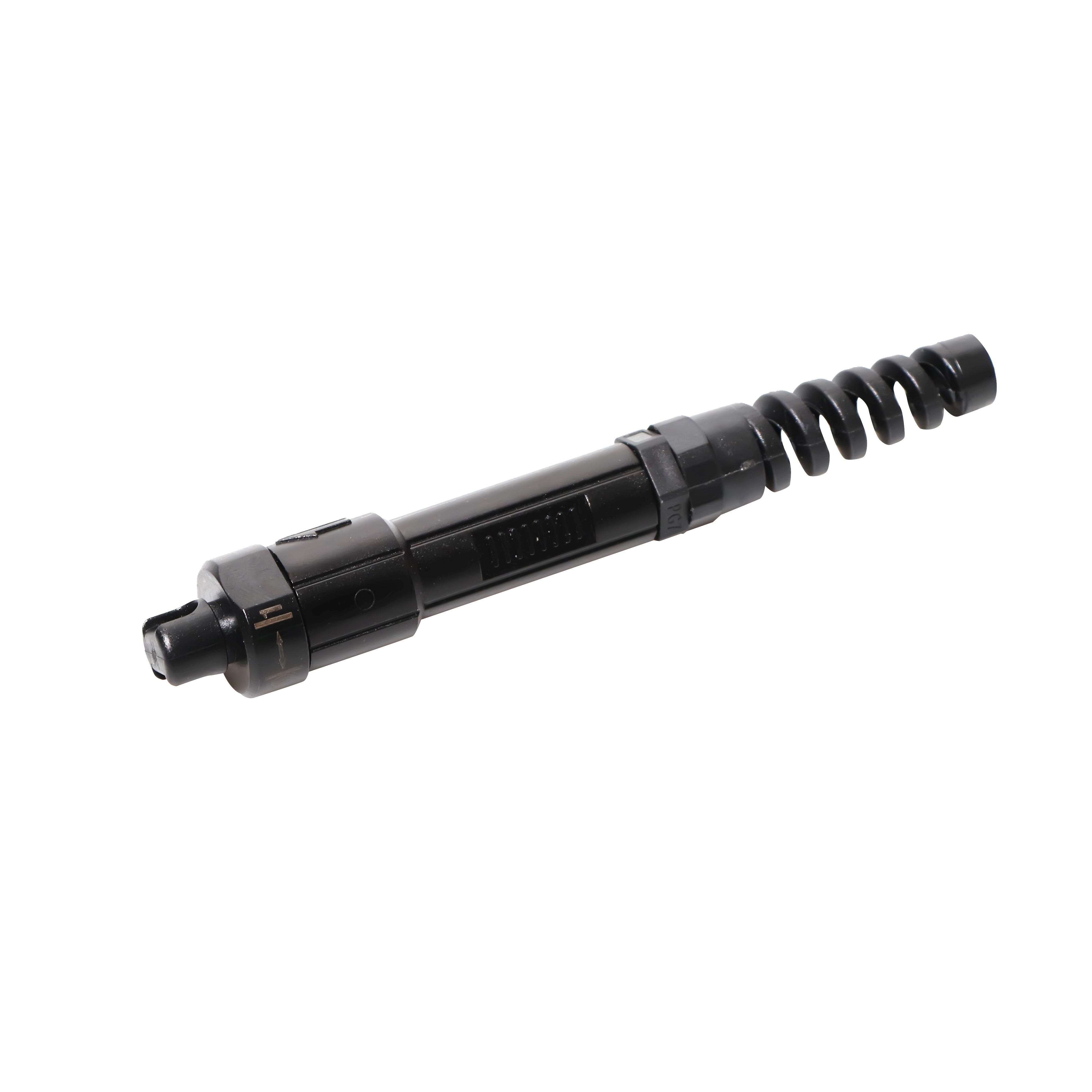

Singlemode FTTH Solution , Reinforced Waterproof SC APC Fast Connector 5
