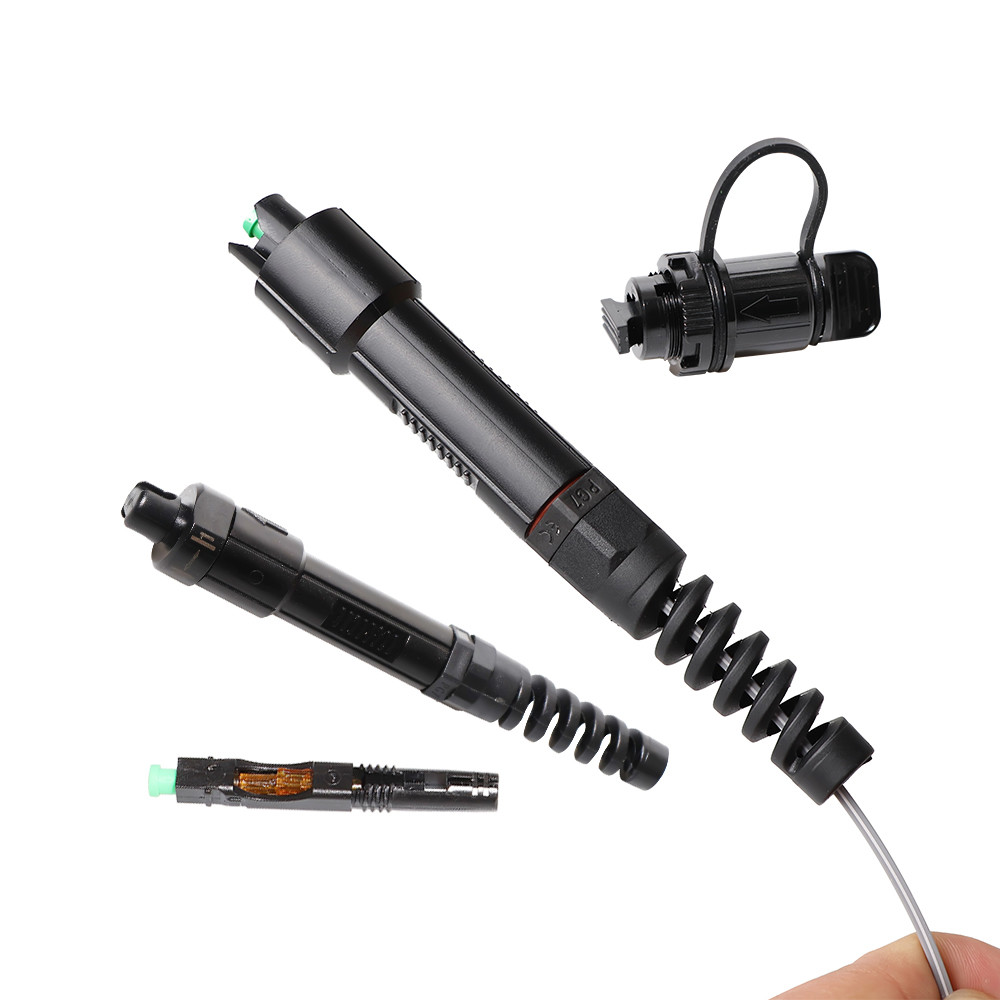

FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector

$1.00 - $6.50/pieces
Price
FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Adapter & Connectors
Use: FTTA
Model Name: Reinforced Optical Adapter For Huawei
Cable Type: 2.*3.0mm,3.0mm ,5.0mm
Waterproof: IP68
No. Of Fiber: 1
Mechaincal Durability: 500matings
Fiber Type: Singlemode
Application: FTTA
Inserion Loss: <0.2db
Return Loss: >55db
Material: PEI
High Light:

Fiber Optical Adapter Reinforced

,

FTTH Fiber Optical Adapter
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: Reinforced Adapter for Huawei
Payment & Shipping Terms
Packaging Details: Individual bag or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 200000 Piece/Pieces per Quarter
Product Description
Product Description
FTTH Field Assembly Optical Reinforced Adapter FAC Fast Connector Kit for Huawei

Applications

1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projiect.

Features

1. Compact size,easy to operate,durable.

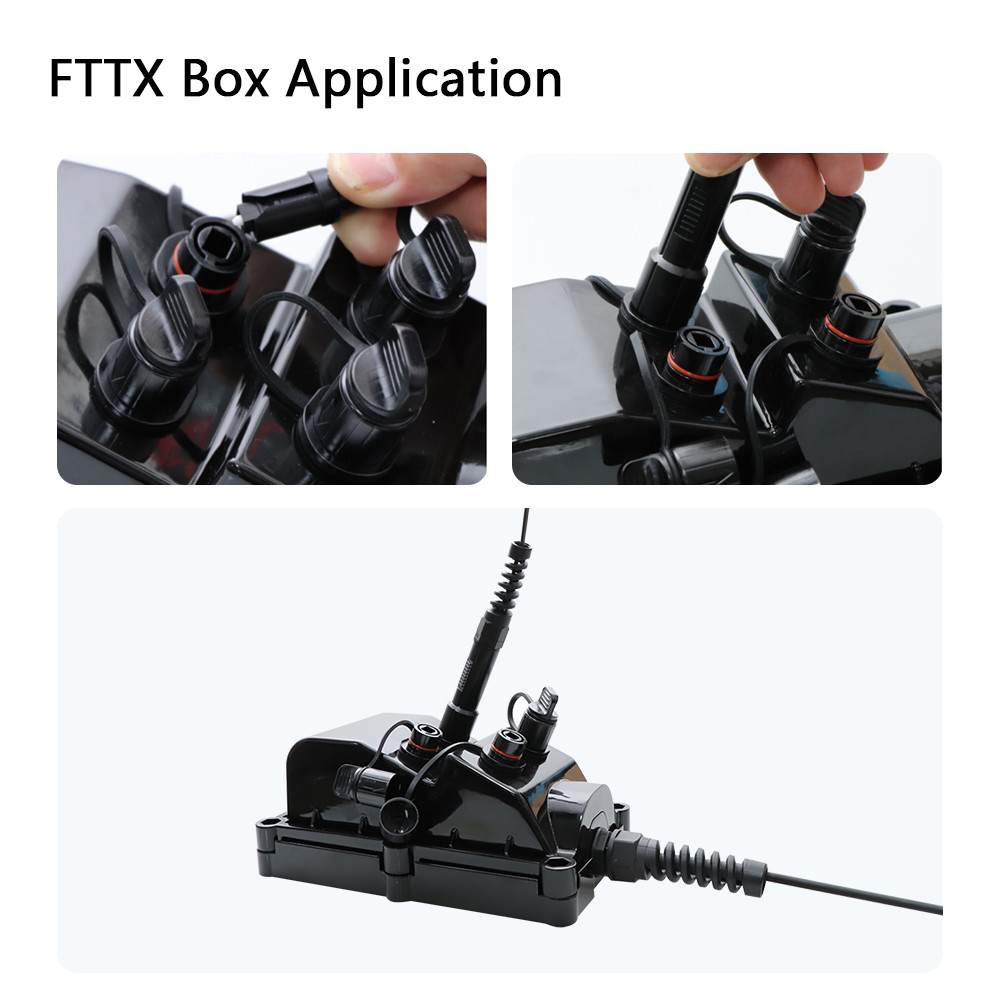

2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. IP68 water and dust protection.(1M,1 hour)
5. Spiral clamping mechanism ensures long-term reliable connection.
6. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
7. Low operating temperature: - 10 ℃ ~ + 70 ℃
8. Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
9. Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

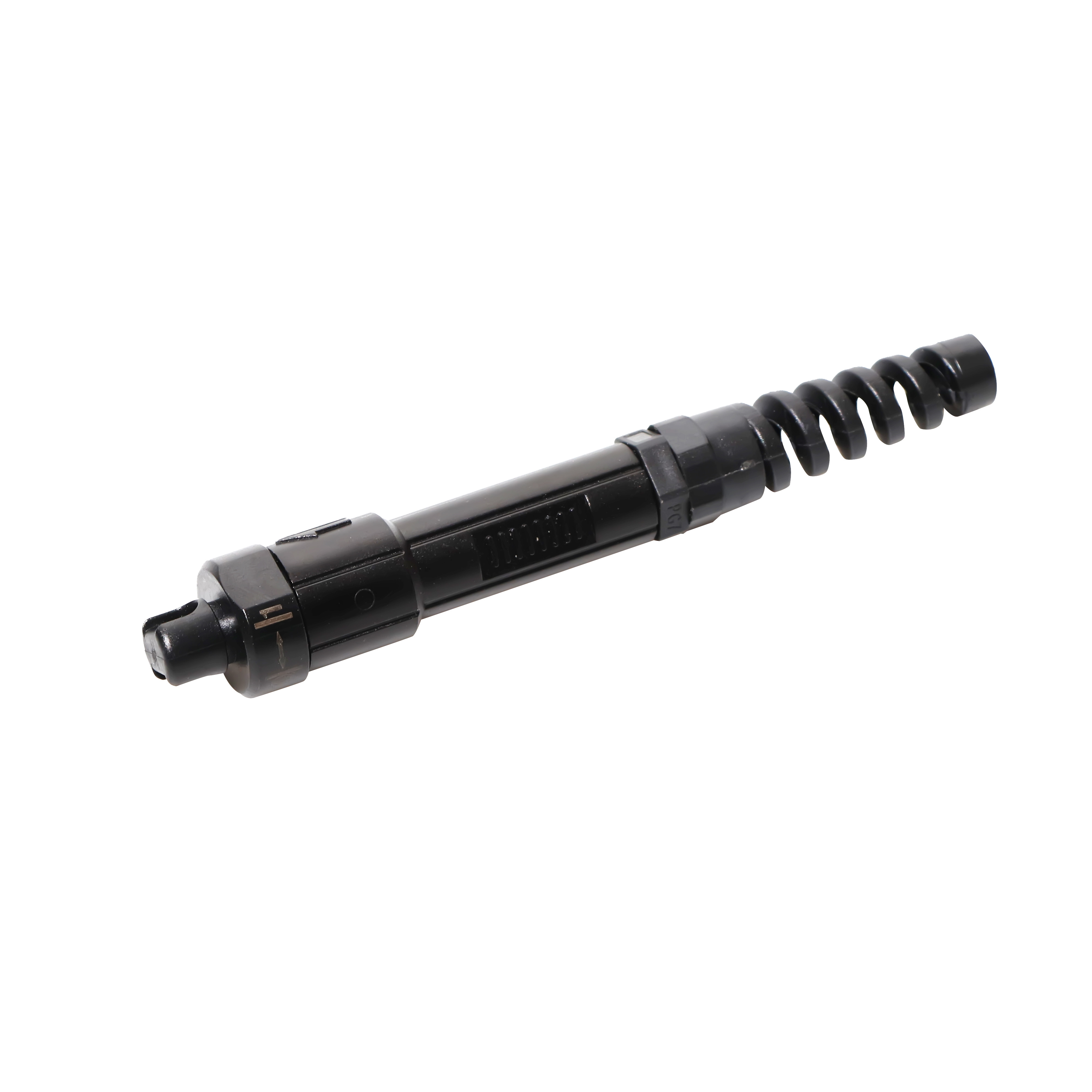

FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector 0

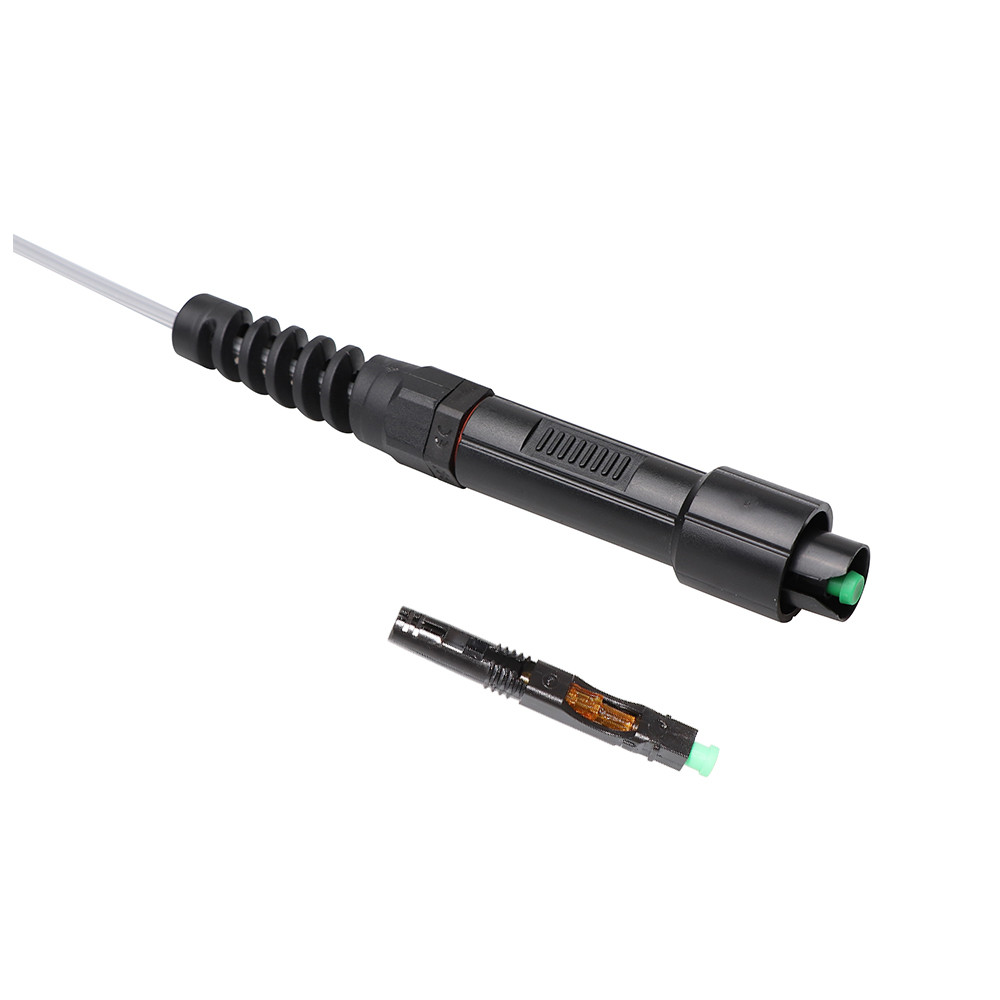

FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector 1
Item
Parameter
Cable Scope
Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
Size
51*9*7.55mm
Coating Diameter
250μm
Mode
SM
Operation Time
about 15s(exclude fiber presetting)
Insertion Loss
≤ 0.3dB(1310nm & 1550nm)
Return Loss
≤ -50dB for UPC, ≤ 55dB for APC
Success Rate
>98%
Reusable Times
>5 times
Tighten Strength of Naked Fiber
>5 N
Tensile Strength
>30 N
Temperature
-40 ~ +85 C
Drop Test
IL ≤ 0.3dB

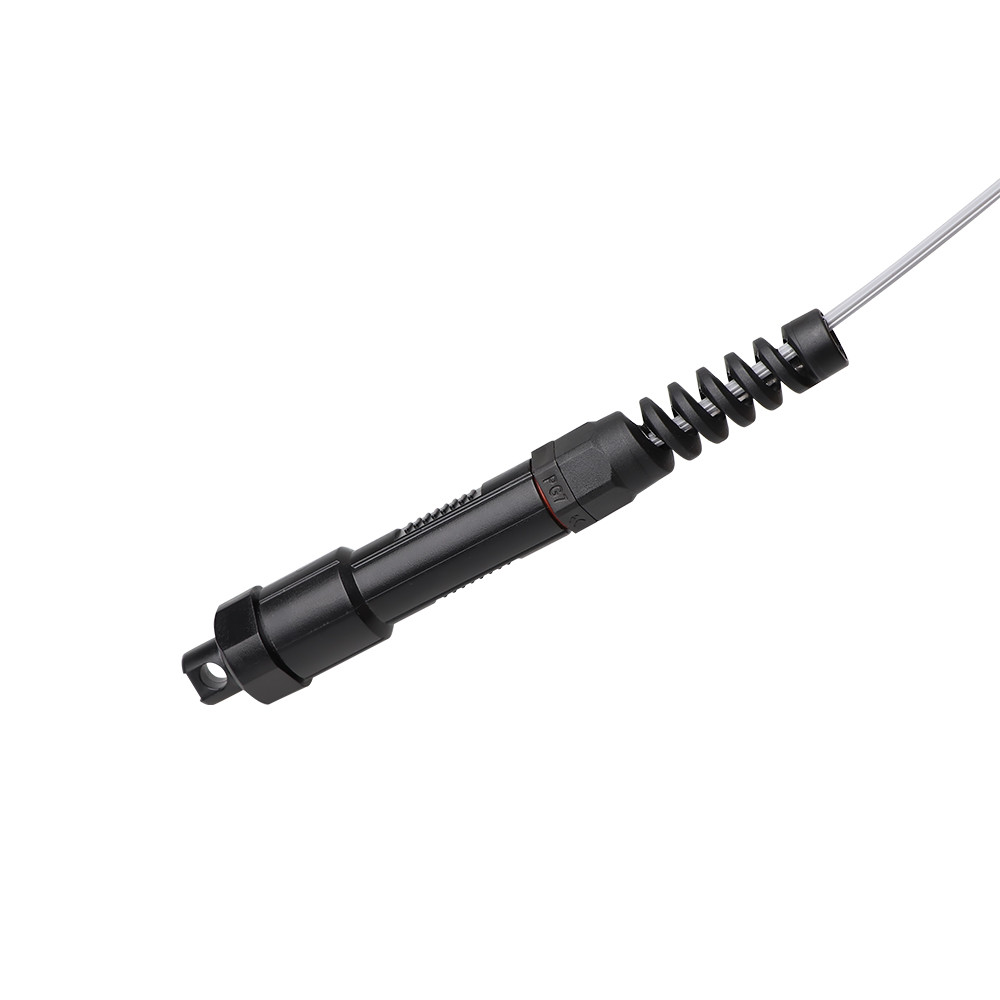

FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector 2

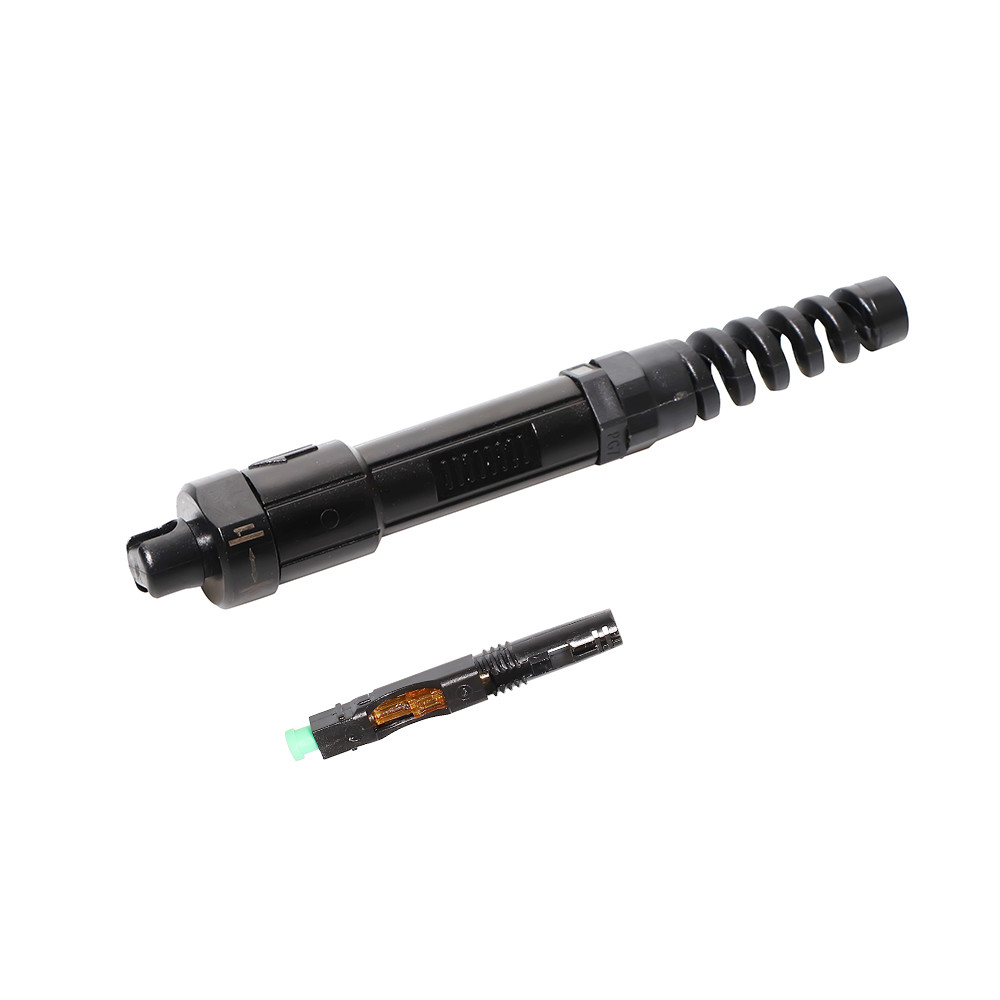

FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector 3
FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector 4
Main Products
FTTH Field Fiber Optical Adapter Reinforced with FAC Fast Connector 5
Our Company
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
