SC APC Waterproof FTTH Solution Reinforced With Optitap H Connector

$1.00 - $6.50/pieces
SC APC Waterproof FTTH Solution Reinforced With Optitap H Connector
Features Gallery Product Description Request A Quote
Type: Fiber Adapter & Connectors
Network: Fiber Optic
Model Name: Field Assembly Reinforced Optical Connector
Feature: Compatible With Optitap ( Corning ) , H Connector ( Amphenol )
Cable Type: Flat Drop Cable 3.0mm,5.0mm, Flat 2.0*3.0mm
Waterproof: IP68
No. Of Fiber: 1
Fiber Type: Singlemode
Application: FTTX System
Inserion Loss: <0.2db
Return Loss: >55db
Material: PEI
High Light:

FTTH Solution Reinforced


H Connector FTTH Solution

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: Ttap Field Assembly Reinforced Connector
Payment & Shipping Terms
Packaging Details: Individual bag or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 200000 Piece/Pieces per Quarter
Product Description
Product Description
SC/APC Waterproof Fast Connector Reinforced Fiber Optic Connector Compatiable With Optitap,H connector

Features/Compatible Optitap Fiber Connector

1. Compact size,easy to operate,durable.
2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. Spiral clamping mechanism ensures long-term reliable connection.
5. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
6. Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

Applications/Compatible Optitap Fiber Connector

1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projiect.

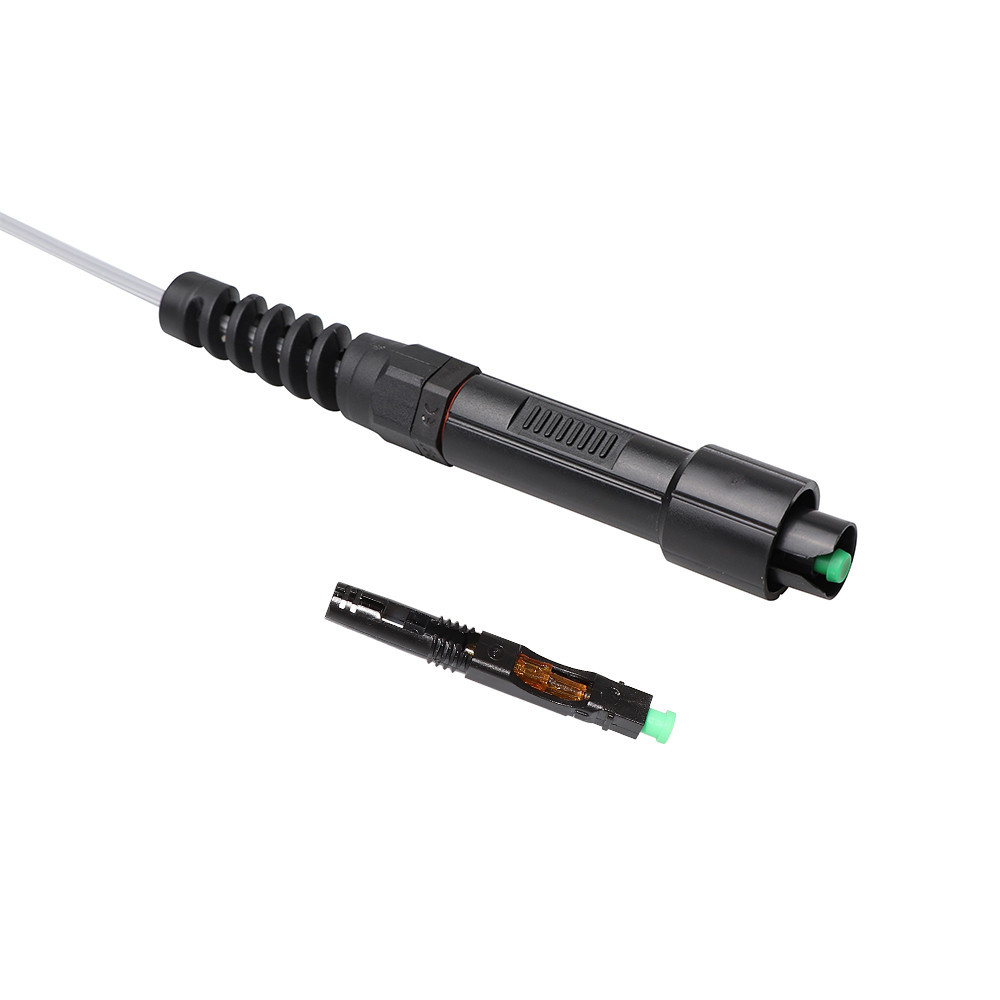

SC APC Waterproof FTTH Solution Reinforced With Optitap H Connector 0

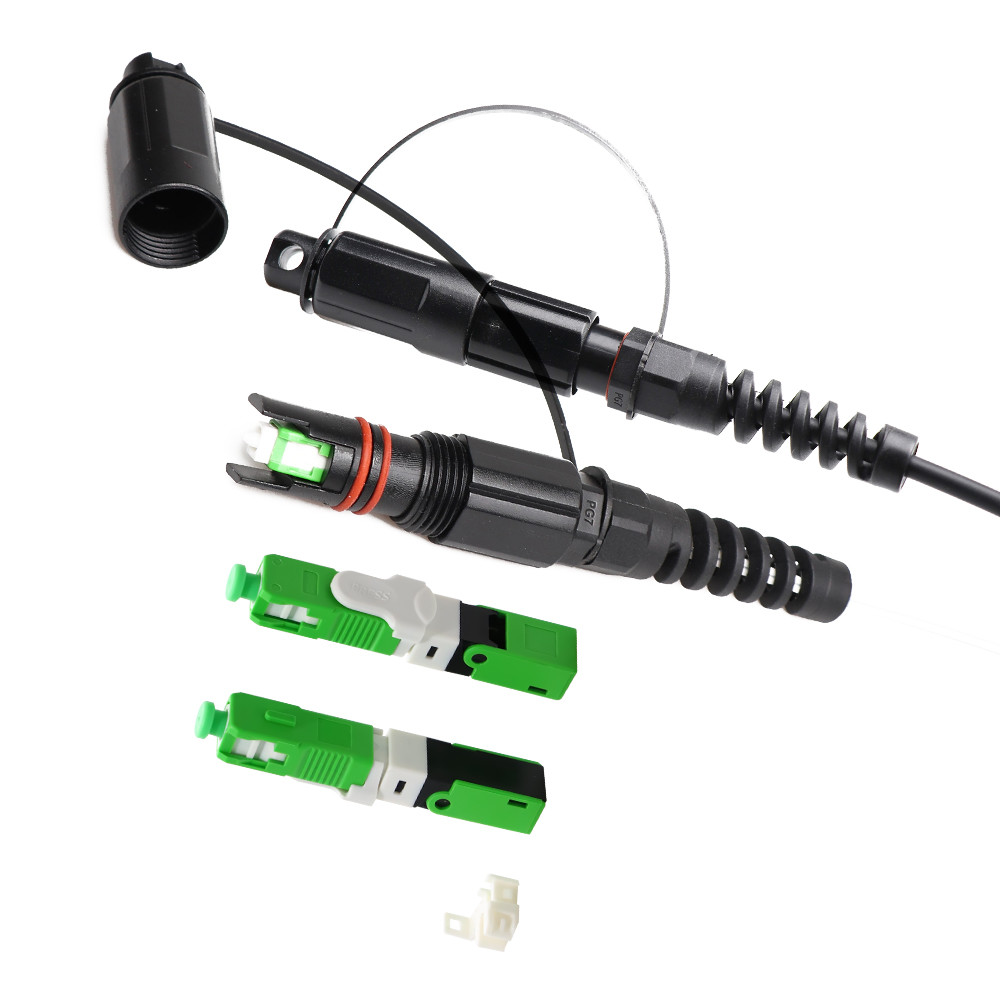

SC APC Waterproof FTTH Solution Reinforced With Optitap H Connector 1
Waterproof Rate
IP68.(1M ,1hour)
Applicable optical cable
2.0x3.0mm,3.0mm ,5.0mm
Insertion loss
Return loss
End face performance
Conform to YD T 2341.1-2011
Mechanical durability
1000 times
Cable tension
2.0x3.0mm (Ttap Fast Connector)
≥30N; 2Minute
2.0mm,3.0mm (Ttap Connector)
≥30N; 2Minute
5.0mm (Ttap Connector)
≥70N; 2Minute
Torsion of optical cable
Drop performance
Allow 10 drops under 1.5m height without abnormal performance
Operation temperature
2.0x3.0mm (Ttap Fast Connector)
2.0mm,3.0mm (Ttap Connector)
5.0mm (Ttap Connector)
Hot and humid working environment
Long term operation under 90% relative humidity ,70 ℃

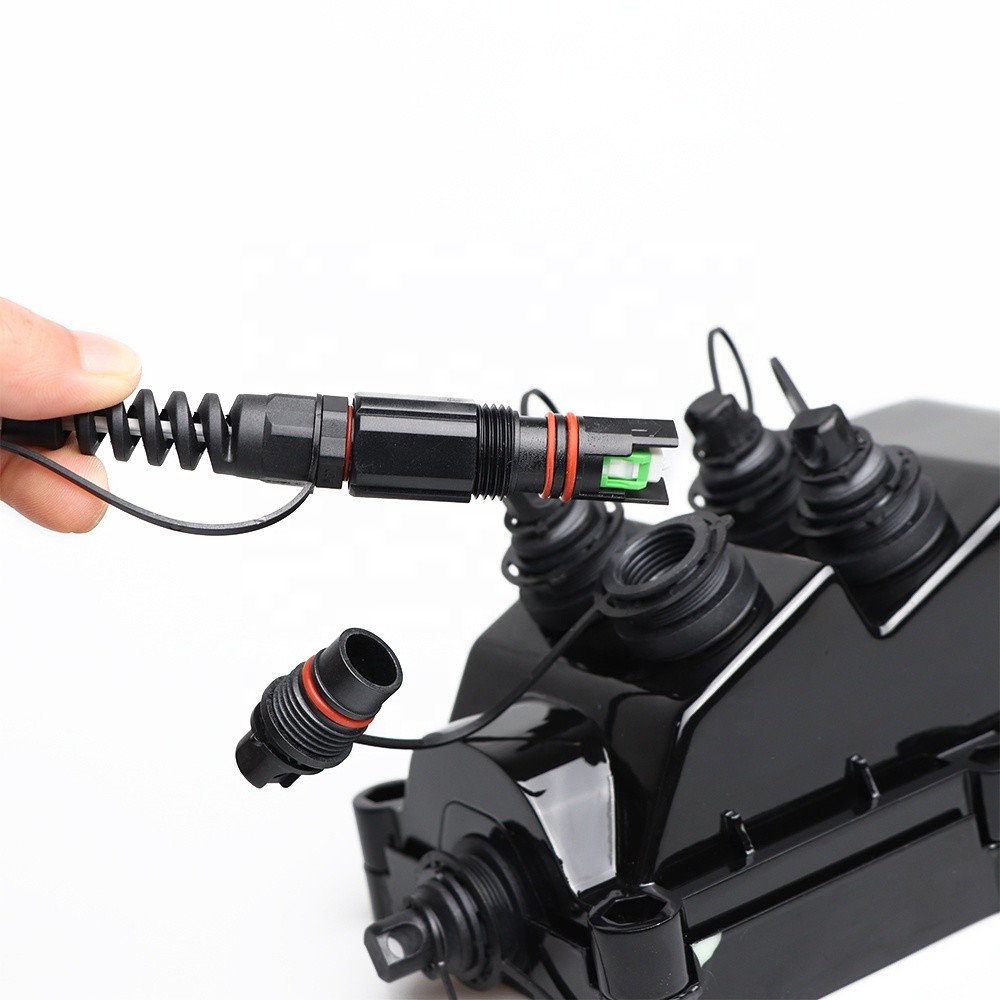

SC APC Waterproof FTTH Solution Reinforced With Optitap H Connector 2

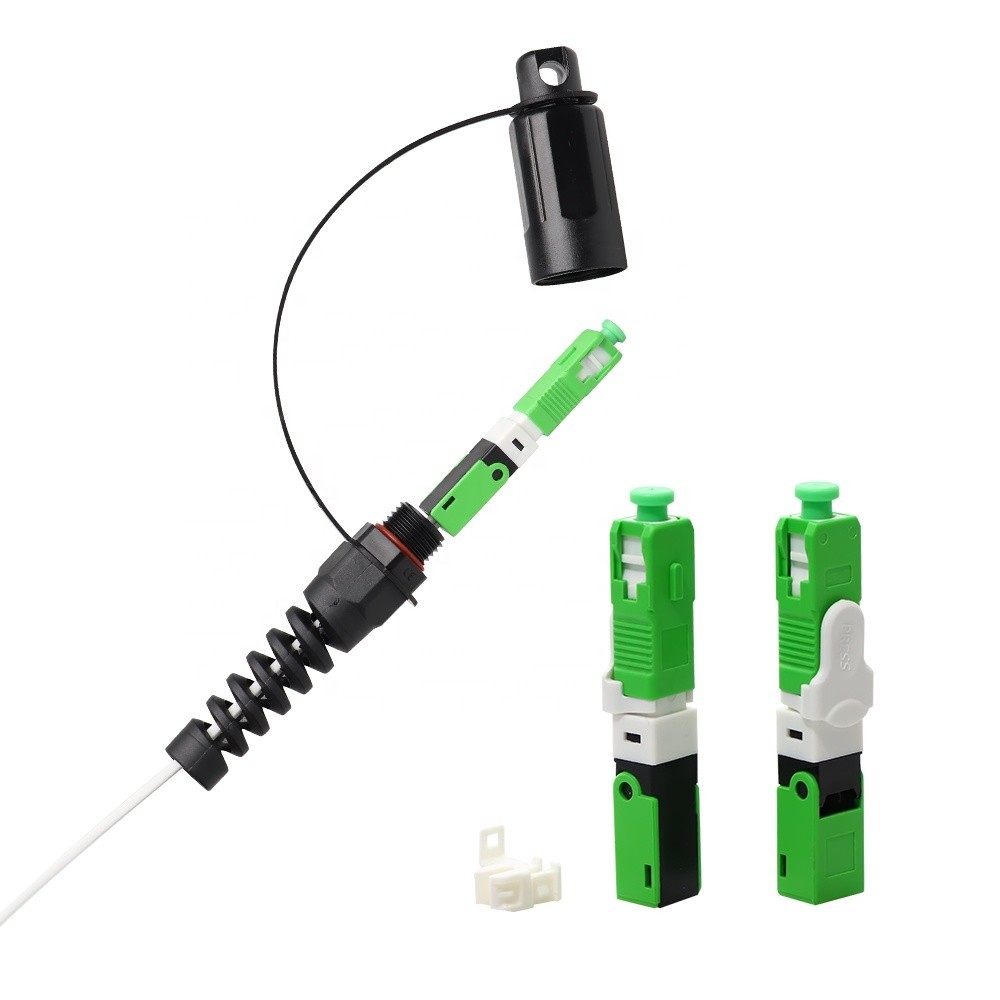

SC APC Waterproof FTTH Solution Reinforced With Optitap H Connector 3
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

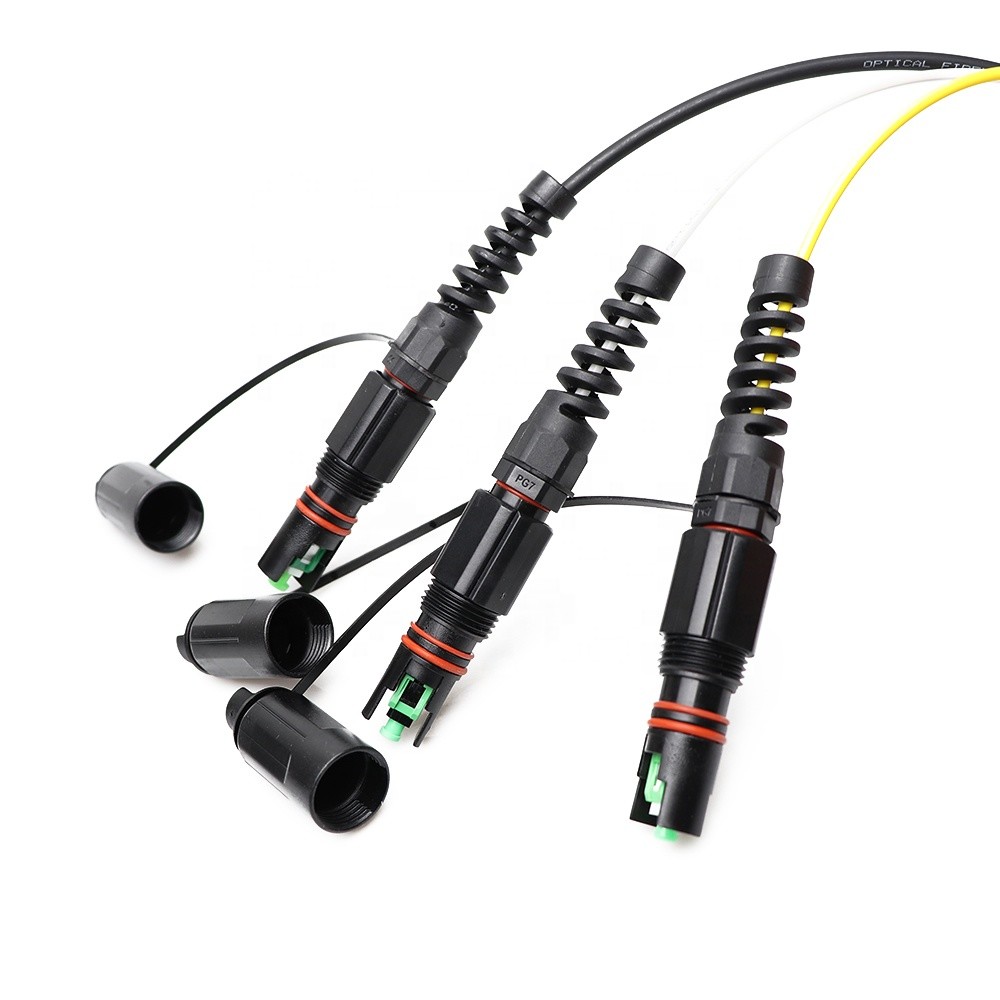

SC APC Waterproof FTTH Solution Reinforced With Optitap H Connector 4
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
