Name: OptiTap SC Fiber Patch Cord Single G657A1 3.0mm Waterproof For Outdoor
Brand: ODM/OEM
SKU: IPSC-APC H Optic patch cord
Price: 8.50 USD
Availability: InStock
Rating: 4.5 (139 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: FTTx Solutions

Use: FTTH, FTTH

No. Of Fiber: 1.

Waterproof: IP67

Fiber Type: G657A, G652D, Om1, Om2, Om3

Diameter Size: 4.8mm, 7.0mm

Inserion Loss: <0.2db

Return Loss: >55db

Jacket Color: Black

Factory: Yes

Certifaction: ISO9001, ROHS

High Light:

OptiTap sc fiber patch cord

sc fiber patch cord 3.0mm

G657A1 optitap patch cord

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: IPSC-APC H Optic patch cord

Payment & Shipping Terms

Packaging Details: Individual bag or according to customer's request

Payment Terms: T/T, Western Union

Supply Ability: 200000 Piece/Pieces per Week

Gallery

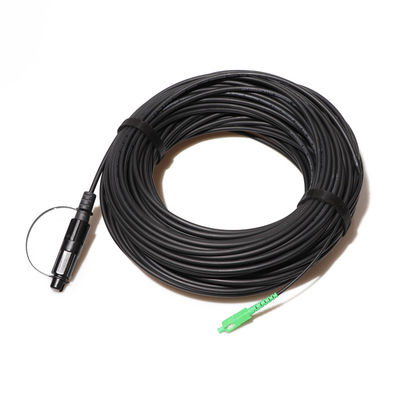

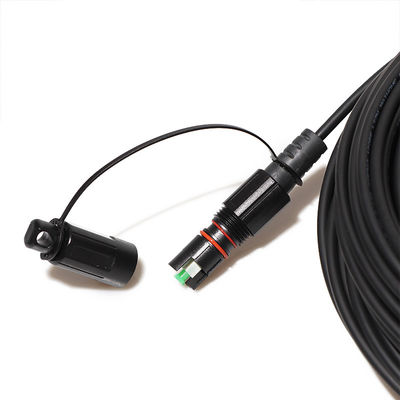

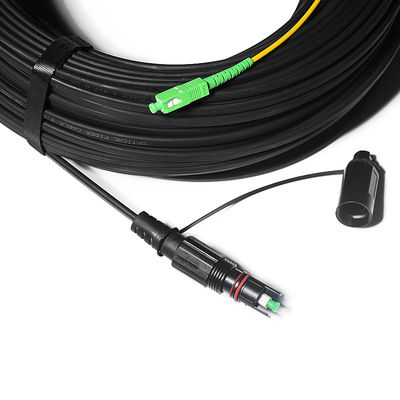

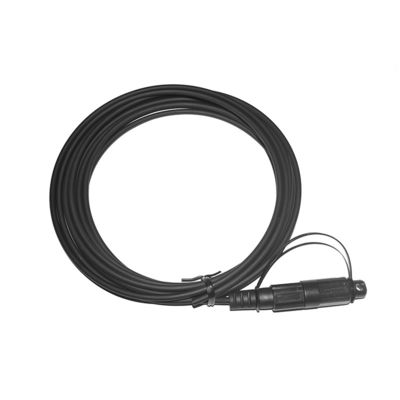

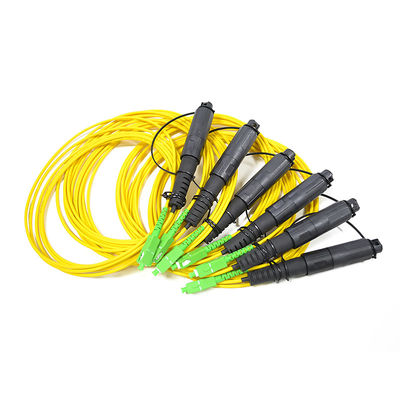

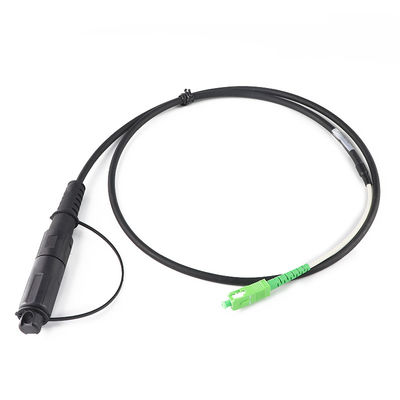

OptiTap SC Fiber Patch Cord Single G657A1 3.0mm Waterproof For Outdoor

Product Description

SC Waterproof Outdoor OptiTap Single G657A1 3.0mm Cable Fiber Patch Cord

Product Description

Individual bag or according to customer's request

H opticassemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H optic connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H optic connector provides an ideal solution for direct burial, conduit, or aerial installations.

Benefits

Allows flexibility to use factory terminated assemblies Provides superior weather resistance for FTTH and other outdoor applications Ensures functionality in harsh weather environments Can be used with industry standard cable designs Easily installs without special tooling Threaded style coupling Provides bend protection for installation and long term use

Features

Single fiber, SC-based connector Bird proof and rodent resistant IP68 water and dust protection Low profile in-line receptacle available No installation tools required 100 minimum mating cycles In-line connection available Operating temperature: -40° to 85°C Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm 33 lb. axial cable retention (150N)

Applications

FTTH Outdoor Areas Harsh Environment

Type	SM-UPC			SM-APC			MM-UPC
Type		Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB			≥30dB			≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
