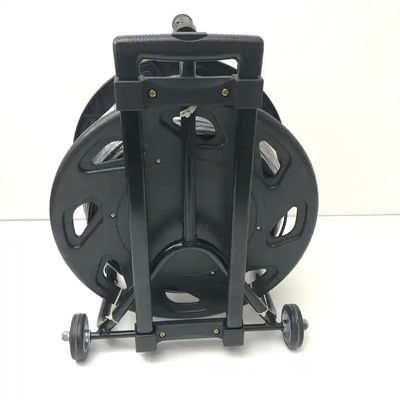

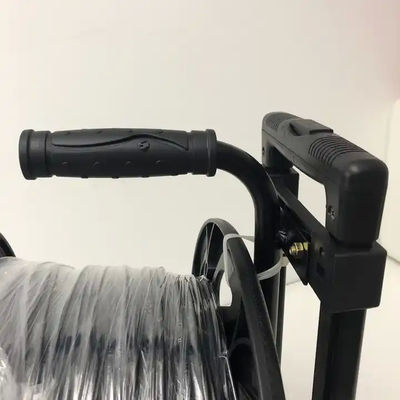

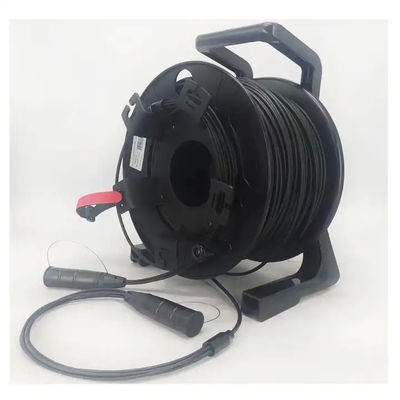

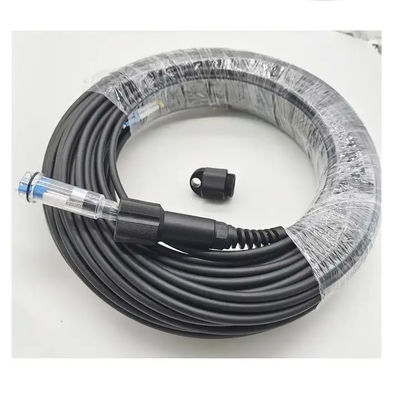

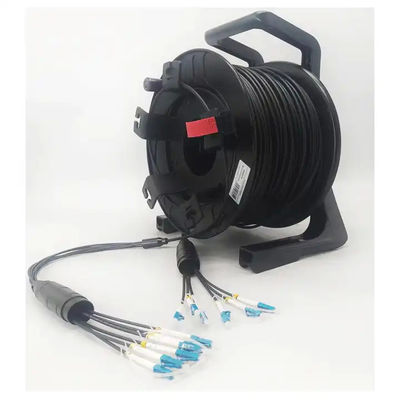

500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching

1pcs
MOQ
500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: AFIBERSOLUTION-Cable Reel
Place Of Origin Thickness: Guangdong, China
Product Name: 500 Meter Portable Field Deployable Tactical Fiber Optic Cable Reel
Material: Metal Or Plastic
Capacity: 100M-1000M
Cable Diameter: 4.0/4.5/5.0/6.0/7.0mm
Colors: Black And Army Green
Working Temperature Material: -40°C~+85°C
Certification: CE/ROHS/ISO9001
Warranty: 3Years
Use: FTTH/Area Network
Easy To Move: With Handle, Easy To Move.
Keyword: Fiber Optic Patch Cable
Working Environment: Indoor / Outdoor
High Light:

Industrial Automatic Cable Reel

,

500 Meter Automatic Cable Reel

Basic Infomation
Place of Origin: China
Brand Name: A Fiber Solution
Certification: ISO9001-2015, RoHS, CE
Model Number: Fiber Optic Cable Reel
Payment & Shipping Terms
Payment Terms: T/T, Western Union
Product Description

Fast Deployment Outdoor Patching Cable  2/4/6/8/12 cores with waterproof connectors

Emergency Fast Deployment Emergency Indoor Outdoor Fiber Optic Patching Industrial Antomatic Cable Reel

Product Description:

Fast Deployment Outdoor are a ready-to-use fiber optic cable assemblies with connectors on one or both sides. Main application of Fast Deployment Outdoor is its use as mobile field cable for quick deployment for media events, emergencies, control room connections etc.
3C-LINK – Fast Deployment Outdoor assemblies are equipped with a robust divider, protective sleeves in variable length

The cable support 4 6 8 12 core fiber optic cable outdoor armored or unarmoured LSZH/TPU sheathed single mode/multimode fiber optic cable, will meet you needs in any extreme environment.



500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 0

Features:

Fast Deployment Cable
* 2 to 12 fibers (SM, MM)
* Rugged divider with thread and slot for easy mounting
* Field cable
* Strain relief design
* LC, SC, FC, E2000, ST, etc. connector types can be provided with PC and APC ferrules
* IP 67 rated
* Custom designed cable reels to match different cable lengths


Technical Parameters:

500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 1500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 2500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 2500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 4500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 5
Item
Parameter

Fiber type
Single mode G652D / G657A; Multimode 62.5/125, 50 / 125 (OM3, OM4)
Connector type
SC /LC /FC/ST...
Fiber quantity
2-12 cores

Sheat material
PVC/LSZH/TPU armoured or unarmoured
Sheath Color
Black as default (other color customized )
Insertion Loss
<0.3dB
Return Loss
>50 UPC >60 APC

Field cable
Field cable
Protection
IP67 rated

Length
50/100/150/250/300/500
Working Temperature
-40~+85
Subunit cord diameter
can be from 2.0mm to 3.0mm

Cable diameter:
can be from 5.0mm to 7.5mm
Included reel and frame
easy and fast deploy and retrieving



500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 6

Applications:

1.Military communication system
2.Passive optical networks (PON)
3.Coal,oil,natural gas,geological exploration
4.Broadcast television,temporary communication and so on.

500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 7

Customization:

Fiber Optic Cable, Customized by A Fiber Solution

This Fiber Optic Connecting Cable is specifically designed and made by A Fiber Solution, a professional manufacturer of fiber optic cables and related products.

Place of Origin: China

Wavelength: 850nm, 1300nm, 1310nm, 1550nm

Connector: LC, SC, ST, FC, MTRJ, Etc.

Length: Various Lengths

Fiber Count: 2-144 Fibers

Cable Strength Member: Aramid Yarn, Steel Wire

This Fiber Optic Transmission Cable is ideal for fiber optic communication. It is highly durable and reliable, making it perfect for long-term applications.

This Fiber Optic Communication Cable is perfect for any application that requires high speed, reliable transmission of data.


Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 8

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 9
500 Meter Industrial Automatic Cable Reel Emergency Indoor Outdoor Fiber Optic Patching 10
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: AFIBER Solution dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
