SC UPC Singlemode Fiber Optic Connector Fast For Patch Panels

10pcs
MOQ
$0.50/pieces
Price
SC UPC Singlemode Fiber Optic Connector Fast For Patch Panels
Features Gallery Product Description Request A Quote
Features
Specifications
Type: SC Fast Connector
Use: FTTX
Warranty Time: 3 Years
Network: Wireless Lan, Wired LAN
Color: Blue
Application: FTTH,CATV,CCTV
Certificate: RoHS,CE,ISO
Insertion Ioss: ≤ 0.3dB, ( 1310nm & 1550nm )
Operating Temperature: -40~+75 Degree
Cable Applicable: 3.1 X 2.0 Mm Drop Cable
High Light:

Singlemode Fiber Optic Connector

,

UPC Fiber Optic Connector

,

SC single mode fiber connector

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS
Model Number: SC fast connector
Payment & Shipping Terms
Packaging Details: PE and carton
Payment Terms: T/T, Western Union
Product Description

China Professional Factory Good Quality SC UPC Singlemode Fast Connector

Product Description



1, Description


Field Assembly SC/UPC fast connector for FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.



2, Feature

  • Factory-installed fiber stub
  • No epoxy or polishing required
  • Quick and easy fiber termination in the field
  • Eliminates cable excess length and pigtail splice storage
  • Cost effective



3, Application

  • Patch panels
  • Distribution frames
  • Maintenance or emergency restoration of fiber networks
  • FTTH Outlets
  • Connection at the desk for LAN environments



4,Specification



Applicable for

3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable

Optical fiber diameter

φ125um (657A&657B)

Tight buffer diameter

φ250um

Fiber mode

Single mode

Operation time

About 10s (exclude fiber cut)

Insert loss

≤0.3dB (1310nm & 1550nm)

Return loss

≥45dB

Fastening strength of naked fiber

≥ 5N

Tight clamping force cladding

≥ 8N

Tensile strength

≥ 50N

Using temperature

-45°C~+80°C

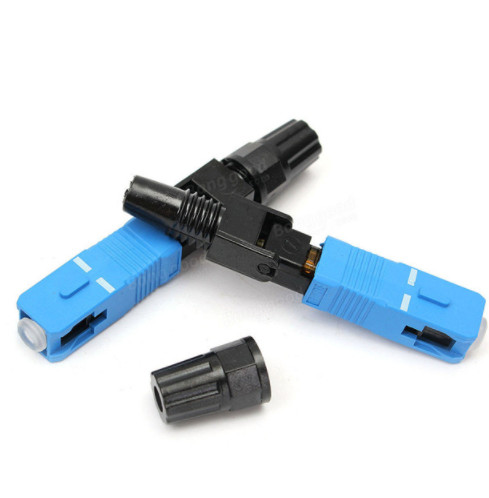

SC UPC Singlemode Fiber Optic Connector Fast For Patch Panels 0



Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.

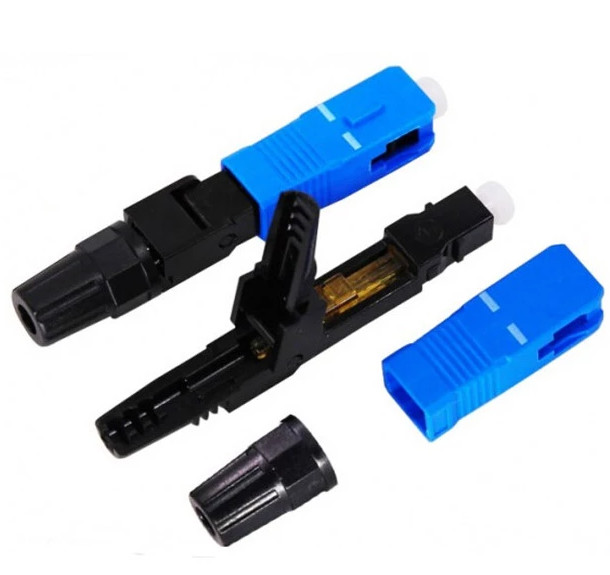

SC UPC Singlemode Fiber Optic Connector Fast For Patch Panels 1

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery



Sample

Within 1-2 working days



Wholesale orders

3-7 working days according various quantities

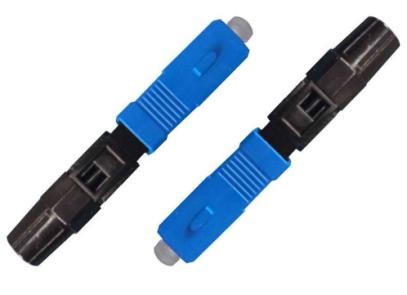

SC UPC Singlemode Fiber Optic Connector Fast For Patch Panels 2

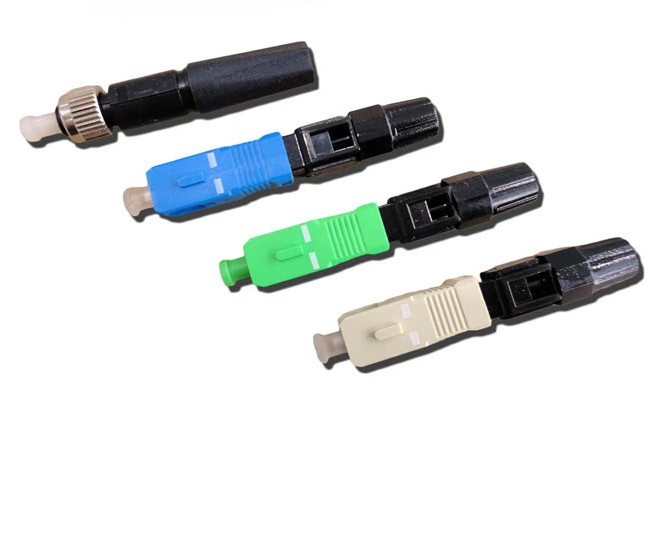

SC UPC Singlemode Fiber Optic Connector Fast For Patch Panels 3
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer:We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over2500 square meters
More than 18 non dust productions lines in total
1 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
