Name: SC APC UPC Fiber Optic Connector Quick With RoHS ISO9001 Compliant
Brand: A Fiber Solution Technology Co., Ltd
SKU: SC/APC UPC Fast Quick Connector
Price: 0.69 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: SC/APC UPC Fast Quick Connector

Insertion Loss: ≤0.3

Color: Blue, Purple, Aqua, Green,Beige

Connector Type: SC/FC/LC/ST/MTRJ/MU Ect

Application: FTTH

Working Temperature: -40℃ ~ +85℃

Quality Control: 100%

Warranty: 1 Year

Factory: Yes

Highlight:

Fiber Optic Connector ISO9001

RoHS Fiber Optic Connector

UPC quick connect fiber connectors

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS/ISO9001

Model Number: SC/APC UPC Fast Quick Connector

Payment & Shipping Terms

Payment Terms: T/T, Western Union

Supply Ability: 100000 Piece/Pieces per Day

Gallery

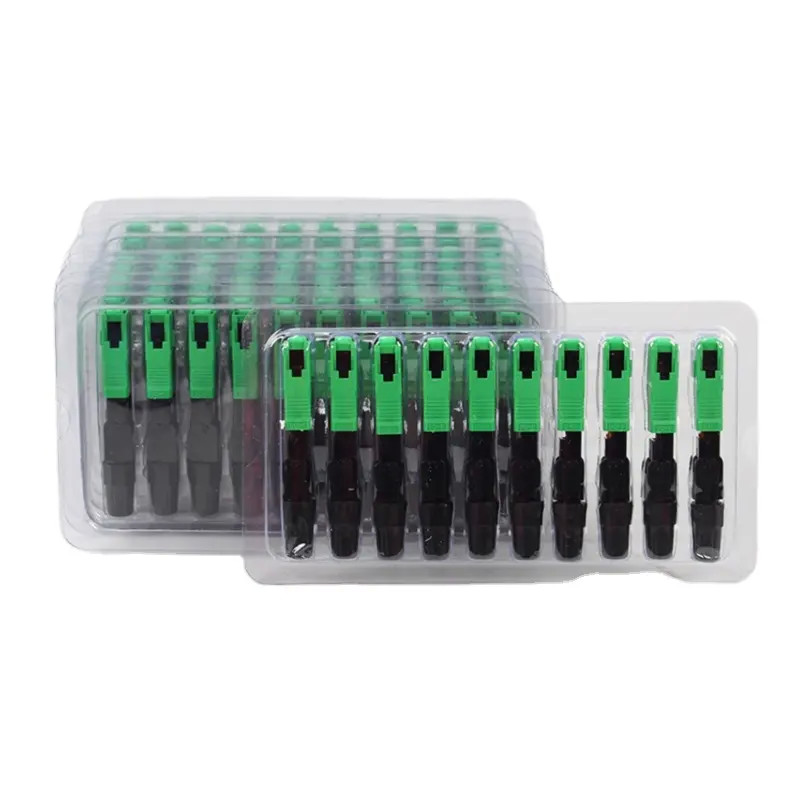

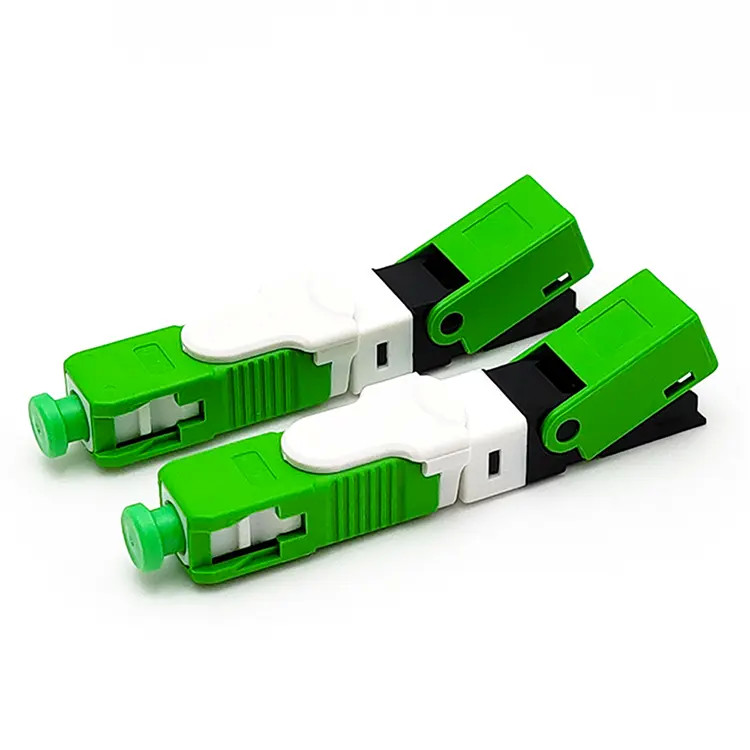

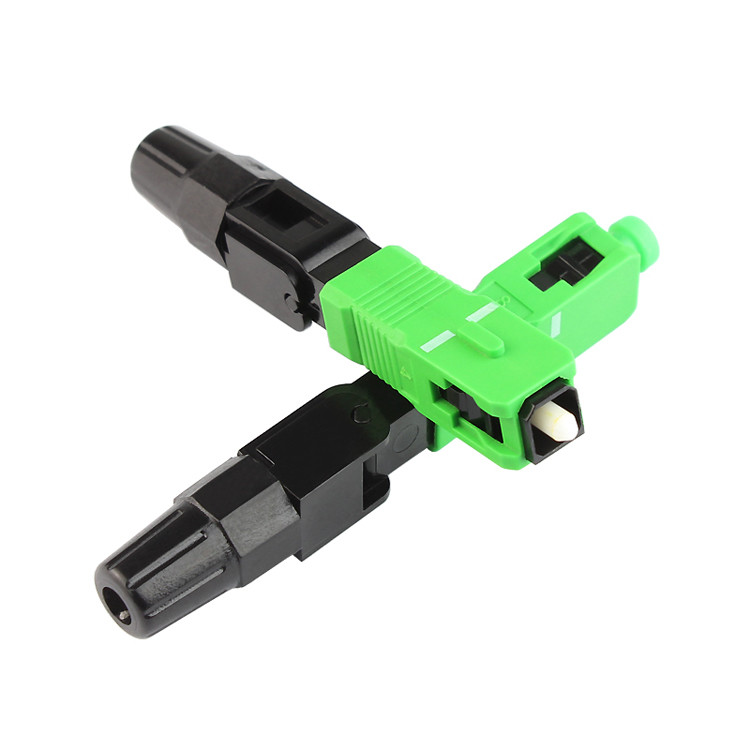

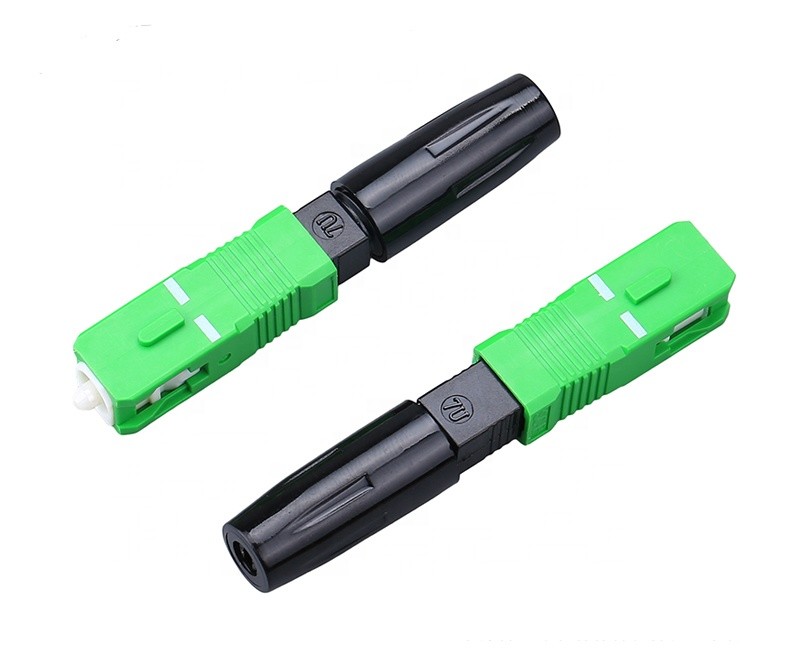

SC APC UPC Fiber Optic Connector Quick With RoHS ISO9001 Compliant

Product Description

High Quality SC/APC UPC Fiber Optic Fast Quick Connector from TTI Fiber

Product Description

Item	fast connector
Cable Scope	0.9mm, 2.0mm, 3.0mm round cable and 3.0 x 2.0 mm drop cable
Length	45mm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test	IL ≤ 0.3dB
