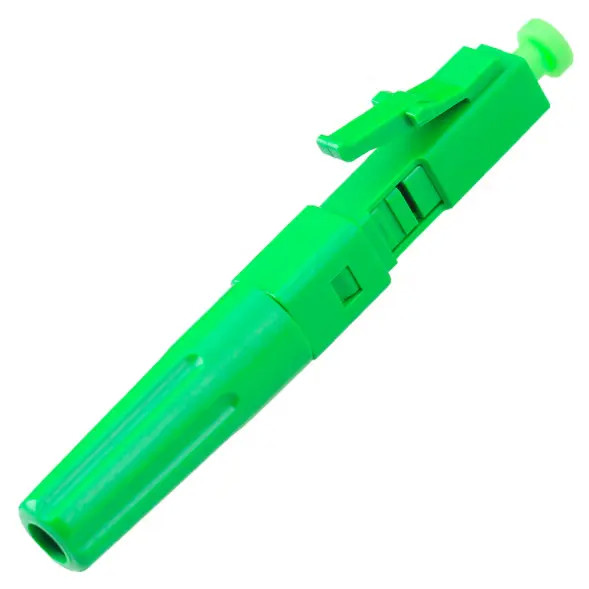

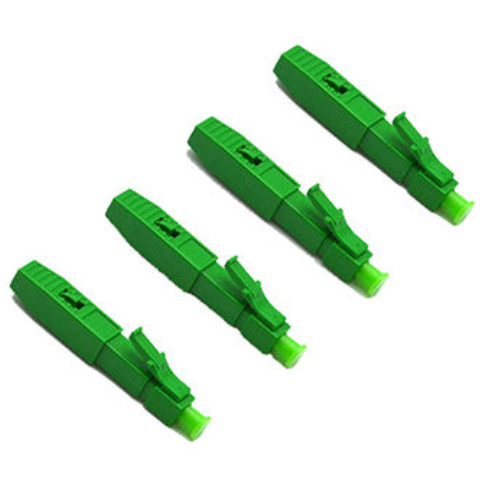

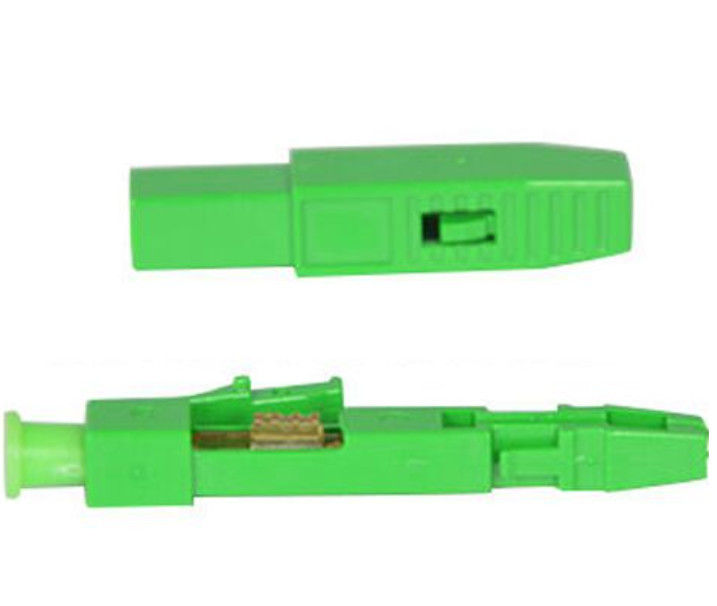

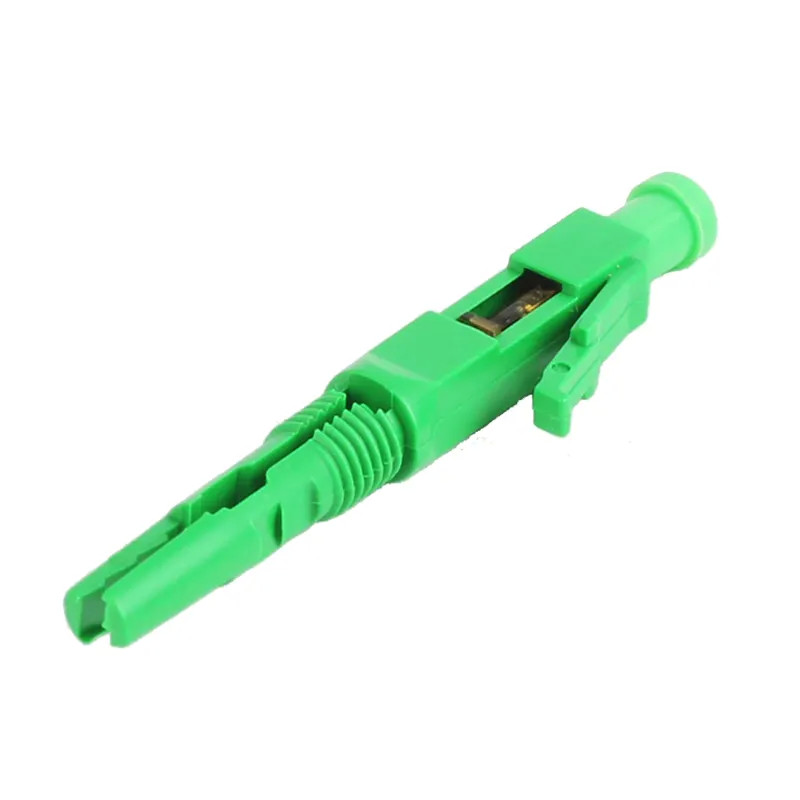

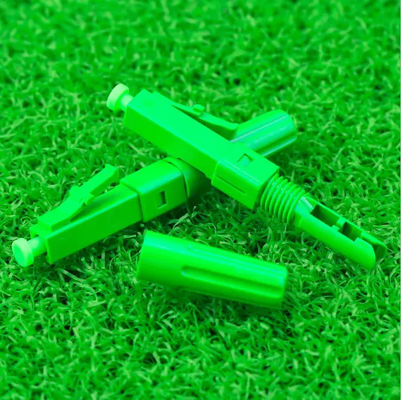

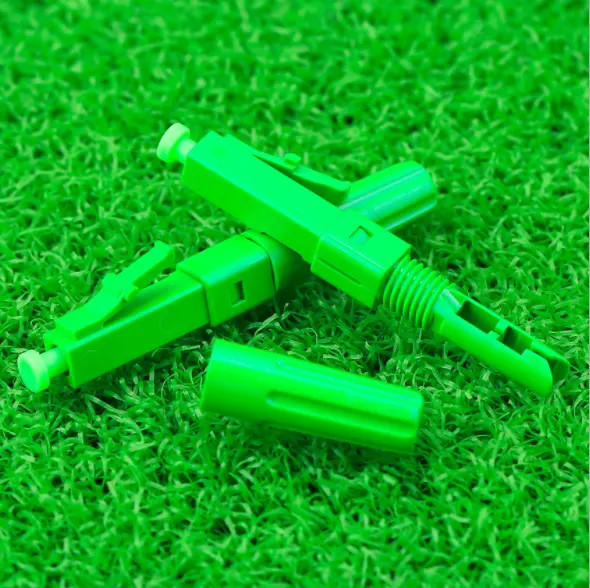

Fiber Optic LC/APC Fast Connector for Telecommunication
Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens
Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly.
Specifications
|
Item |
Parameter |
|
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable |
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
Coating Diameter |
250μm |
|
Mode |
SM |
|
Operation Time |
about 15s(exclude fiber presetting) |
|
Insertion Loss |
≤ 0.25dB(1310nm & 1550nm) |
|
Return Loss |
≤ -45dB |
|
Success Rate |
>98% |
|
Reusable Times |
>10 times |
|
Tensile Strength |
>5 N |
|
Tighten Strength of Coating |
>10 N |
|
Temperature |
-40~+85°C |
|
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
|
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
|
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
Application
1.Local Area Network
2.Data communication network
3.Active device termination
4.Fiber Optic Telecommunications
5.FTTH (Fiber To The Home)
6.CATV & CCTV
7.Data Processing Networks
8.Telecom Equipment
9.Local Area Networks
