SM SC FC LC Fast Fiber Optic Connector APC OS1 OS2 Single Mode Fiber Connectors
Features:
Compliance with the Standard of IEC and YD/T1272
High Return Loss and Low Insertion Loss
Good Repeatability and Interchangeability
PC,UPC,APC Polishing
Single mode,Multi-Mode Versions
Various Types of Connectors:FC,SC,ST,MU,LC,MTRJ,MPO, etc
Ribbon Pigtail Cable,Bunchy Pigtail Cable,Waterproof Pigtail Cable
Multiple option of Optic Cable Core,Simplex,Twin cores,4 Cores,6 Cores,12 Cores,24 Cores, 48 Cores
Application:
Telecommunication Network
Testing Equipment
Local Area Network(LAN)
CATV
FTTH
Specification:
| Item | Single Mode | Multi Mode |
| Insertion Loss | <0.2dB | <0.3bB |
| Insert-Pull Test | 1000 times | |
| Operating Temperature | -40°C ~ +85°C | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<1um | 127um concentricity deviations:<3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
| Item | Connector Description | Item | Connector Description |
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | |||

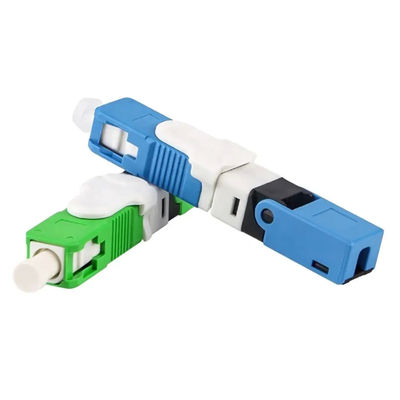

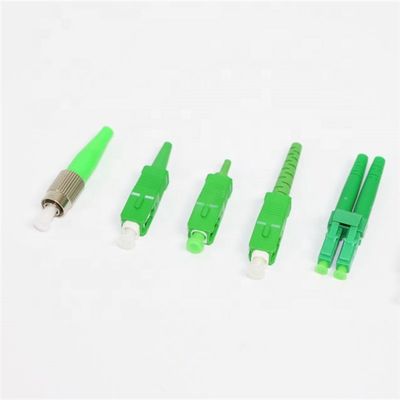

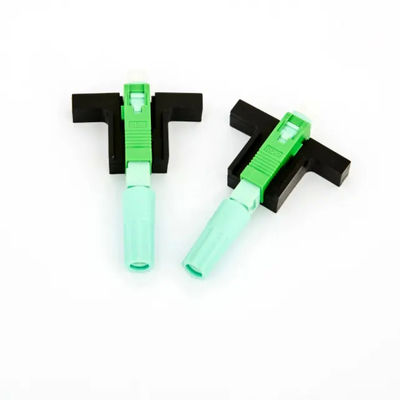

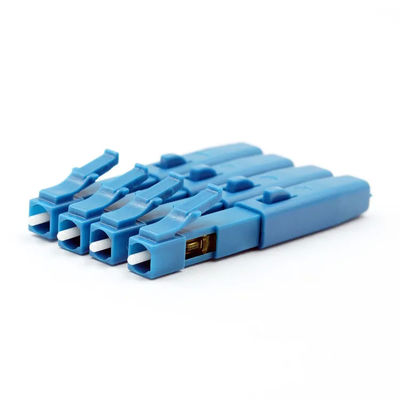

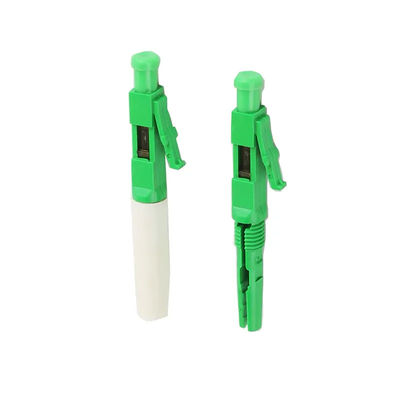

More Picture:
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.
Within 1-2 working days
3-7 working days according various quantities
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
1 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
