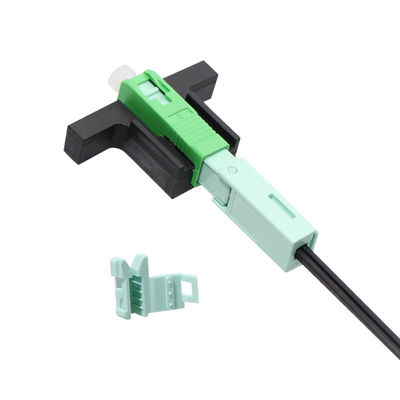

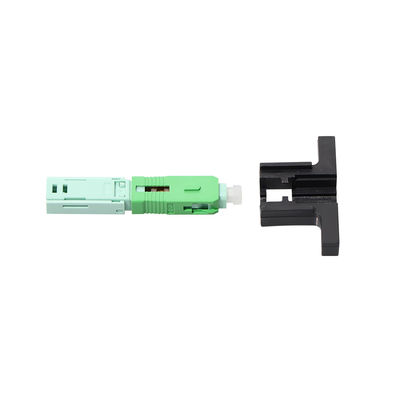

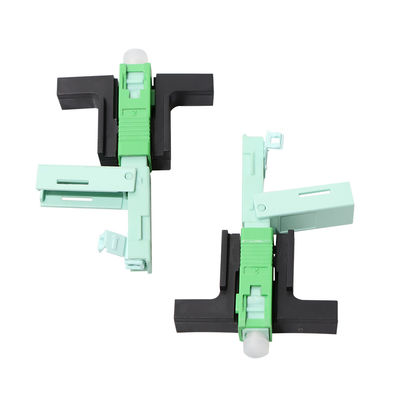

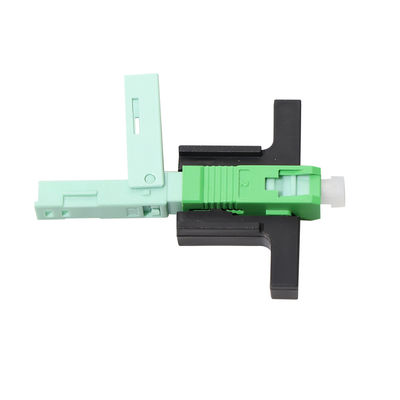

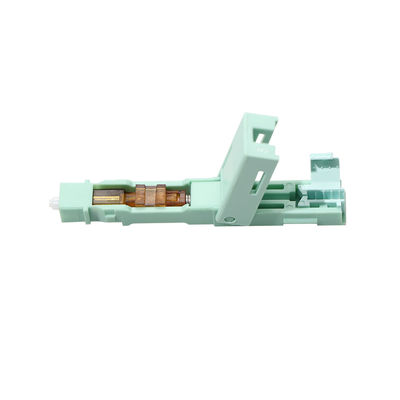

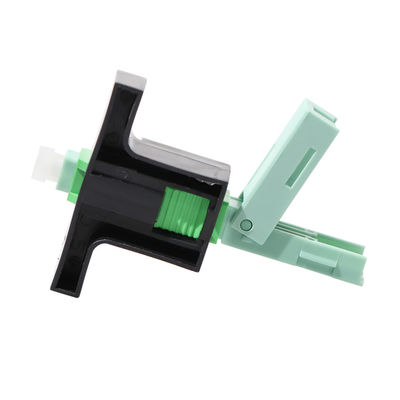

Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device. No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.
Item
|
Parameter
|
Cable Scope
|
3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
|
Size
|
51*9*7.55mm
|
Coating Diameter
|
250μm
|
Mode
|
SM
|
Operation Time
|
about 15s(exclude fiber presetting)
|
Insertion Loss
|
≤ 0.3dB(1310nm & 1550nm)
|
Return Loss
|
≤ -50dB for UPC, ≤ 55dB for APC
|
Success Rate
|
>98%
|
Reusable Times
|
>5 times
|
Tighten Strength of Naked Fiber
|
>5 N
|
Tensile Strength
|
>30 N
|
Temperature
|
-40 ~ +85 C
|
On-line Tensile Strength Test (20 N)
|
IL ≤ 0.3dB
|
Mechanical Durability(500 times)
|
IL ≤ 0.3dB
|
Drop Test
|
IL ≤ 0.3dB
|
