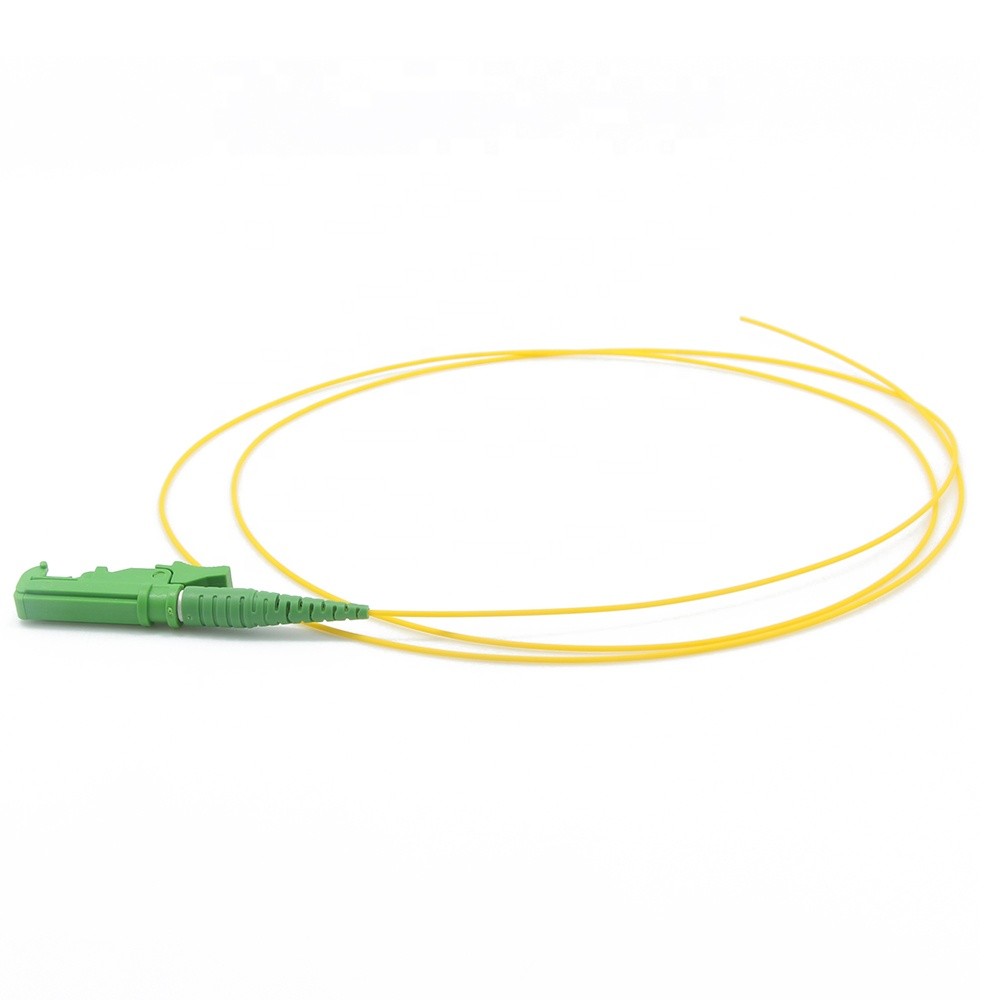

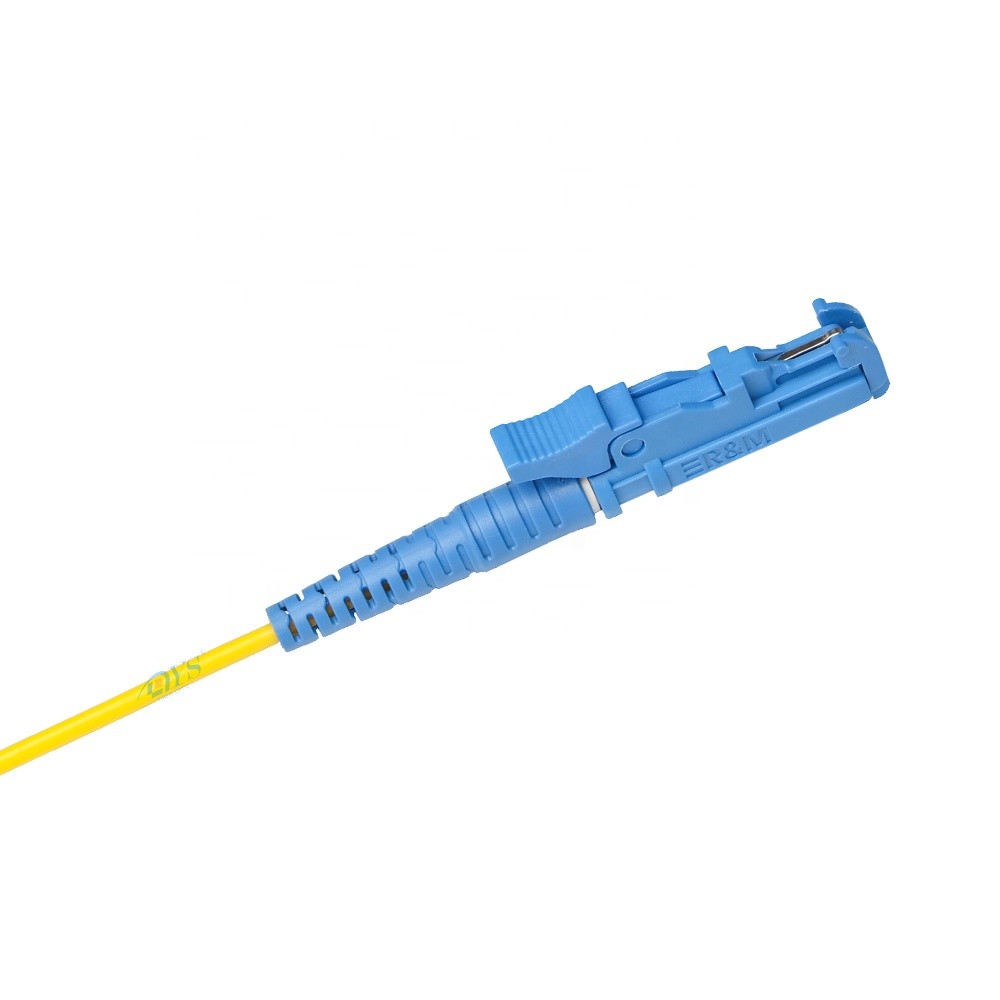

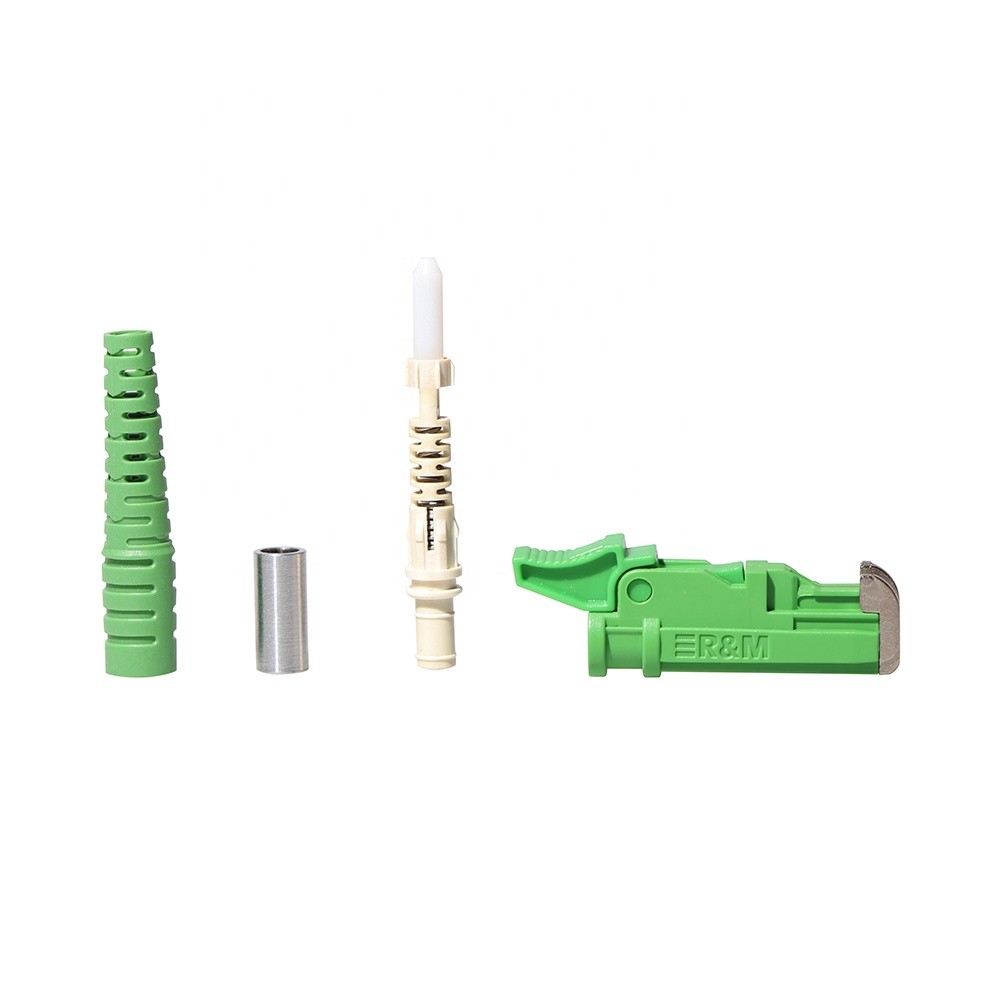

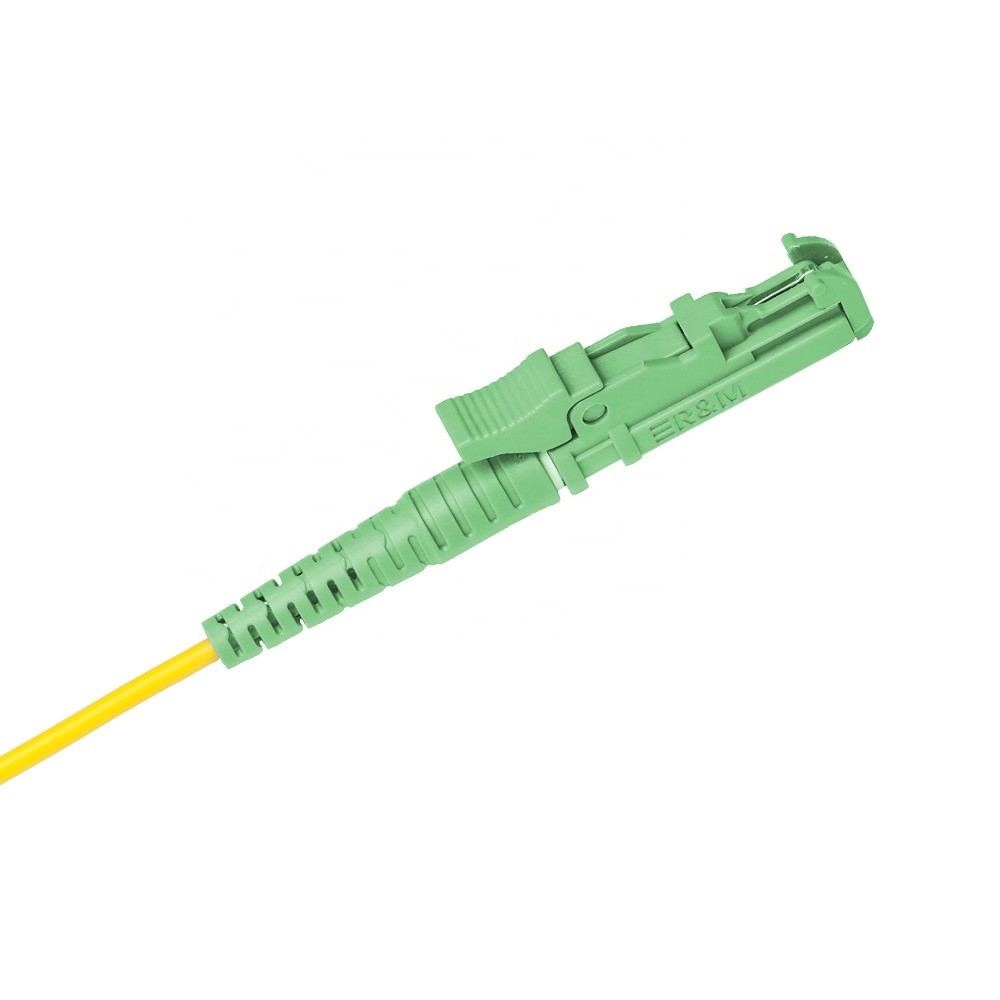

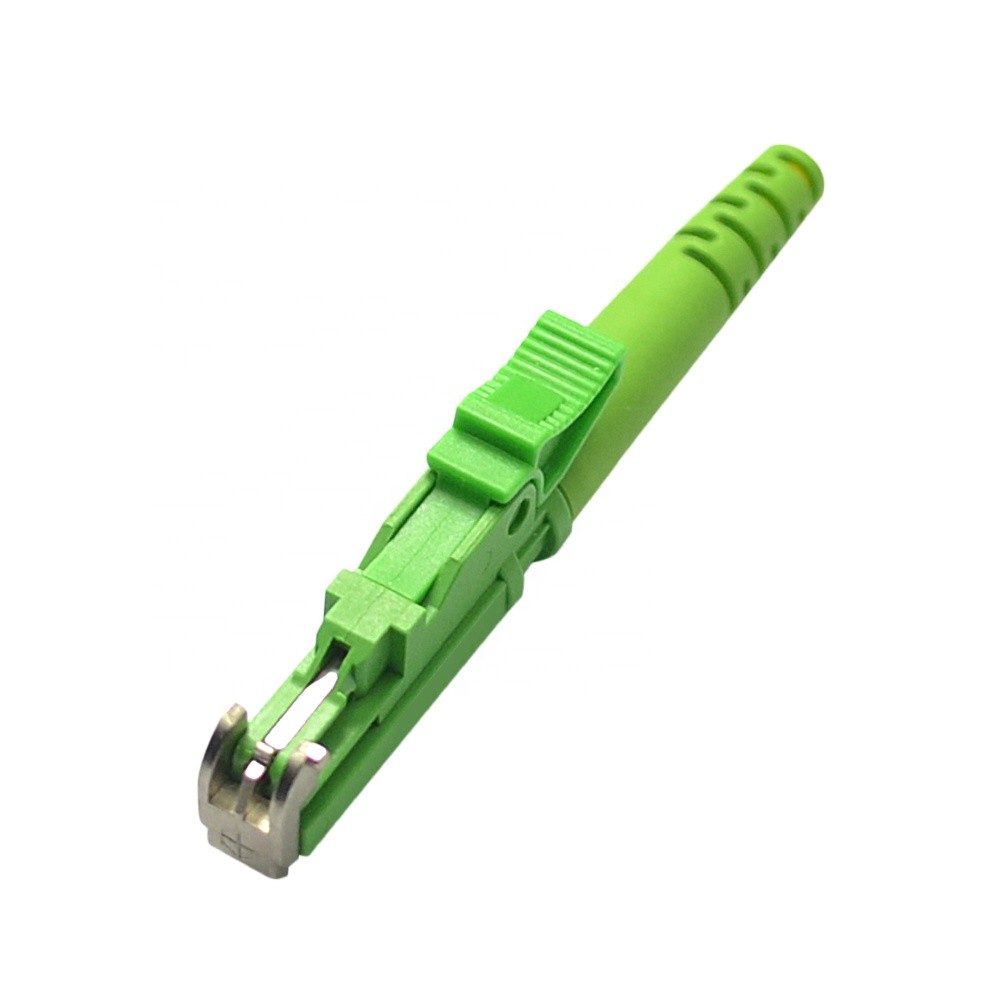

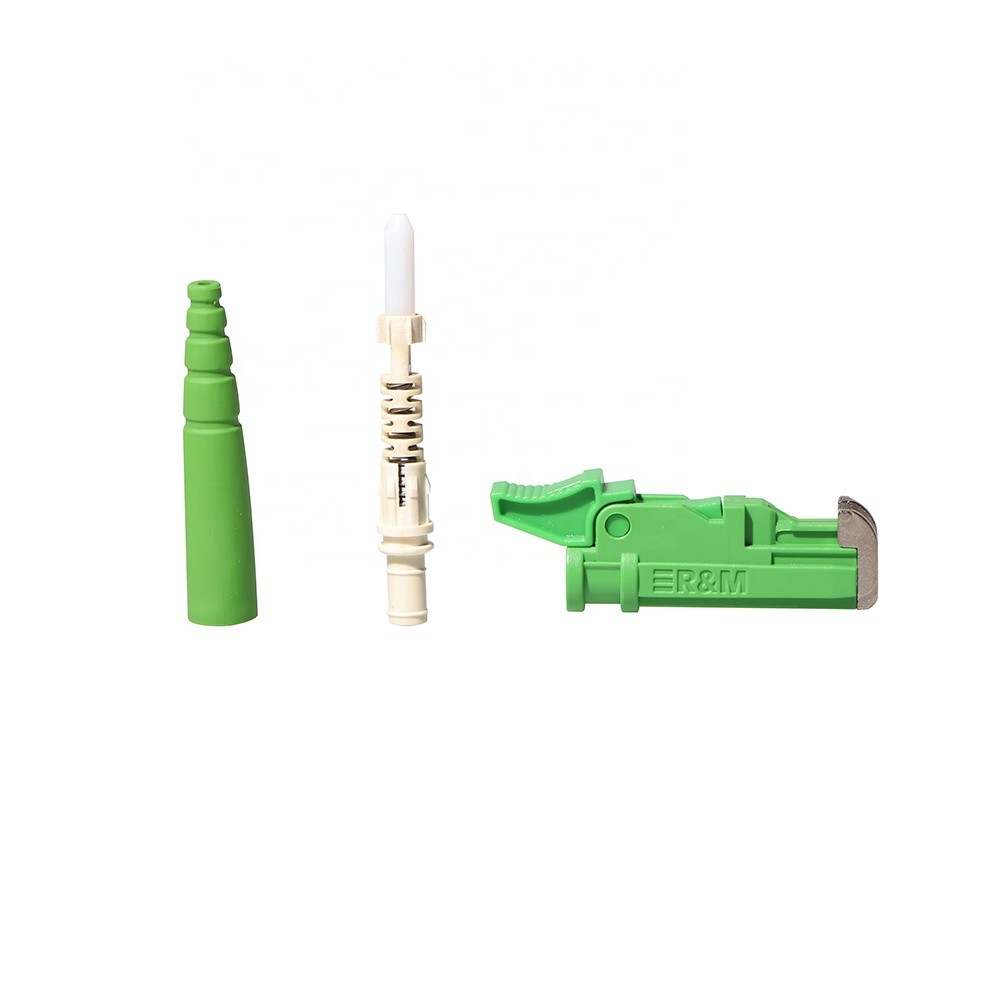

Name: FTTH E2000 Fiber Optic Connector For Telecommunication Networks
Brand: ODM/OEM
SKU: E2000 APC UPC
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (111 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Fiber Adapter & Connectors

Use: FTTH

Warranty Time: 3

Network: Wired LAN, ONVIF, 4g, 3G, Fiber

Model Name: E2000 Apc Fiber Optic Connector

Model: Single Mode/Multi Mode

Connector Type: E2000

Ferrule Endface: APC

Fiber Type: G652D/G657A2

Cable Outer Diameter: 0.9mm /2.0mm/3.0mm

Application: Bow-type Drop Cable, 2.0/3.0 Indoor Cable, Telecom Cable

Packing: PE Bag

Housing Color: Beige, Blue, Brown,Yellow, Red, Optional

Boot Type: Slotted/Smooth

High Light:

E2000 Fiber Optic Connector

FTTH Fiber Optic Connector

e2000 fiber connector

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: RoHS, CE

Model Number: E2000 APC UPC

Payment & Shipping Terms

Packaging Details: Packaging Details<br>1pc/PE bag<br>according to customer's request.

Payment Terms: T/T, Western Union

Supply Ability: 20000 Piece/Pieces per Day

Gallery

FTTH E2000 Fiber Optic Connector For Telecommunication Networks

Product Description

E2000 Connector E2000 APC Pigtail Spring Loaded Shutter E2000 Fiber Optic Connector

Provide a full range of fiber optic patchcords FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 ect., our patch cord connectors are unique with utility patent.

Product Name :	E2000 APC Connector E2000 Fiber Optic Connector E2000 connector
Model	Connector E2000/2-3/4
1. A end connector	E2000 (other connector SC, LC, ST, FC, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 available)
2. A end polish	PC, UPC, APC.
3. Fiber Type	B1.3=G652D; B6A1=G657A1; B6A2=G657A2; A1=50/125um; A1b=62.5/125um; M3=OM3; M5=OM4 etc.
4. Boot Type	1.2mm, 1.6mm, 2.0mm, 3.0mm, 4.0mm etc.
Other further info.	Customize

Features

1. The connectors are comply with IEC, Telcordia-GR-326-Core standards;
2. Different size & color boot option;
3. Low insertion loss; High return loss;
4. 100% interferometer measurement;
5. Typical IL≤0.20dB;
6. Max IL≤0.25dB;
7. RL SM≥50dB, APC≥60dB, MM≥20dB.
8. Durability(500mating time): IL≤0.25dB.
9. Operating / storage temperature:- 20~+70°C

Application

1. Telecommunication networks;
2. Local area networks; CATV;
3. Active device termination;
4. Data center system networks;

Company Profile

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
