8 Core 12 Core Fiber Cable Patch Cord Male Female Fanout Breakout MPO MTP To LC

2 pieces
MOQ
$11.50/pieces 2-49 pieces
Price
8 Core 12 Core Fiber Cable Patch Cord Male Female Fanout Breakout MPO MTP To LC
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTTH
Warranty Time: 3
Network: Wired LAN, 4g, 3G, Fiber
Connector Type: MPO
Connector Fiber Count: 8, 12, 24
Housing Color: SM (Standard Green, Elite Yellow) MM (Standard Beige, Elite Aqua)
Insertion Loss: <0.5dB
Durability: 500 Matings
Outer Jacket Material: LSZH, PVC, OFNR, OFNP
Fiber Brand: Corning, OFS, YOFC
Single-Mode Fiber: G655/G657A/G652D
Multi-Mode Fiber: OM2/OM3/OM4
High Light:

8Core Fiber Cable Patch Cord

,

Fiber Cable Patch Cord Male

,

Breakout mpo patch cord

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: OEM
Model Number: MPO-LC, MPO Cable
Payment & Shipping Terms

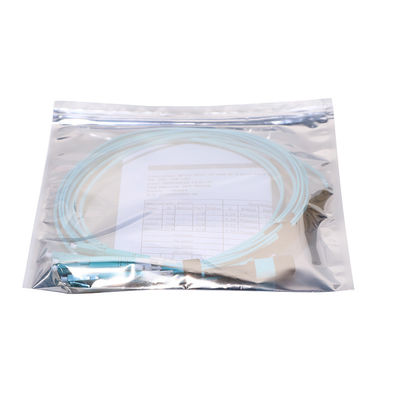

Packaging Details: MPO Fiber Optic Jumper OM4 Female 12 Fibers MPO/MTP Patch Cord Manufacturer China,<br>Individual box or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 3000 Piece/Pieces per Day
Product Description
Product Description
8 12 24 core male female MPO Patch Cord fanout breakout MPO/MTP to LC Harness Cable



APPLICATION

Data communication network Optical System Access network Storage area networking fiber channel High density architectures



FEATURES

100% pre-terminated and tested in factory to ensure transfer performance Rapid configuration and networking, reduce installation time Supports 40G and 100G network applications Jacket material: LSZH, OFNR, OFNP available Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

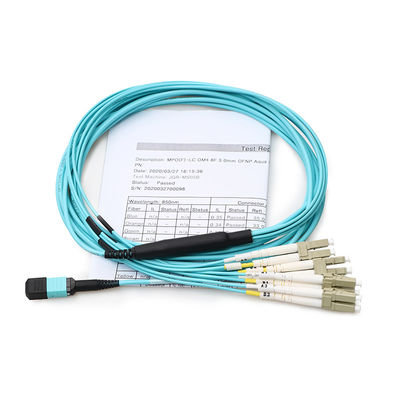

8 Core 12 Core Fiber Cable Patch Cord Male Female Fanout Breakout MPO MTP To LC 0
Product Parameters
Performance Level


Standard

Elite

Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60


24F/APC
≤0.75
≥60
≤0.35
≥60


48F/APC
≤0.75
≥60



MM
12F/PC
≤0.50
≥20
≤0.35
≥20


24F/PC
≤0.50
≥20
≤0.35
≥20


48F/PC
≤0.50
≥20


LC/SC/FC/ST
SM

≤0.30
≥60
≤0.10
≥60


UPC
≤0.20
≥50
≤0.10
≥50

MM
PC
≤0.20
≥30
≤0.10
≥30

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.

Mechanical Properties



Item

Criteria
Conformance
△IL After 50 Matings
MPO/MTP
≤0.3dB
GR-1435
△IL After 500 Matings
LC/SC/FC/ST
≤0.2dB
IEC 61300-2-2
Min Bend Radius (Dynamic)

20*OD (Cable Diameter)

Min Bend Radius (Static )

15*OD (Cable Diameter)

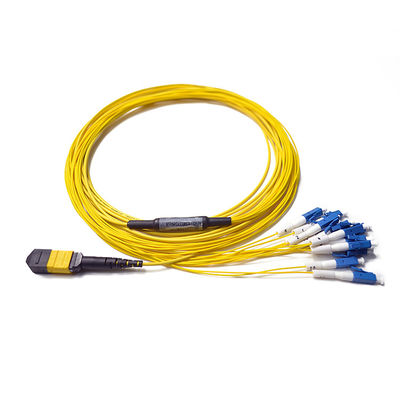

8 Core 12 Core Fiber Cable Patch Cord Male Female Fanout Breakout MPO MTP To LC 1
Environment Conditions



Item
Criteria
Conformance

Operation Temperature
-40~60°C
IEC 61753-1

Storage Temperature
-45~85°C


Company Profile

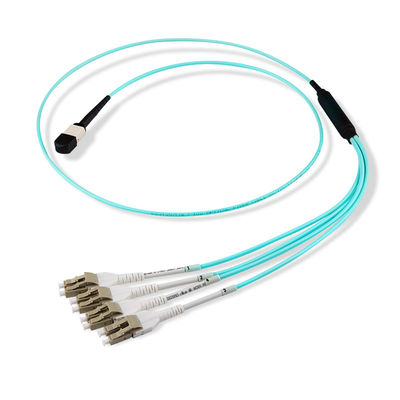

8 Core 12 Core Fiber Cable Patch Cord Male Female Fanout Breakout MPO MTP To LC 2
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Our fiber optic is looking forward to cooperate with you.

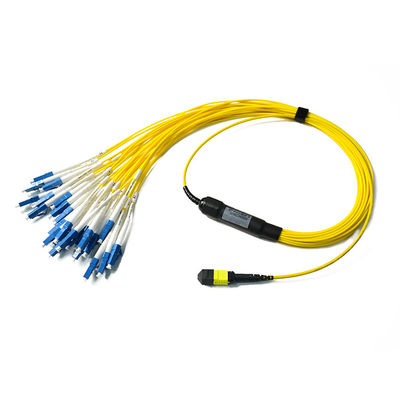

8 Core 12 Core Fiber Cable Patch Cord Male Female Fanout Breakout MPO MTP To LC 3
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

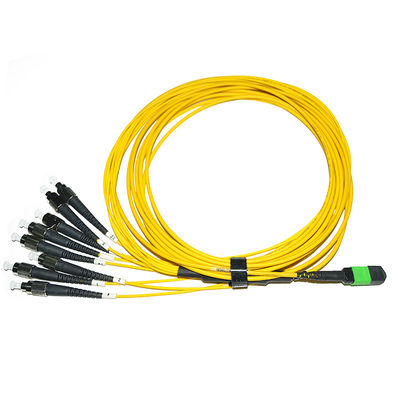

8 Core 12 Core Fiber Cable Patch Cord Male Female Fanout Breakout MPO MTP To LC 4
