We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

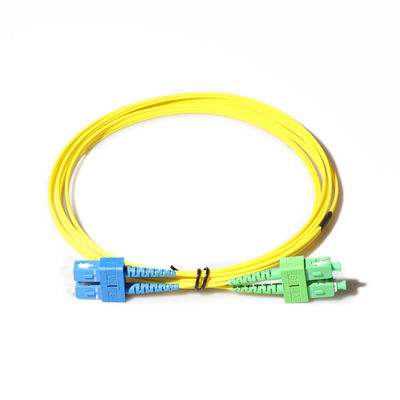

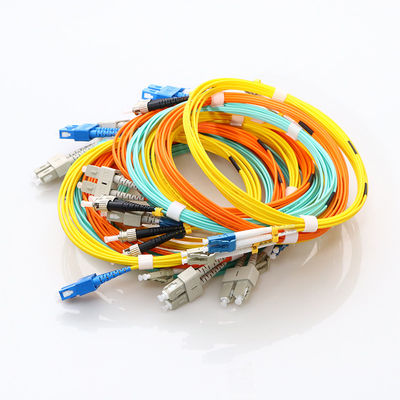

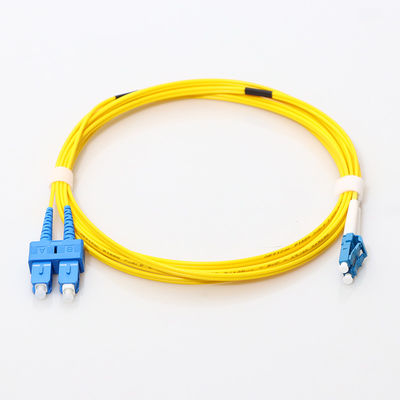

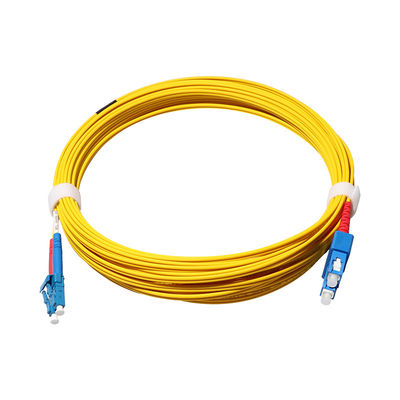

SC/APCto LC/UPC SM,DX fiber optic patch cord with clips,steady quality,100% tested
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
Mode
|
Single mode
|
|
Multimode
|
||
Polish
|
UPC
|
APC
|
PC
|
||
Insertion Loss
|
≤0.30dB
|
≤0.20dB
|
≤0.20dB
|
||
Return Loss
|
≥50dB
|
≥60dB
|
≥30dB
|
||
Test Wavelength
|
1310/1550nm
|
|
850/1310nm
|
||
Durability(500 Matings)
|
≤0.2dB
|
|
|
||
Operating Temperature
|
-40℃~+60℃
|
|
|
||
Storage Temperature
|
-45℃~+85℃
|
|
|
||
Fire Resistant
|
IEC 60794-2-30
|
|
|
||
Standards-Compliant
|
ROHS,IEC and GR-326
|
|
|
Fiber type
|
Single mode:
|
(1)9/125-G652D
|
(2)9/125-G655
|
(3)9/125-G657A,G657A2
|
(4)9/125-G657B3
|
|
|||||
|
Multimode:
|
(5)50/125-OM2
|
(6)62.5/125-OM1
|
(7)50/125-OM3
|
(8)50/125-OM4
|
(9)50/125-OM5
|
|||||
Fiber Brand
|
YOFC, Corning, Sumitomo, Fujikura
|
|
|
|
|
|
|||||

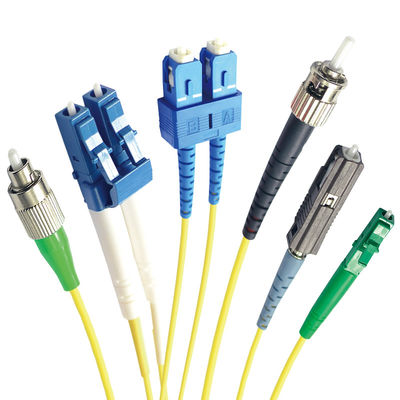

Connector
|
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
|
|
|
|
|
|
|||||
Cord type
|
Simplex ,Duplex
|
|
|
|
|
|
|||||
Cable diameter
|
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
|
|
|
|
|
|
|||||
Cable jacket
|
PVC, OFNR, LSZH, OFNP
|
|
|
|
|
|
|||||
length(M)
|
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
|
|
|
|
|
|
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.
With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.
Within 1-2 working days
3-7 working days according various quantities
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
