GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable

1000 meters
MOQ
$0.12 - $0.35/meters
Price
GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Network: 4g, 3G
Product Name: GYCFY Air Blowing Micro Optical Fiber Cable
Fiber Type: Single Mode(G652D)
Fiber Count: 12~144 Cores
Fibers Per Tube: 12
Numbers: 12
Central Strength Member: FRP Coated PE
Water Blocking Material: Water Blocking Yarn & Tape
Operating Temperature: -20℃~+60℃
Outer Jacket: Black HDPE With One Green Stripe (Approx.3.2mm)
Cable Nominal Diameter (±0.3mm): 9.5mm
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Model Number: GYCFY
Payment & Shipping Terms
Packaging Details: Iron-wooden drum or fumigated wooden drum,normal wooden drum
Payment Terms: T/T, Western Union
Supply Ability: 100000 Kilometer/Kilometers per Day
Product Description
Products Description

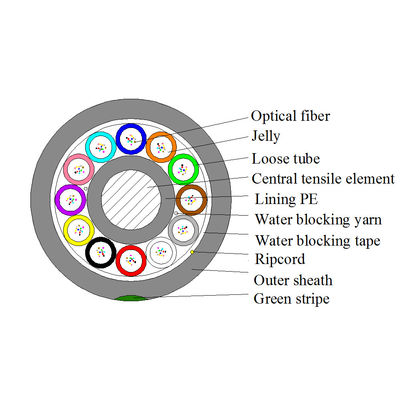

GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable
GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable 0

Cable Marking

Unless otherwise required the sheath will be use inkjet marked at intervals of 1m, containing: - Customer name - Manufacture’s name - Date of manufacture - Type and number of fiber cores - Length marking - Other requirements

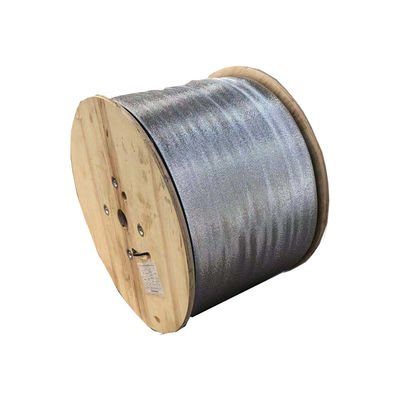

Cable Packing

The cable shall be installed on hard plywood, wooden or steel-wooden drum with order length per drum. The both ends shall be fitted with a suitable cap to prevent ingress of moisture.

Environmentally

Full comply with ISO14001, RoHS and OHSAS18001
GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable 1

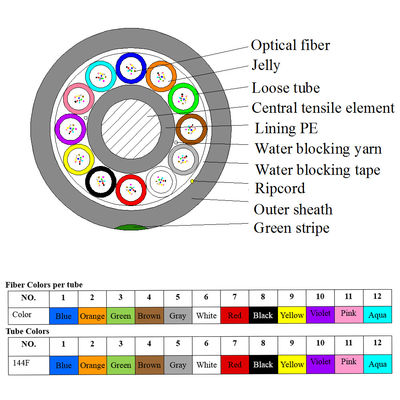

Fiber and Loose Tube Color Identification
The individual fiber and loose tubes shall accordance with standard TIA/EIA-598-A and the color code as below. Fiber Colors per tube
GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable 2
Items

Descriptions
Optical fiber

144F
Loose tube
Fibers per tube
12

Numbers
12
Filler
Numbers
0
Central strength member
Material
FRP coated PE
Water blocking material

Water blocking yarn & tape
Ripcord
Numbers
1

Breaking load
150N
Outer jacket
Material
Black HDPE with one green stripe (Approx.3.2mm)
Cable nominal diameter (±0.3mm)

9.5mm
Cable approx. weight (kg/km)

75 kg/km
Max. tensile strength
Short time
500N
Max. crush resistance
Short time
800N/100mm
Minimum Bending radius
Dynamic
20 times of cable diameter

Static
15 times of cable diameter
Temperature range
Installation
-20℃~+60℃

Storage
-20℃~+60℃

Operation
-20℃~+60℃
GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable 3

Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Looking forward to cooperate with you.
GYCFY 12 24 36 48 72 96 144 288 Core ABF Cable G652D G657A1 Micro Air Blown fiber optic cable 4
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
