2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured G657A GYXTW Fiber Optical Cable

1000 meters
MOQ
$0.10 - $0.85/meters
Price
2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured G657A GYXTW Fiber Optical Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Outdoor Fiber Optic Cable
Number Of Conductors: ≥ 10
Product Name: GYXTW Fiber Optic Cable
Application: Aerial Fiber Optic Cable
Jacket Material: PE
Fiber Count: 2-24 Cores
Fiber Type: OS1/OS2,OM1,OM2,OM3,OM4
Keywords: GYXTW
Function: Delivery Signal Light
Length Per Roll: 2km/3km/4km 24 Core Fiber Optic Cable ADSS
Attenuation(max.): ≤0.4 DB/km (1310nm), ≤0.3 DB/km (1550nm)
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: CE RoHS FCC ISO9001, RoHS, ce
Model Number: GYXTW
Payment & Shipping Terms

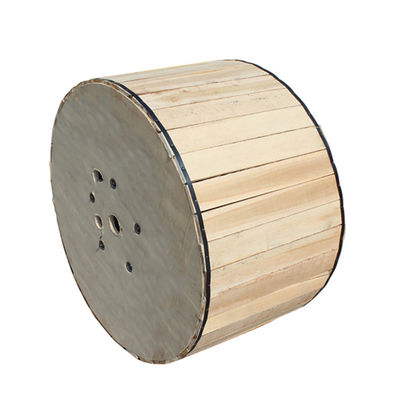

Packaging Details: 2 Km to 6 Km/drum , fumigated wooden or iron drum as customer required
Payment Terms: T/T, Western Union
Supply Ability: 1000 Kilometer/Kilometers per Day
Product Description
Products Description

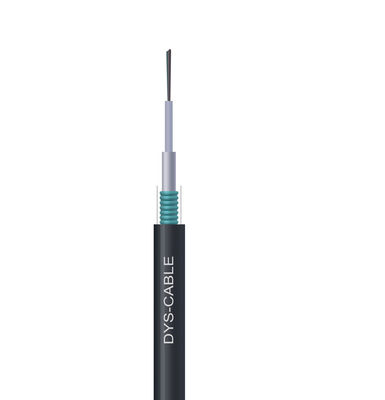

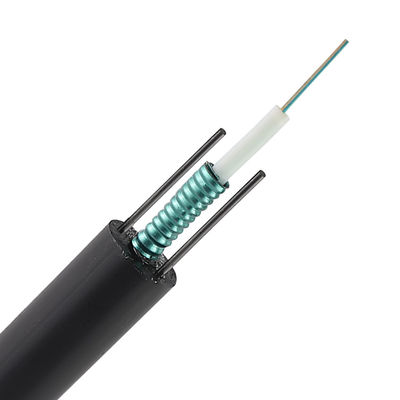

2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured G657A GYXTW Fiber Optical Cable

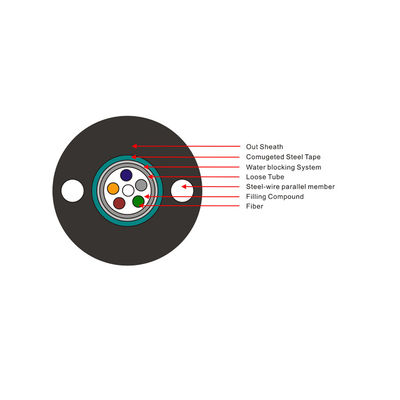

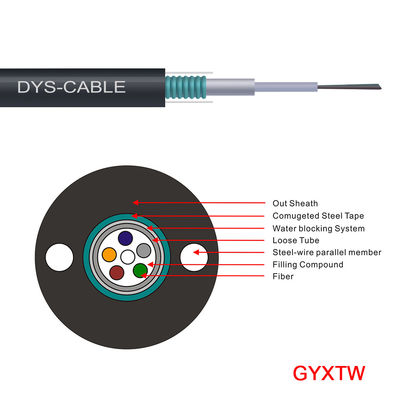

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.

Product Characteristics

* Material of loose tube has good mechanical properties and temperature characteristics
* Material of loose tube has good hydrolysis resistance and high strength
* The tube is filled with special filler to provide critical protection for the fiber
* Good lateral pressure resistance and softness
* Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
* The two parallel steel wires provides enough tensile strength
* Small diameter, light weight, easy for laying
2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured G657A GYXTW Fiber Optical Cable 0
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
ADSS-2~48Xn
12.0±0.5
140.0
3600
1200
1000
500
20D
15D
ADSS-96Xn
14.0±0.5
165.0
3600
1200
1000
500
20D
15D
ADSS-144Xn
16.0±0.5
205.0
3600
1200
1000
500
20D
15D
Storage/Working temperature(℃)


-40~+70





2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured G657A GYXTW Fiber Optical Cable 1
