Home /Products/Fiber Optic Cable/Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable

Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable

$0.10 - $0.85/meters
Price
Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Outdoor Fiber Optic Cable
Number Of Conductors: ≥ 10
Product Name: Aerial Adss Fiber Optic Cable
Fiber Type: G652D, G655, G657
Application: Aerial, Duct
Armoured: Steel Tape
Jacket: Single Or Double Sheath
Jacket Material: PE LSZH PVC
Length: 2km 3km 4km
Packing: Wooden / Plywood Reel
Fiber Brand: Corning, OFS, YOFC
Strength Member: FRP
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: ADSS
Payment & Shipping Terms

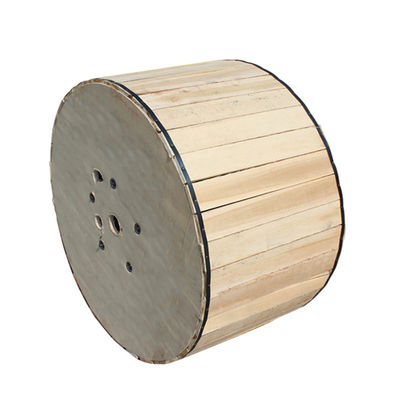

Packaging Details: 2KM/Wood Spool
Payment Terms: T/T, Western Union
Supply Ability: 100 Kilometer/Kilometers per Day
Product Description
Products Description



Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable

Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable 0

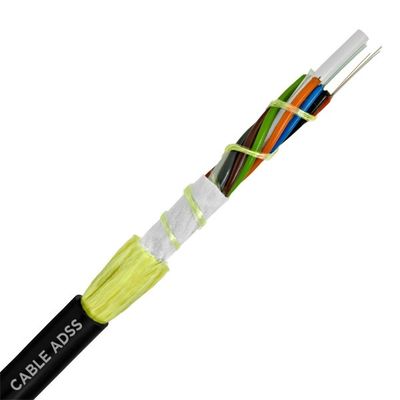

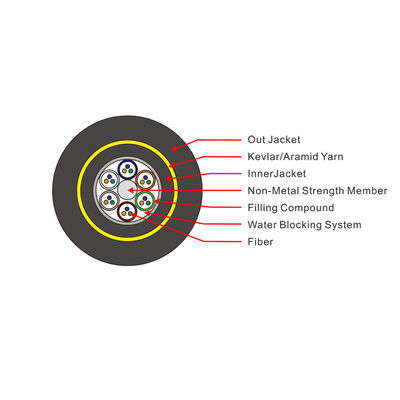

ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound, the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.

Applications

Railways, power and telecommunication pole routes. Suitable for installation on poles and on the power distribution network. Aerial self-supporting applications at short, medium and long span distances. Ideal for transmission lines with high electrical field strength. Can be used in areas suffered from frequent lightningldeal for transmission lines with high electrical field strength.

Features

PE or AT sheath ensures safety of cable in high voltage environment. All-dielectric structure and light weight provide easy. installation and good electromagnetic resistance. Reliable performance of moistureproof and waterproof.
Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable 1
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
ADSS-2~48Xn
12.0±0.5
140.0
3600
1200
1000
500
20D
15D
ADSS-96Xn
14.0±0.5
165.0
3600
1200
1000
500
20D
15D
ADSS-144Xn
16.0±0.5
205.0
3600
1200
1000
500
20D
15D
Storage/Working temperature(℃)


-40~+70

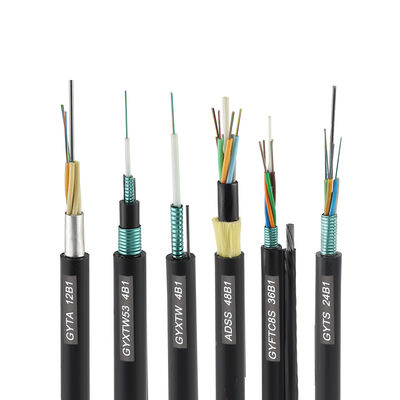

Main Products

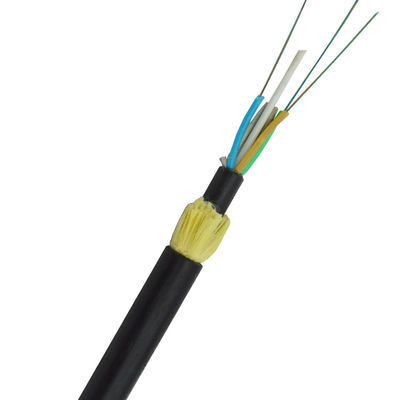

Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable 2

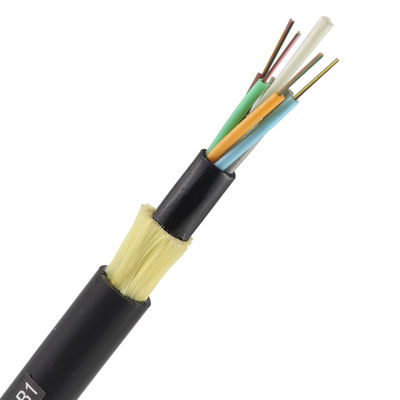

Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable 3
Our Company
Factory Price Outdoor Self-supporting Aerial fibra optica adss 12 core 24 core span 100m adss fiber optic cable 4
