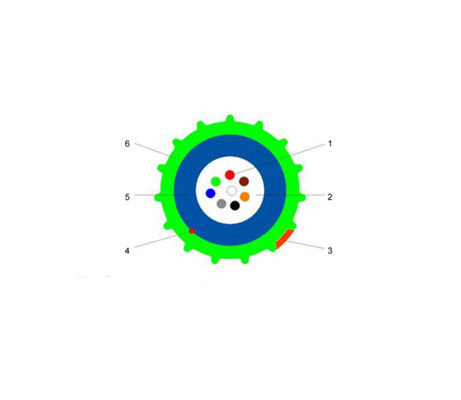

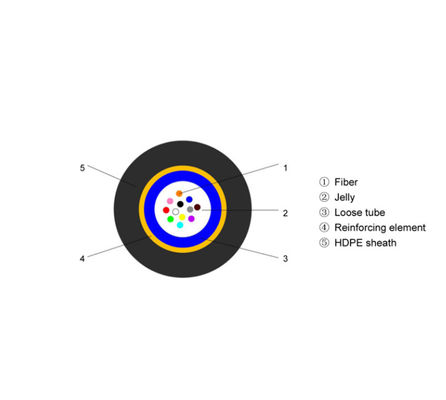

Air Blown Mini Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties. It is usually applied in FTTX.
Long-distance communication,LAN Used for air-blown laying in micro-tube FTTX system
Small diameter Frees up capital to expand network and client base Network design flexibility 5/3.5mm microduct suitable Easy to upgrade Greater blowing distance Fiber: G.G652D, G.657A1, G.657A2 & multimode fiber
|
P/N
|
Fiber count(F)
|
Nominal diameter(mm)
|
Nominal weight(kg/km)
|
Min. bend radius(mm)
|
Temperature(℃)
|
|
MINI-2G652D-PE
|
2
|
2.0±0.1
|
4
|
20 times ofcable diameter
|
-30 to +50
|
|
MINI-4G652D-PE
|
4
|
2.0±0.1
|
4
|
|
|
|
MINI-6G652D-PE
|
6
|
2.3±0.1
|
5
|
|
|
|
MINI-8G652D-PE
|
8
|
2.3±0.1
|
5
|
|
|
|
MINI-12G652D-PE
|
12
|
2.3±0.1
|
5
|
|
|
|
MINI-24G652D-PE
|
24
|
2.3±0.1
|
7.5
|
|
|
| type | GCYFXY-**F(MTE +diameter) | ||||
| fiber type | MTE1.8 | MTE1.8 | MTE2.0 | MTE2.3 | MTE2.8 |
| 2~4 | 2~4 | 6~12 | 2~12 | 14~24 | |
|
HDPEjacket thickness |
standard :0.2mm min:0.15mm | ||||
| standard diamete | 1.8mm | 2.0mm | 2.3mm | 2.5mm | 2.8mm |
| a.p. weight | 2.6kg/km | 4.0kg/km | 5.0km/km | 6.0kg/km | 7.0kg/km |
| fiber attenuation (singlemode) |
1310nm/1550nm≤0.35/0.22dB/km | ||||
| Max tensile | 40N | 40N | 50N | 60N | 60N |
| max crunch | 600N/100mm | ||||
| allowable min static / dynamic radious diameter |
10times/20 times cable diameter  |
||||
| adapt tem | storage -30~+60℃; operation -10~+40℃; work -20~+50℃ | ||||
| cable life time (appoximate) |
25 years | ||||
| test equipment | the blowing distance for corresponding cable in different micro duct |
||
| PRM-196 , PR140 atmospheric pressure:13bar |
fiber count | micro duct type | micro duct type |
| 3.5/5.0 | 5.5/7.0mm | ||
| 2~12 core | blowing 800m | blowing 1500m | |
| 14~24 core | blowing 500m | blowing 1500m | |
