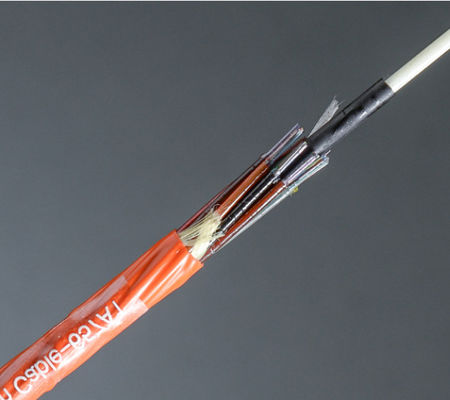

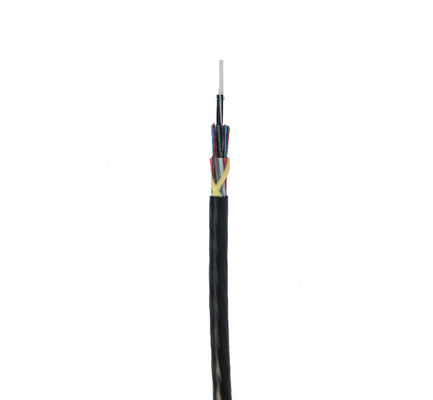

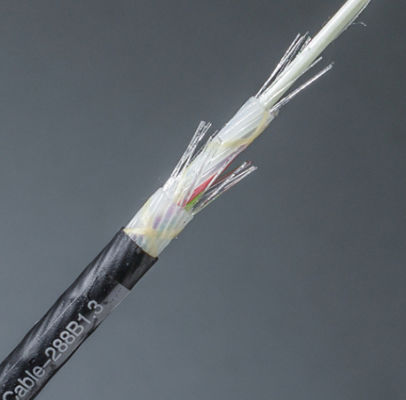

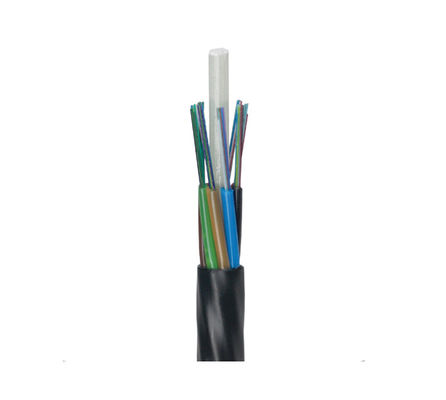

GCYFTY Duct Micro Air Blown Fiber Optic Cable
Description
Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.
We are a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
Applications
Long-distance communication,LAN
Used for air-blown laying in micro-tube
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant

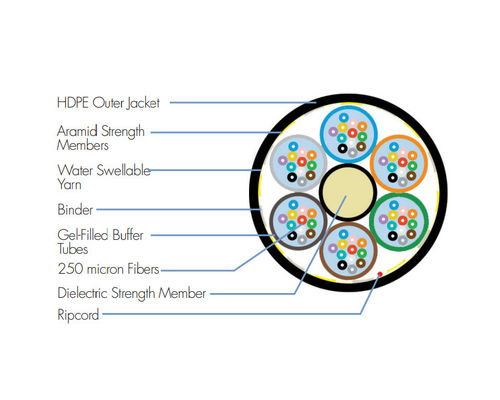

Specially designed compact structure is good at preventing loose tubes from shrinking
Perfect cable structure with high fiber density
Accurate fiber length balance to ensure stable performance
Gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Greater blowing distance
Cable parameters
| test equipment | the blowing distance for corresponding cable in different micro duct |
||
| PRM-196 , PR140 atmospheric pressure:13bar |
fiber count | micro duct type | micro duct type |
| 3.5/5.0 | 5.5/7.0mm | ||
| 2~12 core | blowing 800m | blowing 1500m | |
| 14~24 core | blowing 500m | blowing 1500m | |
| type | GCYFXY-**F(MTE +diameter) | ||||
| fiber type | MTE1.8 | MTE1.8 | MTE2.0 | MTE2.3 | MTE2.8 |
| 2~4 | 2~4 | 6~12 | 2~12 | 14~24 | |
|
HDPEjacket thickness |
standard :0.2mm min:0.15mm | ||||
| standard diamete | 1.8mm | 2.0mm | 2.3mm | 2.5mm | 2.8mm |
| a.p. weight | 2.6kg/km | 4.0kg/km | 5.0km/km | 6.0kg/km | 7.0kg/km |
| fiber attenuation (singlemode) |
1310nm/1550nm≤0.35/0.22dB/km | ||||
| Max tensile | 40N | 40N | 50N | 60N | 60N |
| max crunch | 600N/100mm | ||||
| allowable min static / dynamic radious diameter |
10times/20 times cable diameter  |
||||
| adapt tem | storage -30~+60℃; operation -10~+40℃; work -20~+50℃ | ||||
| cable life time (appoximate) |
25 years | ||||
