Name: Adss Fiber Optic Cables 2 4 8 24 48 96 Core 12 Fiber G652D Single Mode Aerial Dark Optical Fiber Cable ADSS Outdoor
Brand: ODM/OEM
SKU: ADSS
Price: 0.10 USD
Availability: InStock
Rating: 5 (157 reviews)

Adss Fiber Optic Cables 2 4 8 24 48 96 Core 12 Fiber G652D Single Mode Aerial Dark Optical Fiber Cable ADSS Outdoor

1000 meters

MOQ

$0.10 - $0.85/meters

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Outdoor Fiber Optic Cable

Number Of Conductors: ≥ 10

Product Name: ADSS Fiber Optic Cable

Application: Aerial Fiber Optic Cable

Jacket Material: PE

Fiber Count: 2 Core To 144core

Fiber Type: OS1/OS2,OM1,OM2,OM3,OM4

Keywords: ADSS

Function: Delivery Signal Light

Length Per Roll: 2km/3km/4km 24 Core Fiber Optic Cable ADSS

Heath Material: PE Or AT For Aerial Fiber Optic Cable ADSS

Basic Infomation

Place of Origin: China

Brand Name: ODM/OEM

Certification: CE RoHS FCC ISO9001, RoHS, CE

Model Number: ADSS

Payment & Shipping Terms

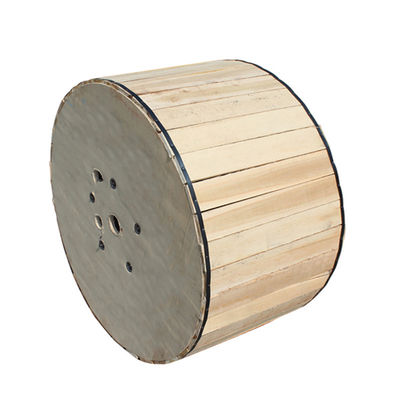

Packaging Details: 2 Km to 6 Km/drum , fumigated wooden or iron drum as customer required

Payment Terms: T/T, Western Union

Supply Ability: 1000 Kilometer/Kilometers per Day

Gallery

Adss Fiber Optic Cables 2 4 8 24 48 96 Core 12 Fiber G652D Single Mode Aerial Dark Optical Fiber Cable ADSS Outdoor

Product Description

Adss Fiber Optic Cables 2 4 8 24 48 96 Core 12 Fiber G652D Single Mode Aerial Dark Optical Fiber Cable ADSS Outdoor

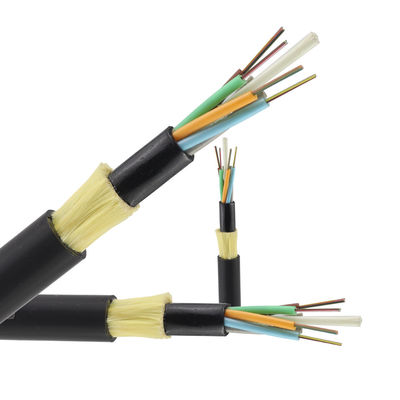

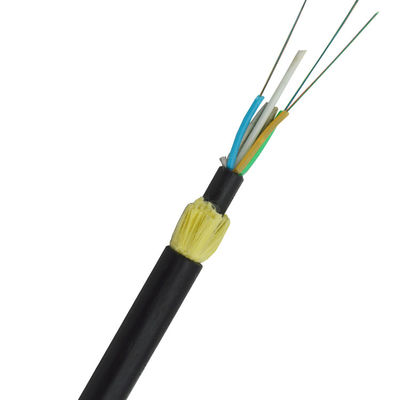

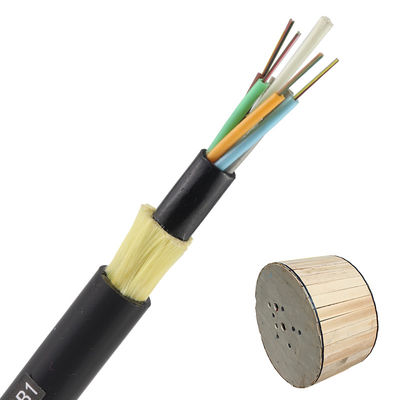

ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound, the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.

Applications

Railways, power and telecommunication pole routes. Suitable for installation on poles and on the power distribution network. Aerial self-supporting applications at short, medium and long span distances. Ideal for transmission lines with high electrical field strength. Can be used in areas suffered from frequent lightningldeal for transmission lines with high electrical field strength.

Features

PE or AT sheath ensures safety of cable in high voltage environment. All-dielectric structure and light weight provide easy. installation and good electromagnetic resistance. Reliable performance of moistureproof and waterproof.

Cable type

OD(mm)

NominalWeight(kg/km)

tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)

Short-term

Long-term

Short-term

Long-term

Dynamic

Static

ADSS-2~48Xn

12.0±0.5

140.0

3600

1200

1000

500

20D

15D

ADSS-96Xn

14.0±0.5

165.0

3600

1200

1000

500

20D

15D

ADSS-144Xn

16.0±0.5

205.0

3600

1200

1000

500

20D

15D

Storage/Working temperature(℃)

-40~+70
