Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication

100 meters
MOQ
$0.15 - $0.58/meters
Price
Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 2 To 24 Fiber
Number Of Conductors: ≥ 10
Application: Telecommunication
Fiber Type: G655,G652D, G657A1, G657A2
Fiber Brand: Corning, OFS, YOFC
Strength Member: 1.2mm Two Parallel Steel Wire
Product Name: Outdoor Fiber Optic Cable
Jacket Material: PE PVC LSZH
Storage Temperature(℃): -40~+70
Packing: 2KM/Drum
Basic Infomation
Place of Origin: shenzhen
Brand Name: ODM/OEM
Certification: CE RoHS FCC ISO9001, RoHS, CE
Model Number: Outdoor Fiber Optic Cable
Payment & Shipping Terms
Packaging Details: 2KM/Wood Spool
Payment Terms: T/T, Western Union
Supply Ability: 10000 Kilometer/Kilometers per Week
Product Description
Products Description



Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication

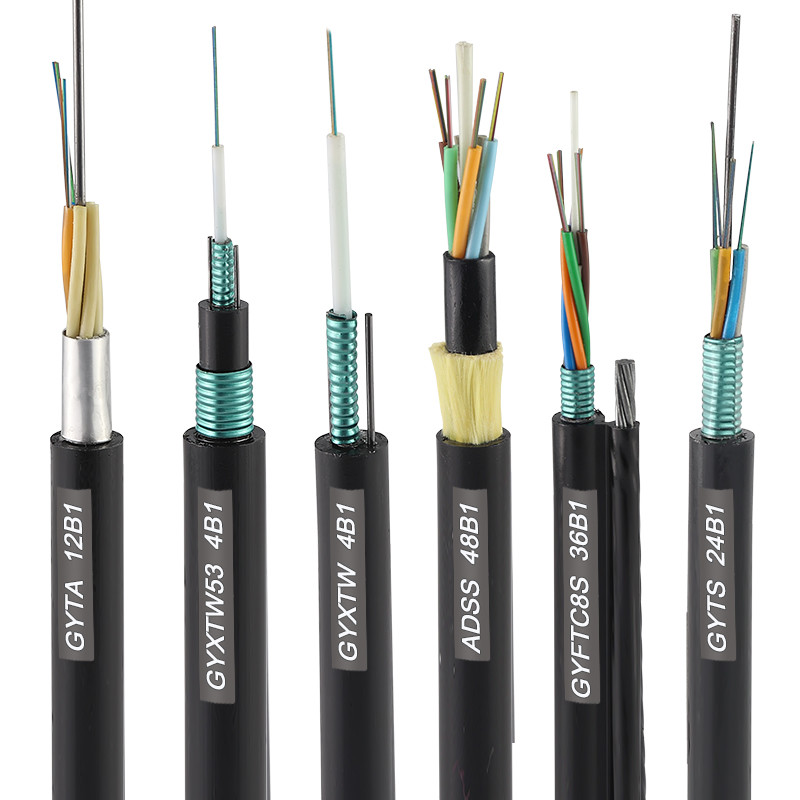

Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication 0
GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW from 2 fiber cores to 24 fiber cores. Both single mode type and multi mode types are available.

24 core anti-tracking optical fiber We are 11 years fiber optic cable manufacturer. Welcome to go to the factory tour! Send message to us can get free samples.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

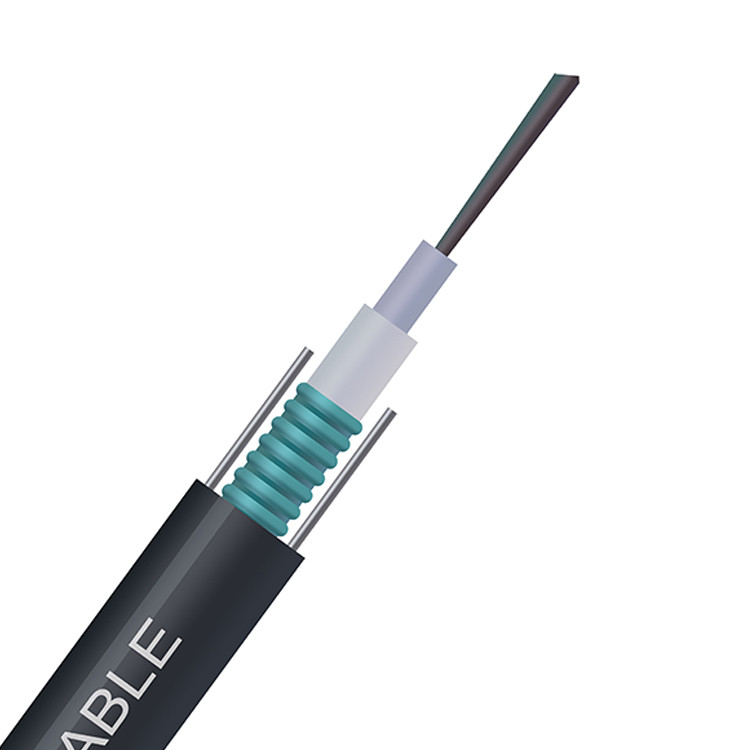

Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication 1

Features

Good tensile strength and crush
Resistance performance
Good moisture-resistance, water blocking, and flexibility
Double wire as strength member provides excellent strain performance

Applications

Access network
Bureaus network
Aerial and duct application
Metropolitan network

Technical parameters


Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GYXTW-2~24Xn
8.0±0.2
110.0
1500
600
3000
1000
20D
15D
Storage/Working temperature(℃)


-40~+70






Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.

They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.

we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

APPLICATION

Long-distance communication,LAN

Moisture-proof and rodent-proof

Duct, Aerial

FEATURES

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Specially designed compact structure is good at preventing loose tubes from shrinking

PE sheath protects cables form ultraviolet radiation

The following measure are taken to ensure the cable watertight

Steel wire used as the central strength member

Loose tube filling compound

100% Cable core filling

Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant andalso obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

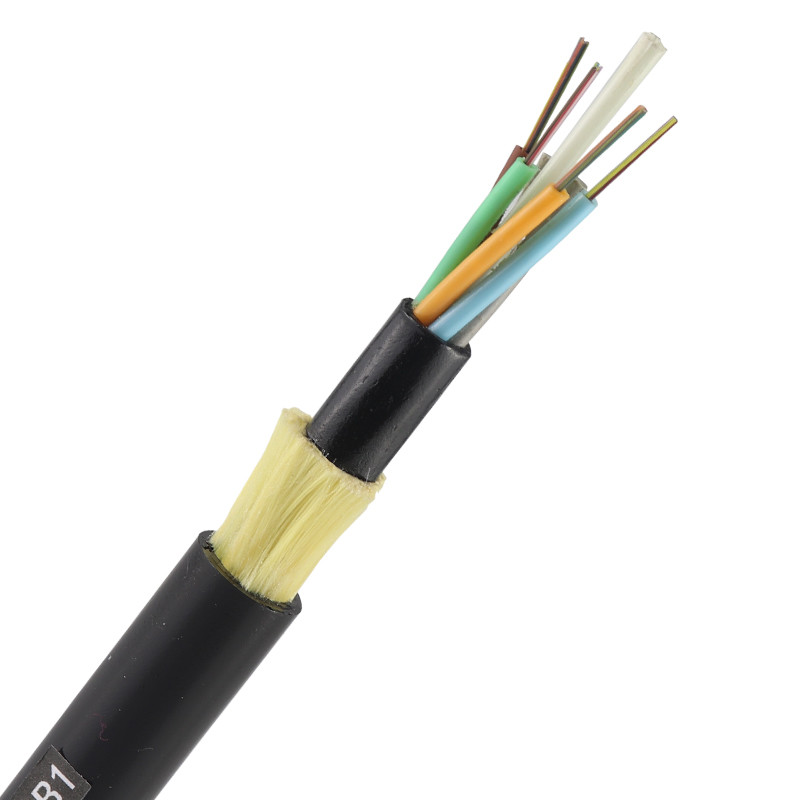

Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication 2

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery



Sample

Within 1-2 working days



Wholesale orders

3-7 working days according various quantities

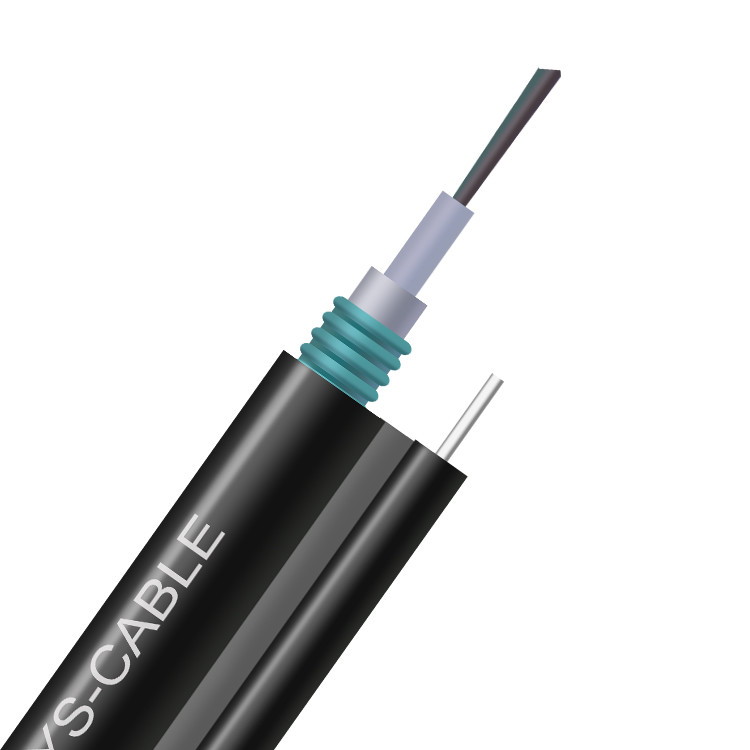

Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication 3

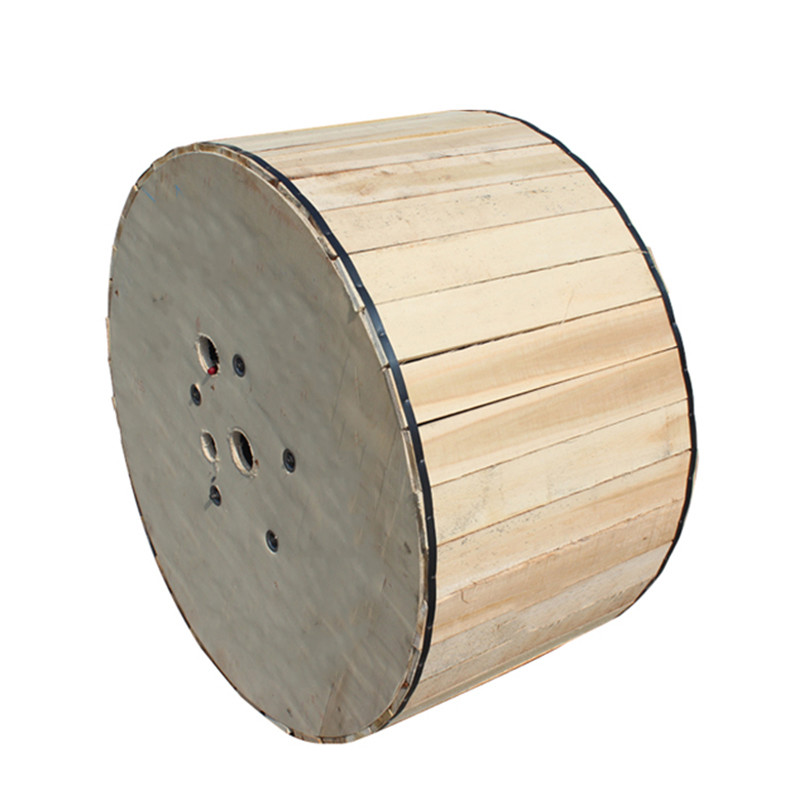

Outdoor Optical Fiber Cable Single Mode Fiber Optic Cable For telecommunication 4
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

5. What certificate we have?
Answer: ISO 9001: 2008, RoSH, CE, High and New Tech Enterprise Certficate.
