GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable

100 meters
MOQ
$0.15 - $0.58/meters
Price
GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Use: FTTP
No. Of Fiber: 24.
Multi-Mode Fiber: OM1/OM2/OM3
Single-Mode Fiber: G655,G652D, G657A1, G657A2
Fiber Count: 2 To 144 Fiber
Number Of Conductors: ≥ 10
Fiber Type: G655,G652D, G657A1, G657A2
Application: Aerial, Duct
Fiber Brand: Corning, OFS, YOFC
Sample: 12 Core Fiber Optic Cable ADSS Sample Is Available
Jacket Material: PE PVC LSZH
Product Name: Outdoor Fiber Optic Cable
Storage Temperature(℃): -40~+70
Packing: 2KM/Drum
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: CE RoHS FCC ISO9001, RoHS, CE
Model Number: GYTS
Payment & Shipping Terms

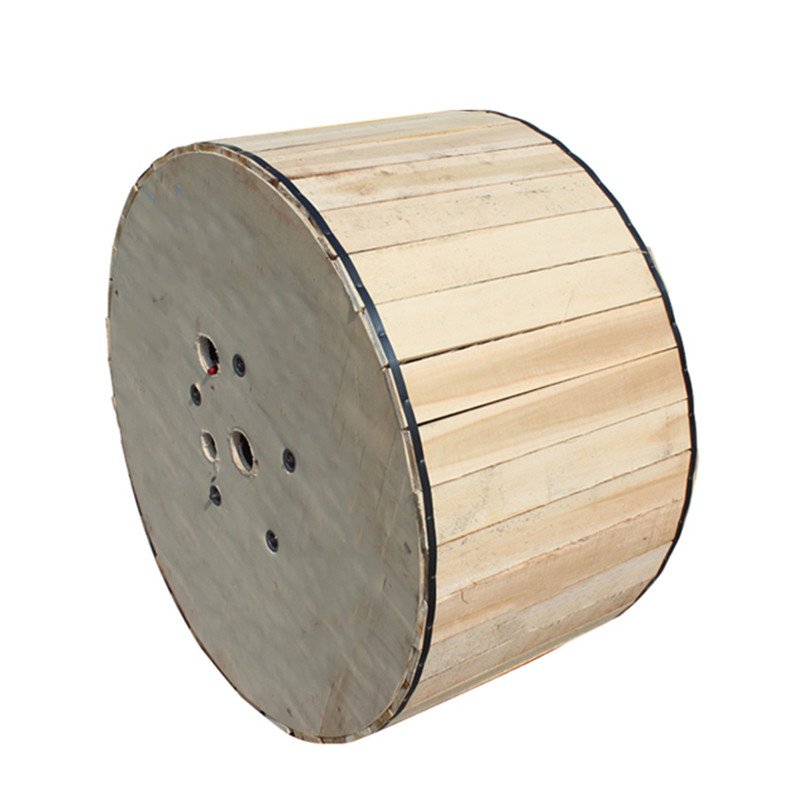

Packaging Details: 2KM/Wood Spool
Payment Terms: T/T, Western Union
Supply Ability: 10000 Kilometer/Kilometers per Week
Product Description
Products Description



GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable

GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable 0

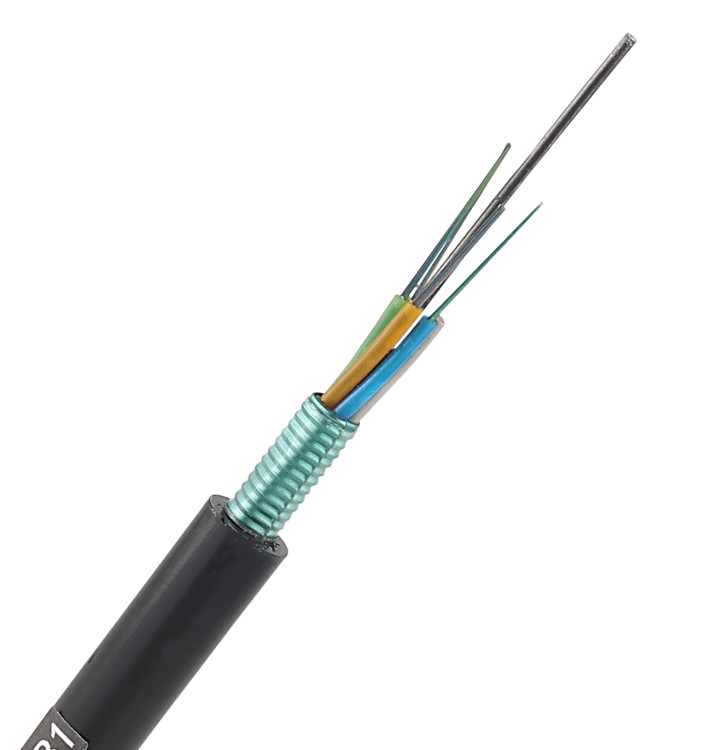

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.
GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable 1

48 core anti-tracking optical fiber We are 11 years fiber optic cable manufacturer. Welcome to go to the factory tour! Send message to us can get free samples.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable 3

Features

Up to 144 fiber cores
The loose tube stranding technology make the fibers have good secondary excess length
Metal strength member provides excellent strain performanc
Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features
The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress

Applications

Stallation in aerial or duct environment for long haul communication
LAN, especially suitable for the situation of high requirements to lateral pressure resistance

Technical parameters


Cable Type Fiber Count Tubes Fillers Cable Diameter
(mm)
Cable Weight
(kg/km)
Tensile Strength (N) Crush Resistance
(N/100mm)
Bending Radius
(mm)
Long/Short Term Long/Short Term

Static/

Dynamic

GYTS-2~6 2~6 1 4 10.2 116 600/1500 300/1000 10D/20D
GYTS-8~12 8~12 2 3 10.2 116 600/1500 300/1000 10D/20D
GYTS-14~18 14~18 3 2 10.2 116 600/1500 300/1000 10D/20D
GYTS-20~24 20~24 4 1 10.2 116 600/1500 300/1000 10D/20D
GYTS-26~30 26~30 5 0 10.2 116 600/1500 300/1000 10D/20D
GYTS-32~36 32~36 6 0 10.6 129 1000/3000 300/1000 10D/20D
GYTS-38~48 38~48 4 1 11.2 141 1000/3000 300/1000 10D/20D
GYTS-50~60 50~60 5 0 11.2 141 1000/3000 300/1000 10D/20D
GYTS-62~72 62~72 6 0 12 159 1000/3000 300/1000 10D/20D
GYTS-74~84 74~84 7 1 13.6 209 1000/3000 300/1000 10D/20D
GYTS-86~96 86~96 8 0 13.6 209 1000/3000 300/1000 10D/20D
GYTS-98~108 98~108 9 1 15.4 232 1000/3000 300/1000 10D/20D
GYTS-110~120 110~120 10 0 15.4 232 1000/3000 300/1000 10D/20D
GYTS-122~132 122~132 11 1 17.2 280 1000/3000 300/1000 10D/20D
GYTS-134~144 134~144 12 0 17.2 280 1000/3000 300/1000 10D/20D

Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.

They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.

we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

APPLICATION

Long-distance communication,LAN

Moisture-proof and rodent-proof

Duct, Aerial

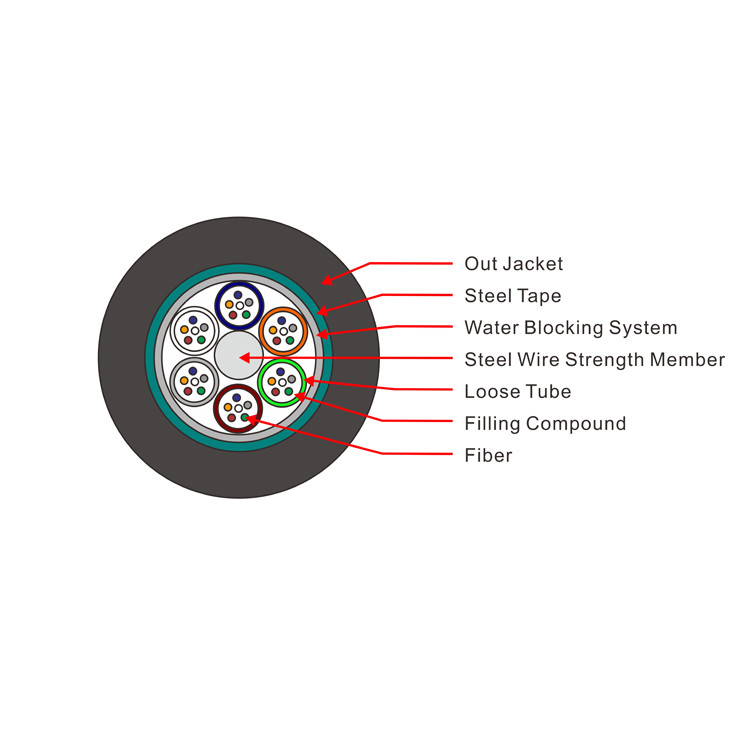

FEATURES

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Specially designed compact structure is good at preventing loose tubes from shrinking

PE sheath protects cables form ultraviolet radiation

The following measure are taken to ensure the cable watertight

Steel wire used as the central strength member

Loose tube filling compound

100% Cable core filling



Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Looking forward to cooperate with you.



GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable 6

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.


Packing & Delivery

Sample

Within 1-2 working days

Wholesale orders

3-7 working days according various quantities

GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable 7
GYTA / GYXTW53 / GYXTW / ADSS / GYFTC8S / GYTS fiber optic cable 8
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2008, RoSH, CE, High and New Tech Enterprise Certficate.
