Home /Products/Fiber Optic Cable/OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric

OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric

1000 meters
MOQ
$90.00 - $460.00/kiloamperes
Price
OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Number Of Conductors: ≥ 10
Product Name: Gyts Fiber Optic Cable
Fiber Type: Single Mode Or Multimode
Jacket Color: Black
Fiber Count: 2 To 288 Fiber
Optical Fiber Cable: PE/LSZH
Application: FTTH Telecommunications, Outdoor
Packing: Wooden Drum
Service: OEM&ODM
Delivery: Fast Shipment
Single-Mode Fiber: G655,G657A1,G657A2,G6572D,G657B3
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: ADSS GYTA GYTS GYXTW
Payment & Shipping Terms
Packaging Details: 1km or 2km/roll<br>1.Fumigation of wood drum, plywooden drum or wooden drum<br>2.carton box<br>3.customized
Payment Terms: T/T, Western Union
Supply Ability: 50 Kilometer/Kilometers per Day
Product Description
Product Description
OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Price
OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric 0

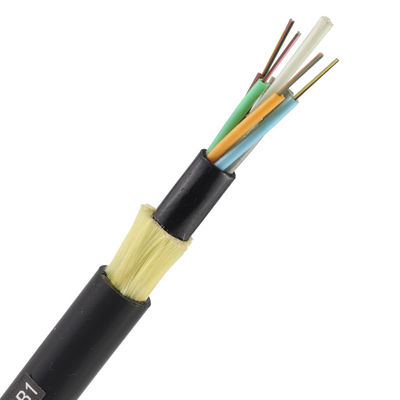

ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound,the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
ADSS-2~48Xn
12.0±0.5
140.0
3600
1200
1000
500
20D
15D
ADSS-96Xn
14.0±0.5
165.0
3600
1200
1000
500
20D
15D
ADSS-144Xn
16.0±0.5
205.0
3600
1200
1000
500
20D
15D
Storage/Working temperature(℃)


-40~+70





OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric 1

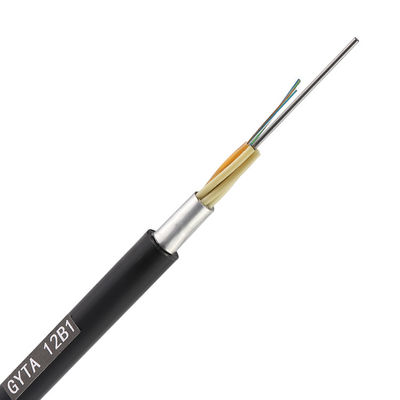

GYTA Cable
GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric 2
OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric 3

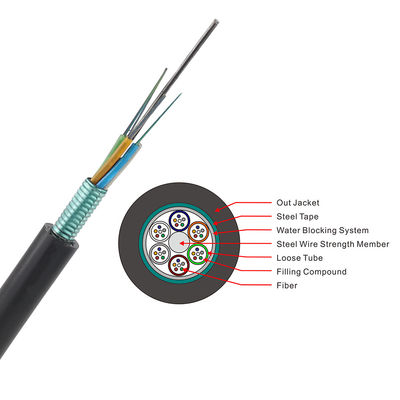

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GYTS-2~60Xn
10.5±0.5
88.0
1500
600
1000
300
20D
15D
GYTS-62~72Xn
11.5±0.5
102.0
1500
600
1000
300
20D
15D
GYTS-74~96Xn
13.0±0.5
130.0
1500
600
1000
300
20D
15D
GYTS-98~144Xn
15.5±0.5
156.0
1500
600
1000
300
20D
15D
Storage/Working temperature(℃)


-40~+70

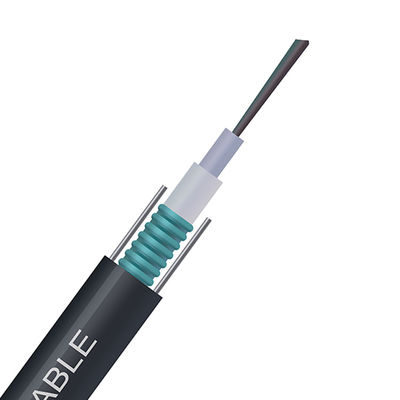

GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW from 2 fiber cores to 24 fiber cores. Both single mode type and multi mode types are available.
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GYXTW-2~24Xn
8.0±0.2
110.0
1500
600
3000
1000
20D
15D
Storage/Working temperature(℃)


-40~+70





OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric 4
OEM Factory Supply ADSS GYTA GYTS GYXTW 4 8 12 24 48 96 144 288 Core Fiber Optic Cable, Outdoor Optical Fiber Cable Pric 5
