GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable

20 kilometers
MOQ
$27.00/kilometers 20-49 kilometers
Price
GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Outdoor Fiber Optic Cable, Cat 1
Number Of Conductors: 1
Fiber Count: 1~12
Cable Weight: 10kg/km
Cable Diameter: 5.0*2.0mm
Fiber Brand: Corning, OFS, YOFC
ROHS: YES
Cable Color: White, Black
Jacket Material: LZSH
Application: FTTH FTTB FTTX Network
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: ISO9001-2000, RoHS, CE
Model Number: GJXFH
Payment & Shipping Terms

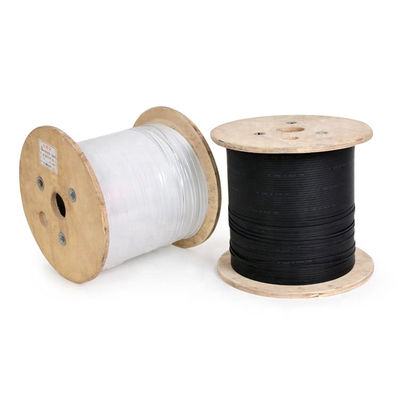

Packaging Details: 2KM/PLYWOOD DRUM<br>DRUM SIZE: 40*40*37cm<br>WEIGHT: 21KG/DRUM
Payment Terms: T/T, Western Union
Supply Ability: 100000 Kiloampere/Kiloamperes per Week
Product Description
Products Description



GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable

GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 0
FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference thancommon indoor fiber cables and it's ideal for indoor cabling, end users directly cabin, and access network.
GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 1
GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 2

Features

Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance
Meet the requirement of thunder-proof, anti-rodent or waterproof
Good to use for fiber to the home last mile solution

Application

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
Technical parameters
Cable type
OD(mm)
NominalWeiNominalWeight(kg/km)ght(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GJYXFCH-1Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-2Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-3Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-4Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
Storage/Working temperature(℃)


-20~+60





GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 3






FTTH DROP CABLE

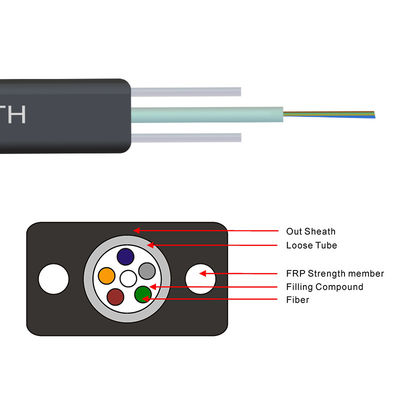

The optical fiber unit is positioned in the centre. Two steel wires or Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 4
GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 5
GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 6
GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable 7
