1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable

1000 meters
MOQ
$0.02 - $0.70/meters
Price
1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable, Cat 1
Number Of Conductors: 2
Fiber Count: 1~12
Cable Weight: 10kg/km
Cable Diameter: 5.0*2.0mm
Fiber Brand: Corning, OFS, YOFC
ROHS: YES
Cable Color: White, Black
Jacket Material: LZSH
Application: FTTH FTTB FTTX Network
Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: ISO9001-2000
Model Number: GJXFH
Payment & Shipping Terms
Packaging Details: 1km / unit
Payment Terms: T/T, Western Union
Supply Ability: 1000 Kiloampere/Kiloamperes per Day
Product Description
Products Description

1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable


1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable 0
FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference thancommon indoor fiber cables and it's ideal for indoor cabling, end users directly cabin, and access network.

Features

Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance
Meet the requirement of thunder-proof, anti-rodent or waterproof
Good to use for fiber to the home last mile solution
1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable 1
1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable 2

Application

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
Technical parameters
Cable type
OD(mm)
NominalWeiNominalWeight(kg/km)ght(kg/km)
tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)




Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GJYXFCH-1Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-2Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-3Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-4Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
Storage/Working temperature(℃)


-20~+60

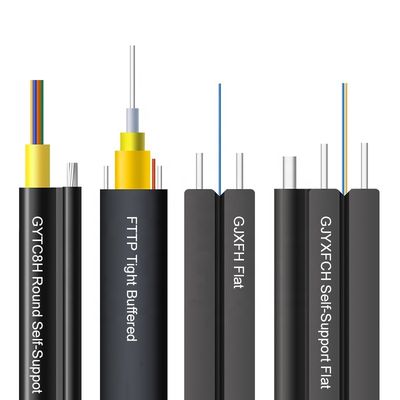

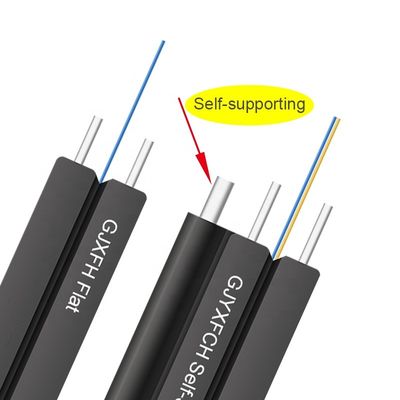

Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types. Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance. Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications. Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.



FEATURES



Good mechanical and environmental characteristics; Flame retardant characteristics meets the requirements of relevant standards; The mechanical characteristics meets the requirements of relevant standards; Soft, flexible, easy to splice, and with big capacity data transmission; Meet various requirements of market and clients.



Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world,Looking forward to cooperate with you.

1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable 3

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery



Sample

Within 1-2 working days



Wholesale orders

3-7 working days according various quantities

1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable 4
1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable 5
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2008, RoSH, CE, High and New Tech Enterprise Certficate.
