Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

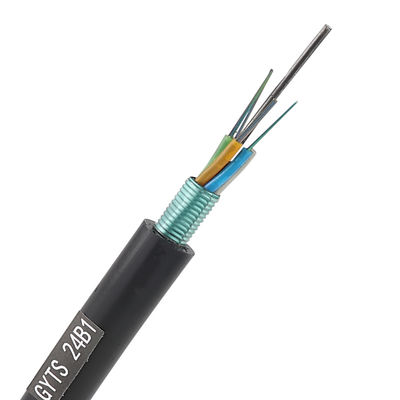

GYTS 46 core multi mode fiber optic cable corrugated duct type
Long-distance communication,LAN
Moisture-proof and rodent-proof
Duct, Aerial
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cables form ultraviolet radiation

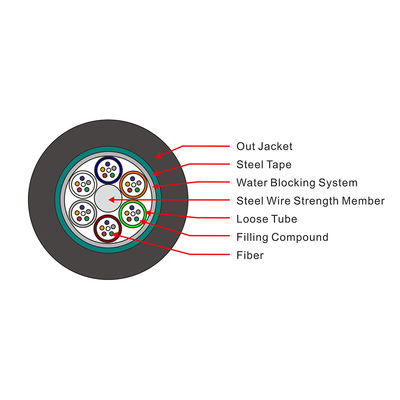

The following measure are taken to ensure the cable watertight

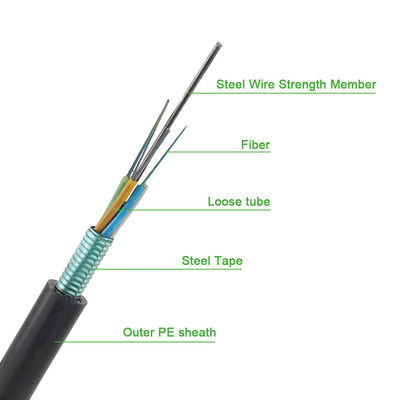

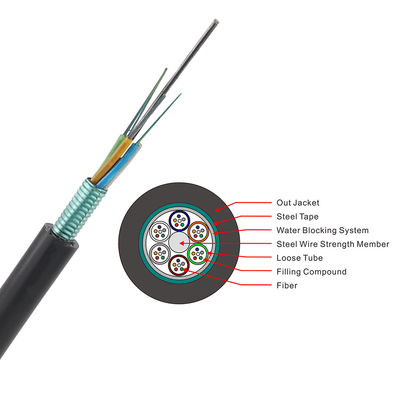

Steel wire used as the central strength member
Loose tube filling compound
100% Cable core filling
|
Cable type
|
OD(mm)
|
NominalWeight(kg/km)
|
tensile strength(N)
|
|
Crush Resistance(N/100MM)
|
|
Bending Radius(mm)
|
|
|||||||
|
|
|
|
Short-term
|
Long-term
|
Short-term
|
Long-term
|
Dynamic
|
Static
|
|||||||
|
GYTS-2~60Xn
|
10.5±0.5
|
88.0
|
1500
|
600
|
1000
|
300
|
20D
|
15D
|
|||||||
|
GYTS-62~72Xn
|
11.5±0.5
|
102.0
|
1500
|
600
|
1000
|
300
|
20D
|
15D
|
|||||||
|
GYTS-74~96Xn
|
13.0±0.5
|
130.0
|
1500
|
600
|
1000
|
300
|
20D
|
15D
|
|||||||
|
GYTS-98~144Xn
|
15.5±0.5
|
156.0
|
1500
|
600
|
1000
|
300
|
20D
|
15D
|
|||||||
|
Storage/Working temperature(℃)
|
|
|
-40~+70
|
|
|
|
|
|
|||||||
