2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot

100 pieces
MOQ
$0.50 - $2.00/pieces
Price
2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTTH
Network: FIBER OPTIC
Name: 90 Degree Fiber Connector Boot
Product Name: Fiber Optic Patch Cord
Fiber Type: G652D,G657A1,G657A2,G655
Color: Aqua,Yellow,Orange,Purple
Material: LSZH, PVC, OFNP
Connector Type: SC,LC
Mode: SM MM
Cable Diameter: 0.9mm, 2mm Or 3mm
Cable Length: 1m Or Customized
Fiber Connector Boot: 90 Degree,45 Degree
High Light:

3.0mm SC LC Fiber Patch Cable

,

2.0mm SC LC Fiber Patch Cable

,

90 Degree sc lc patch cable

Basic Infomation
Place of Origin: China
Brand Name: OEM
Model Number: LC Fiber Optic patch cord
Payment & Shipping Terms
Packaging Details: 1pcs in individual bag or match your requirement
Payment Terms: T/T, Western Union
Supply Ability: 2000000 Piece/Pieces per Quarter
Product Description
Product Description



SC LC Fiber Optic patch cord 45 90 Degree Flex Angled Boot 2.0mm 3.0mm LSZH Jacket fiber optical patch cord

45/90 degree angled boot fiber optic patch cords have the same performance as regular straight boot patch cords. The only difference is that they have 45/90 degree rubber boot instead of a straight one. All common type of connectors are available with 90 degree boot including SC, ST, LC E2000, FC etc. Unifiber manufactures a whole line of fiber optic patch cords.

APPLICATION

Data Centre Telecommunication networks CATV LAN and WAN FTTX Broadband network



FEATURES

Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability

Parameters
45/90 degree angled boot SC,LC fiber optic patch cord

Fiber Type
SM(G.652/G.657A)
MM(OM1/OM2/OM3/OM4)
Jacket Materials
LSZH/OFNR/PVC

Connector Type
SC/LC/ST/LC/MU/MTRJ/MPO/E2000

Ferrule Materials
Ceramic

Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
≥35dB(PC/UPC)
Exchangeability
≤ 0.2dB

Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord

Operating Temperature (° C)
-10~ + 70

Storage Temperature (° C)
-40 ~ +85

Package
1unit/bag

*All values specified are with connectors.

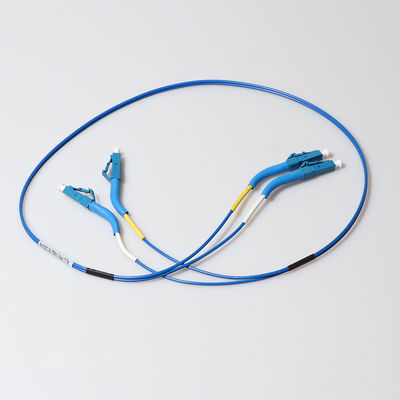

2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot 0

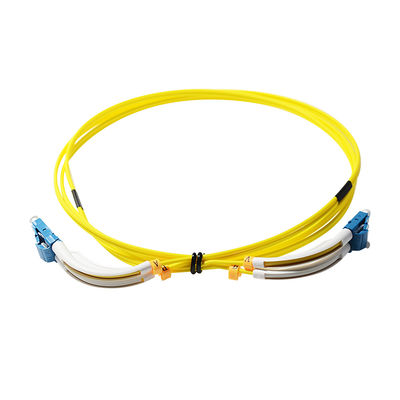

2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot 1

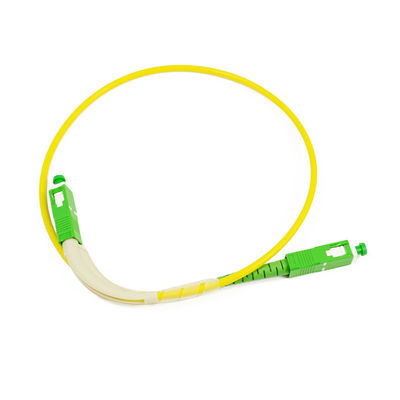

2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot 2
Company Profile

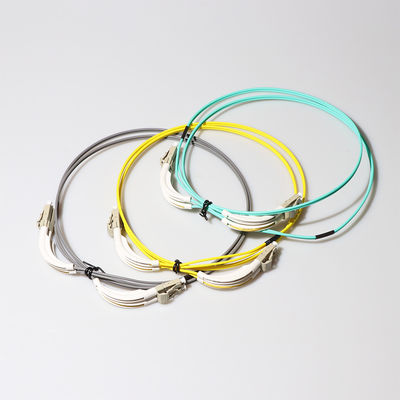

2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot 3
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

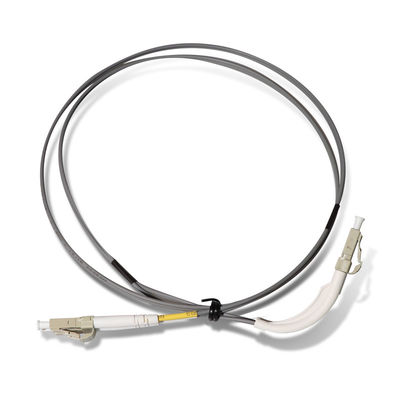

2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot 4
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

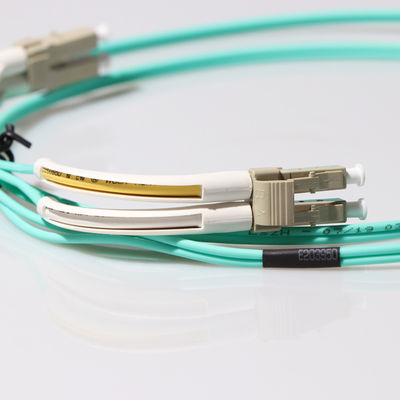

2.0mm 3.0mm SC LC Fiber Patch Cable With 90 Degree Flex Angled Boot 5
