9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC

100 pieces
MOQ
$0.95/pieces 100-4999 pieces
Price
9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTTH
Warranty Time: 5
Network: 4g, 3G
Product Name: ST LC FC SC-SC/UPC Fiber Optic Patch Cord

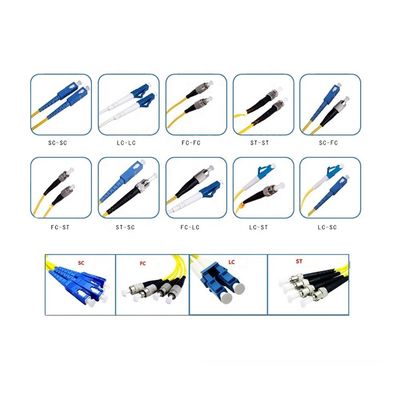

Connector Type: SC,LC,FC,ST
Nominal Outer Diameter: 0.9mm/2.0mm/3.0mm
Core: Simplex Or Duplex
Mode: Single Mode Or Multi Mode
Color: Orange, Yellow, Blue, Aqua
Jacket Material: LSZH,PVC,OFRN,ORNP
Cable Diameter: 1.2mm,1.6mm,2.0mm,3.0mm
Length: Customized
Application: Connections To CATV Telecommunication Networks
High Light:

9/125 Single Mode Fiber Optical Cable

,

Single Mode Fiber Optical Cable Duplex

,

SC UPC Duplex Fiber Cable

Basic Infomation
Place of Origin: China
Brand Name: OEM/ODM
Certification: RoHS
Model Number: PC/UPC/APC
Payment & Shipping Terms
Packaging Details: Individual box or according to customer's request
Payment Terms: T/T, Western Union
Product Description
Product Description




High quality Single Mode 9/125 Duplex ST LC FC SC-SC/UPC Fiber Optic Patch Cord
1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC
profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical



FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 0
9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 1
Mode
Single mode

Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm

850/1310nm
Durability(500 Matings)
≤0.2dB


Operating Temperature
-40℃~+60℃


Storage Temperature
-45℃~+85℃


Fire Resistant
IEC 60794-2-30


Standards-Compliant
ROHS,IEC and GR-326


9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 2
9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 3
9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 4
9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 5
9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 6
9/125 Single Mode Fiber Optical Cable Duplex ST LC FC SC - SC UPC 7
