3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125

100 pieces
MOQ
$0.78 - $1.50/pieces
Price
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Cable
Use: FTTH
Fiber Type: Singlemode 9/125
Inserion Loss: <0.25db
Return Loss: >50db
Fiber Brand: Corning, YOFC, OFS ...
Connector Type: SC,LC,FC,ST
Jacket Color: Yellow
Jacket Material: LSZH,PVC,OFRN,ORNP
Cable Diameter: 1.2mm,1.6mm,2.0mm,3.0mm
Length: Customized
Multi-Mode Fiber: OM1,OM2,OM3,OM4
Single-Mode Fiber: G652D,G657A1,657A2,G655
No. Of Fiber: 1.
High Light:

3mm Fiber Cable Patch Cord

,

Fiber Cable Patch Cord Simplex

,

9/125 single mode fiber patch cable

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: ROHS; ISO
Model Number: FC/UPC
Payment & Shipping Terms
Packaging Details: Individual box or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 20000 Piece/Pieces per Day
Product Description

3.0mm SC UPC-SC APC Simplex Single mode 9/125 Optical Fiber Patch cord Fiber Jumper fiber SC patch cord

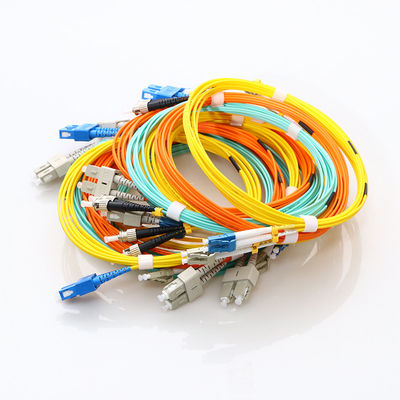

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 0
Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
3.0mm SC UPC SC APC Simplex Single mode 9/125 Optical Fiber Patch cord Fiber Jumper fiber SC patch cord

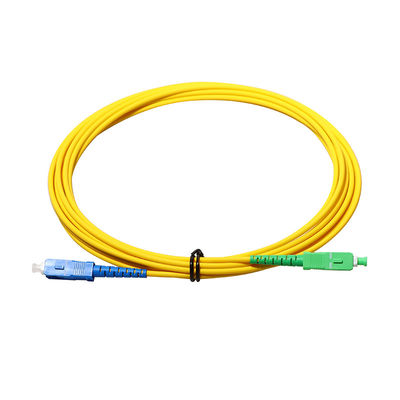

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 1

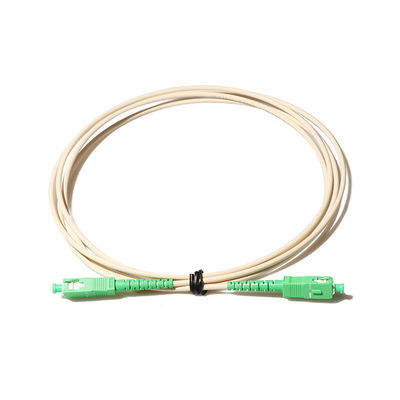

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 2

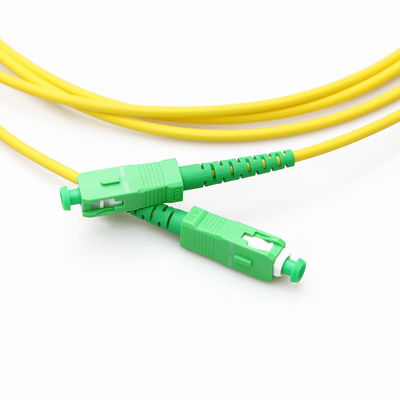

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 3

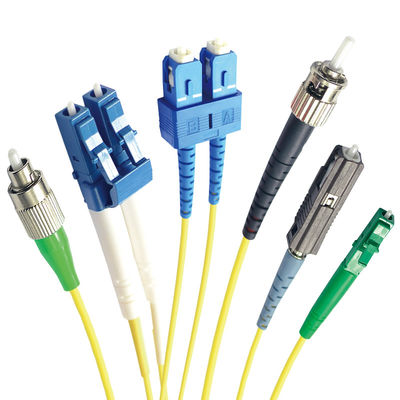

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 4



APPLICATION

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical



FEATURES

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

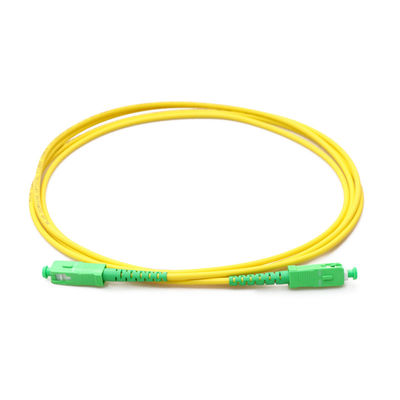

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 5
Mode
Single mode

Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm

850/1310nm
Durability(500 Matings)
≤0.2dB


Operating Temperature
-40℃~+60℃


Storage Temperature
-45℃~+85℃


Fire Resistant
IEC 60794-2-30


Standards-Compliant
ROHS,IEC and GR-326


Fiber type
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2
(4)9/125-G657B3


Multimode:
(5)50/125-OM2
(6)62.5/125-OM1
(7)50/125-OM3
(8)50/125-OM4
(9)50/125-OM5
Fiber Brand
YOFC, Corning, Sumitomo, Fujikura





Connector
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC





Cord type
Simplex ,Duplex





Cable diameter
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm





Cable jacket
PVC, OFNR, LSZH, OFNP





length(M)
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized





Main Products
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 6
Fiber Optic Cable
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 8
Patch Cord&Pigtail
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 10
MPO/MTP
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 12
FTTX Cable Assembly
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 14
PLC Splitter
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 16
Fast Connector
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 18
Our Company

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 23 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 8 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 19

INNOVATIVE TECHNOLOGY

We always learn new technology by investing in production facilities, engineering process control systems, and talent development to maintain our status as a leading fiber optic connection solutions.

Packing & Delivery



Sample

Within 1-2 working days



Wholesale orders

3-7 working days according various quantities

3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 20
3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 21
FAQ

1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.

2. What's our main products?
Answer: We dedicate to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.

3. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines

4. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.


3mm Fiber Cable Patch Cord SC UPC - SC APC Simplex Single Mode 9/125 18
