Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord

2 pieces
MOQ
$0.35 - $3.50/pieces
Price
Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTTH, FTTH
Warranty Time: 3
Network: 4g, 3G
Product Name: FTTH SC UPC Drop Cable Patch Cord
Application: FTTH FTTB FTTX Network
Fiber Type: G655,G652D,G657A1,G657A2
Jacket: LSZH,PVC
Return Loss: >45db
Certifaction: ISO9001, ROHS
Cable Type: Single Mode
Cable Jacket Color: Black ,white
No. Of Fiber: 1.
High Light:

Jumper Outdoor FTTH Drop Cable

,

Fiber Outdoor FTTH Drop Cable

,

G657A Fiber Optical Patch Cord

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: fiber drop cable patch cord
Payment & Shipping Terms
Packaging Details: Individual box or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 20000 Piece/Pieces per Quarter
Product Description
Product Description
SC/UPC SC/APC Jumper FTTH outdoor Drop Cable G657A Fiber Optical Cable patch cord
(1) FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building.
(2) FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.
(3) FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12.
(4) FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.

FEATURES

1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

APPLICATION

1.Access Network
2.Telecom/CATV Systems
3.FTTx
FTTH drop cable fiber optic patch cord Performance Parameter



Name
FTTH drop cable fiber optic patch cord


Ferrule type
zirconia ceramics ferrule


IL
≤0.3dB
RL
≥55dB
Fiber core
1,2,4 to 12
Durability
≥1000 times
Jacket
3.1*2.0 or 5.0*2.0mm PVC or LSZH
Wavelength
1310 1550nm
Length
1~1000 meter
Working temperature
-40℃~+80℃

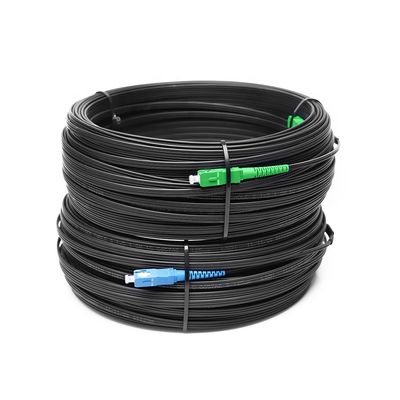

Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 0

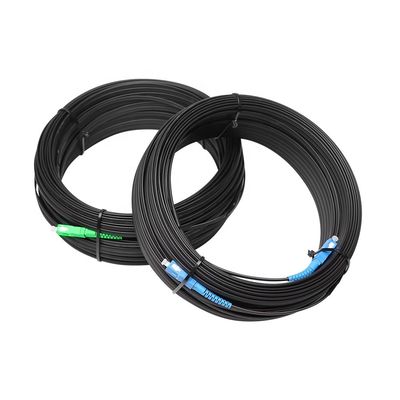

Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 1

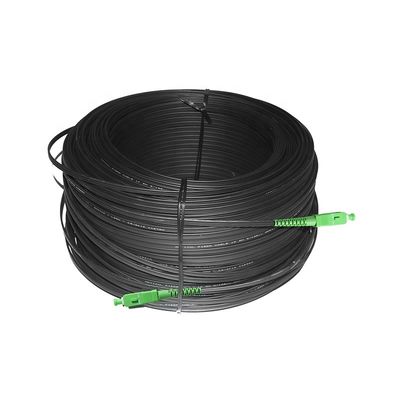

Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 2

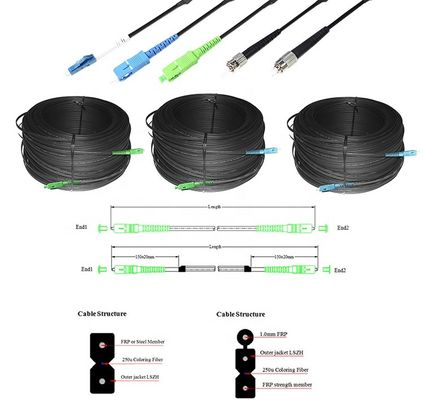

Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 3

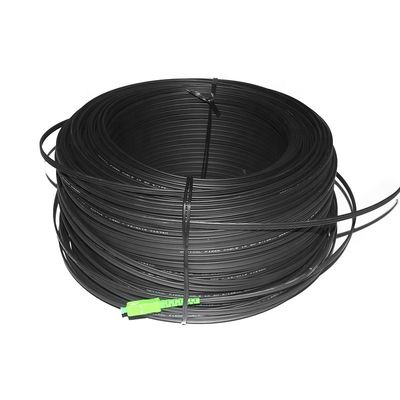

Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 4

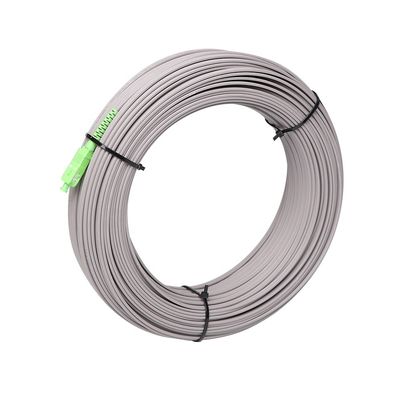

Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 5

Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 6
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
Jumper Outdoor FTTH Drop Cable , G657A Fiber Optical Patch Cord 7
