Industrial FTTH Simplex Fiber Cable Patch Cord With SMA 905 Connector

$1.50 - $9.00/pieces
Price
Industrial FTTH Simplex Fiber Cable Patch Cord With SMA 905 Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fiber Optic Patch Cord
Use: FTTH
Warranty Time: 5
Network: Fiber Optic
Product Name: SMA 905 Fiber Optic Connector Jumper
Connector Type: SMA 905
Fiber Type: SM MM
Fiber Type: Singlemode ,multimode
Inserion Loss: <0.25db
Return Loss: >50db
Jacket Color: Yellow ,Orange
Application1: FTTH FTTB FTTX Network
Application2: Insudtrial Control Power System,etc.
Certifaction: ISO9001, ROHS
High Light:

Simplex Fiber Cable Patch Cord

,

Industrial Fiber Cable Patch Cord

,

FTTH simplex patch cord

Basic Infomation
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Model Number: SMA 905
Payment & Shipping Terms
Packaging Details: Fiber Optic Cable SMA 905 Simplex Patch Cord with SMA 905 connector<br>Individual box or according to customer's request
Payment Terms: T/T, Western Union
Supply Ability: 20000 Piece/Pieces per Quarter
Product Description
Product Description

Fiber Optic Cable SMA 905 Simplex Patch Cord with SMA 905 connector

SMA905 optical fiber connector or terminal with air gap protection modified SMA905 metal connecting head, equipped large core diameter energy fiber can meet the general semiconductor laser and low power solider laser of output energy laser transmission.Connector can be used within the environmental protection technology of non glue technology,for further increase energy fiber cooling effect and service life,meet the need of laser welding and cutting that high power transmission.



APPLICATIONS / SMA 905 connector

1.Food Safety Testing

2.UV for skin care applications

3.Medical light detection device

4.Industrial control, factory automation

5.Industrial silicon, liquid, spectral detection

6.Optical applications experiments on measurement

7.Automobiles and aircraft as well as military applications



FEATURES / SMA 905 connector

1.Good fatigue resistance

2.Connector diversification options, special custom

3.Large core optical fiber, a variety of optional specifications

4.Fiber 105um-1500um optional 190nm-2500nm wavelength range can be selected

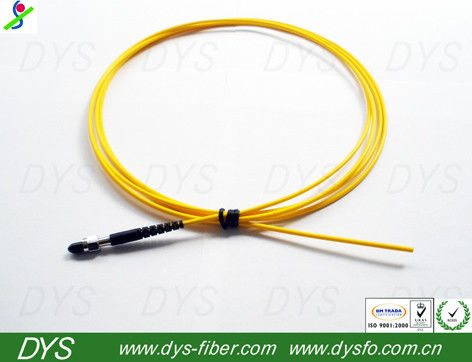

Industrial FTTH Simplex Fiber Cable Patch Cord With SMA 905 Connector 0

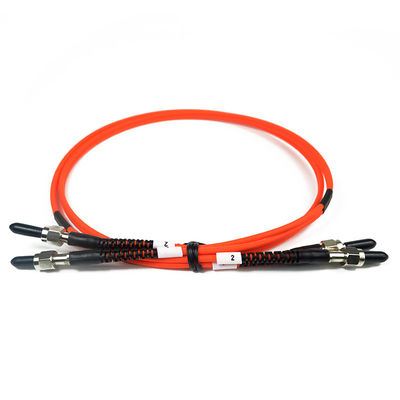

Industrial FTTH Simplex Fiber Cable Patch Cord With SMA 905 Connector 1

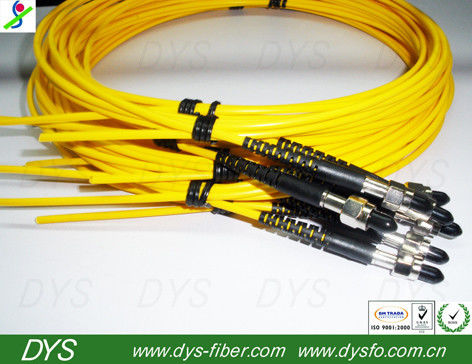

Industrial FTTH Simplex Fiber Cable Patch Cord With SMA 905 Connector 2

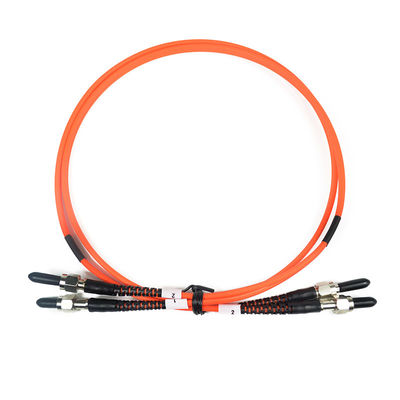

Industrial FTTH Simplex Fiber Cable Patch Cord With SMA 905 Connector 3
Connector Type
SMA 905 connector
Parameter
Specification
Core Diameter(μm)
105 200 300 400 475 600 1000
Cladding Diameter(μm)
125 220 330 440 500 660 1050
Core Material
Pure Quartz
Cladding Material
Quartz
Coating Material
Acrylate Coating
NA(Numerical Aperture )
0.20-0.37
Working Band(nm)
200-1100
Fiber Length
Customized
Operating Temperature(℃)
-40-+85
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.  With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

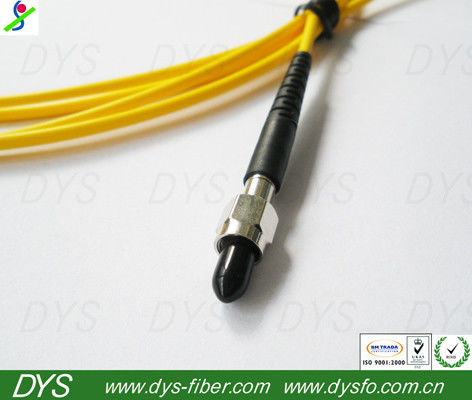

Industrial FTTH Simplex Fiber Cable Patch Cord With SMA 905 Connector 4
