· Core Count: 12
· Fiber Type: Single Mode
· Fire Rating: Flame Retardant
· Application: Mining
Description:

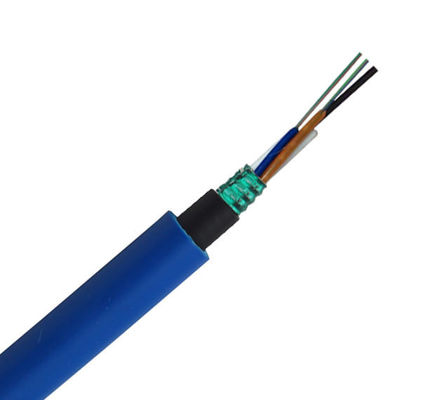

The cable contains 12 fiber cores for transmitting optical signals. The fiber type is single mode, which is suitable for long-distance and high-speed data transmission. The cable has a flame retardant rating, which provides a higher level of safety and reduces the risk of fire. Additionally, the cable is designed for use in harsh environments such as mining, and it has strong durability and resistance to interference.
No. of cable
|
|
|
2~30
|
||
Fiber Model
|
|
|
G.652D
|
||

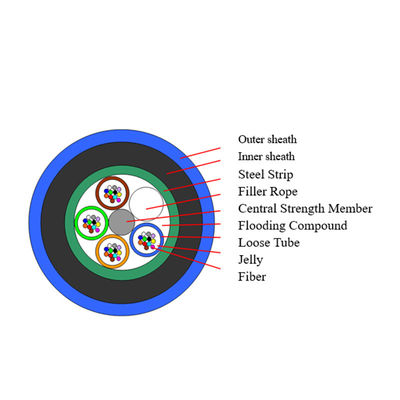

Design(StrengthMember+Tube&Filler)
|
|
|
1+5
|
||
Central Strength Member
|
Material
|
|
Steel Wire
|
||
|
Diameter(±0.05)mm
|
|
1.4
|
||
Loose Tube
|
Material
|
|
PBT
|
||
|
Diameter(±0.06)mm
|
|
1.7
|
||
|
Thickness(±0.03)mm
|
|
0.32
|
||
|
The Max.Core NO./Tube
|
|
6
|
||
Filler Rope
|
Material
|
|
LDPE
|
||
|
Colour
|
|
White
|
||
|
Diameter(±0.06)mm
|
|
1.7
|
||
Water Blocking layer(Material)
|
|
|
Flooding Compound
|
||
Armoring
|
Material
|
|
Steel Strip
|
||
|
Thickness(±0.03)mm
|
|
0.25
|
||
Inner Sheath
|
Material
|
|
MDPE
|
||
|
Thickness(±0.2)mm
|
|
1.2
|
||
Outer Sheath
|
Material
|
|
CMR
|
||
|
Thickness(±0.2)mm
|
|
1
|
||
Cable Diameter
|
|
|
10
|
||
Cable Wetght
|
|
|
105
|
||
Min. bending radius
|
|
Without Tension
|
10.0×Cable-φ
|
||
|
|
Under Maximum Tension
|
20.0×Cable-φ
|
||
Temperature range
|
|
Installation
|
-20~+60
|
||
(℃)
|
|
Transport&Storage
|
-40~+70
|
||
|
|
Operation
|
-40~+70
|
Packaging detail: 2km / export wooden drum (your request is available )
Delivery detail: 7 days
